SPEL 150KH (84628) - Snapper Walk-Behind Mower, 15hp LOOP HANDLE & CONTROLS (Traction) Parts Diagram

Walk-Behind Mower, 15hp

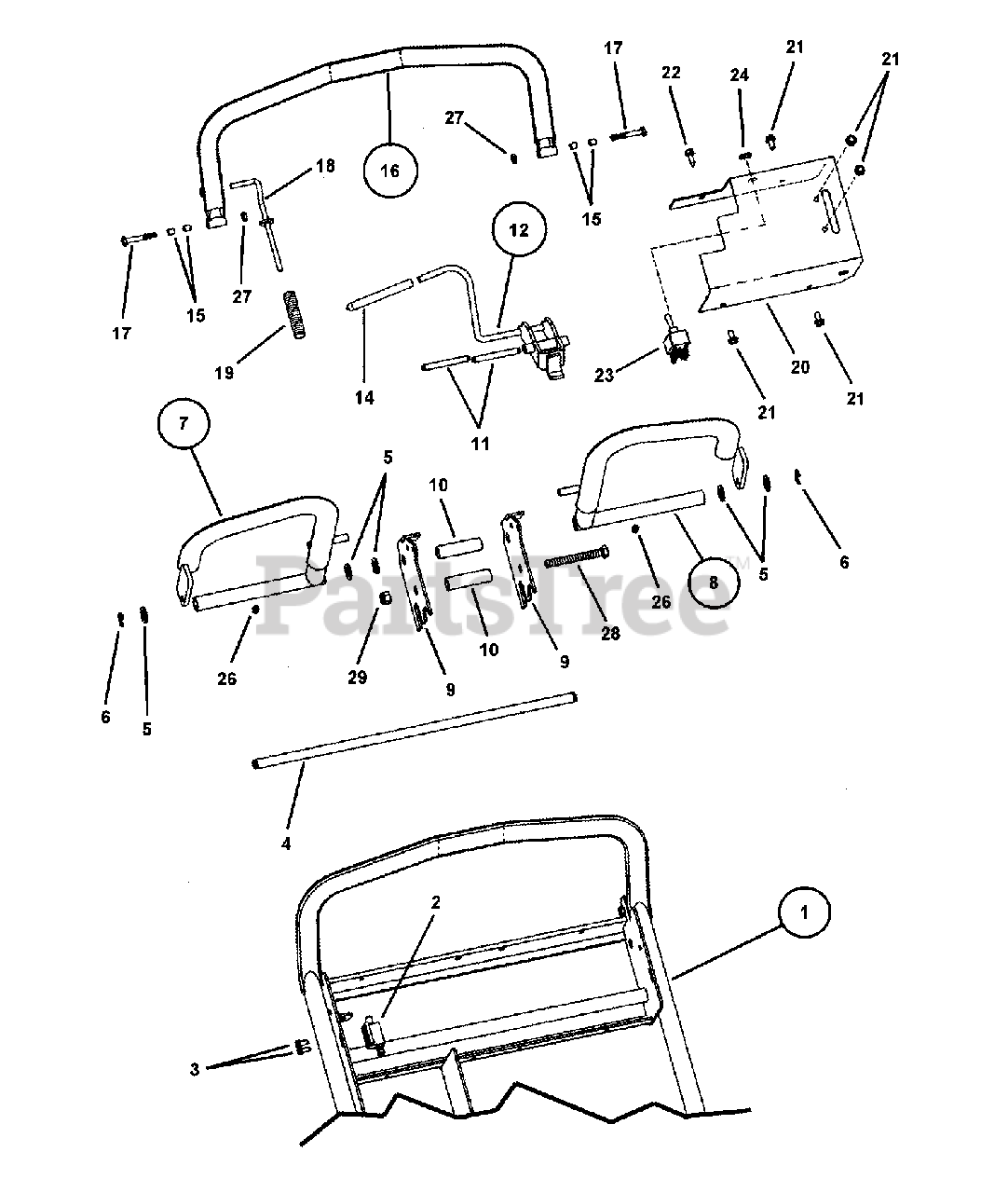

LOOP HANDLE & CONTROLS (Traction) Parts Diagram

  • Title

1

Snapper 7058842

LOOP HANDLE, Express (Weldment)
(Superseded to 7058842YP)

$387.99

$

Usually ships in 2-12 days

0

2

Snapper 7027225

SWITCH, OPC (NC)
(Superseded to 7027225YP)

$

$

Not available

3

Snapper 7077873

SCREW, #12-14 x 1/2" Hex Flange Self-Tap
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7022166

ROD, Pivot
(Superseded to 7022166YP)

$31.99

$

Usually ships in 2-12 days

0

5

Snapper 7091030

BUSHING, 1/2" Machine
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper 7014341

E-RING, 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7058847

LEVER, Traction RH (Weldment)
(Superseded to 7058847YP)

$199.99

$

Usually ships in 2-12 days

0

8

Snapper 7058848

LEVER, Traction LH (Weldment)
(Superseded to 7058848YP)

$199.99

$

Usually ships in 2-12 days

0

9

Snapper 7073311

PLATE, Neutral Latch
(Superseded to 7073311YP)

$12.99

$

Usually ships in 2-12 days

0

10

Snapper 7073315

SPACER, Neutral Latch
(Superseded to 7073315YP)

$43.99

$

Usually ships in 2-12 days

0

11

Snapper 7034803

PIN, Shoulder
(Superseded to 7034803YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7059115

LATCH, Neutral (Weldment)
(Superseded to 7059115YP)

$156.99

$

Usually ships in 2-12 days

0

13

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

Note: not shown

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7011879

VINYL GRIP, .313 Dia. x 3-3/4" long
(Superseded to 7023801YP)

$4.49

$

In Stock, Qty 6

0

15

Snapper 7028857

BEARING
(Superseded to 7028857YP)

$9.49

$

Usually ships in 2-12 days

0

16

Snapper 7041748

BAIL, Operator Presence Control (Weldment)
(Superseded to 7041748YP)

$143.99

$

Usually ships in 2-12 days

0

17

Snapper 7091003

BOLT, 1/4-20 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091003YP)

$3.49

$

In Stock, only 2 left!

0

18

Snapper 7074648

ROD, Operator Presence Control
(Superseded to 7074648YP)

$12.99

$

Usually ships in 2-12 days

0

19

Snapper 7029139

SPRING, OPC
(Superseded to 7029139YP)

$7.49

$

Usually ships in 2-12 days

0

20

Snapper 7073309

PANEL, Console LH
(Superseded to 7073309YP)

$28.99

$

Usually ships in 2-12 days

0

21

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7091686

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

23

Snapper 7029715

SWITCH, Toggle (Indak H671A)
(Superseded to 7029715YP)

$59.99

$

In Stock, only 2 left!

0

24

Snapper 7012686

NUT, 1/2-27 (Special)
(Superseded to 7012686YP)

$5.49

$

Usually ships in 2-12 days

0

25

Snapper 7029100

THROTTLE CONTROL (Kohler)
(Superseded to 7029100YP)

Note: Capro p/n 65-0808; not shown

$29.99

$

Usually ships in 2-12 days

0

26

Snapper 7076998

GREASE FITTING (1/2-28 thread)
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0

27

Snapper 7090977

NUT, 1/4-20 Hex Jam
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

28

Snapper 7027220

SCREW, 3/8-16 x 3-1/4" Hex Head Cap, GR 5
(Superseded to 703874)

$4.49

$

In Stock, only 1 left!

0

29

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0
