SPLH 140KWE (7084276) - Snapper Walk-Behind Mower, 14hp Pump And Shelf Assemblies Parts Diagram

Walk-Behind Mower, 14hp

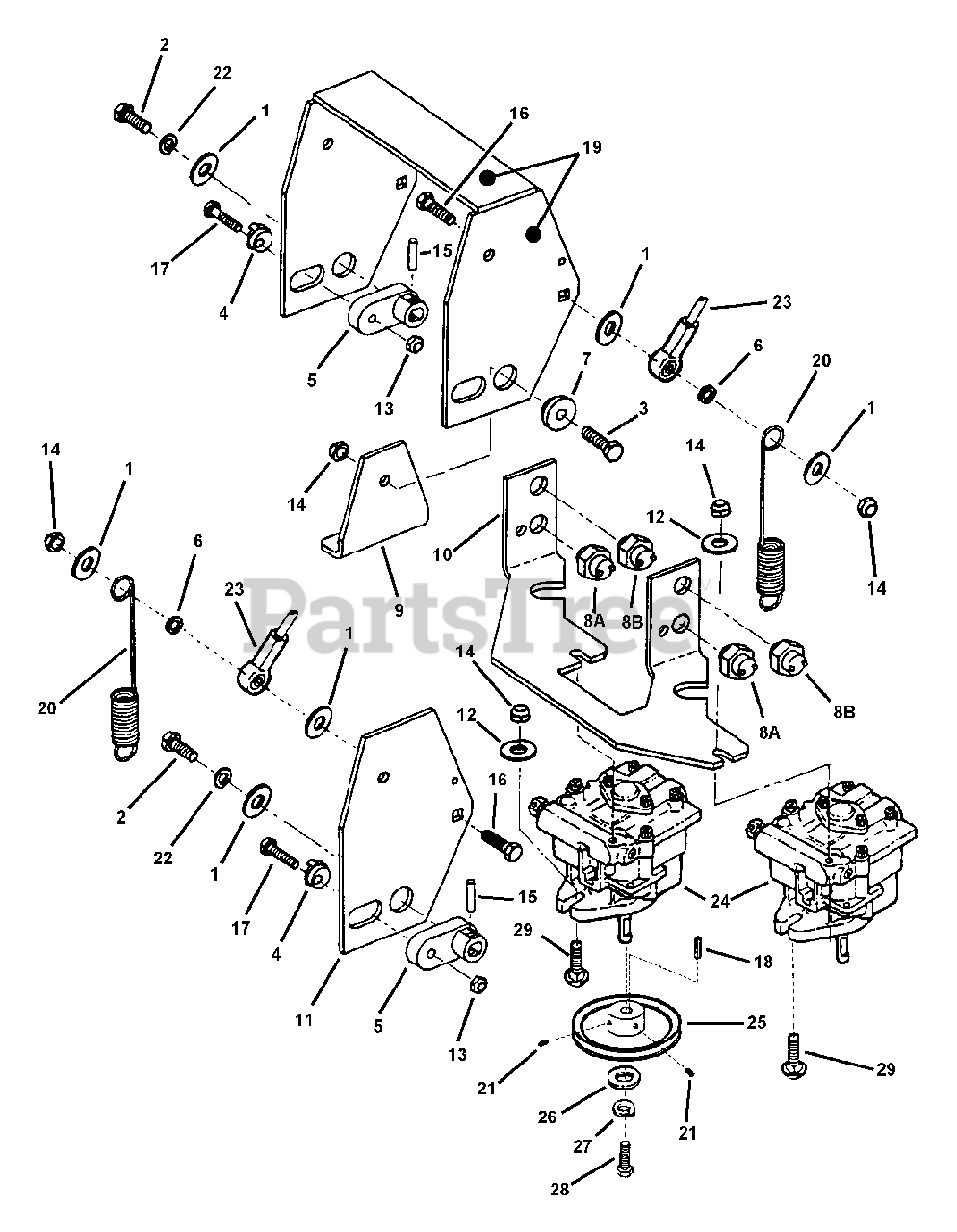

Pump And Shelf Assemblies Parts Diagram

  • Title

1

Snapper Pro 7091528

WASHER, 3/8" I.D. x 7/8" O.D. x 1/16" Flat

$

$

Not available

2

Snapper Pro 7091525

BOLT, 5/16-18 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

3

Snapper Pro 5025011X16

BOLT, 5/16-18 X 2", GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7028862

ECCENTRIC
(Superseded to 7028862YP)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7028863

ARM, Pump
(Superseded to 7028863YP)

$

$

Not available

6

Snapper Pro 7028907

BUSHING, Spring
(Superseded to 7028907YP)

$5.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7028911

BUSHING
(Superseded to 7028911YP)

$13.99

$

Usually ships in 2-12 days

0

8A

Snapper Pro 7029682

SWITCH, Transmission NO

$

$

Not available

8B

Snapper Pro 7016155

SWITCH, Transmission NC

Note: (Kohler 18HP)

$38.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7034801

BRACKET, Pivot
(Superseded to 7034801YP)

$29.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7034804

BRACKET, Switch

$

$

Not available

11

Snapper Pro 7035408

ARM, Shift, Left
(Superseded to 7035408YP)

$53.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7090122

WASHER, 3/8" Flat

Note: Was 91514

$

$

Not available

13

Snapper Pro 7091705

NUT, 1/4-20 Hex Top Lock, Grade B

$

$

Not available

14

Snapper Pro 7091706

NUT, 5/16-18 Hex Top Lock, Grade B
(Superseded to 7091706SM)

$3.99

$

In Stock, only 2 left!

0

15

Snapper Pro 7091721

PIN, 5mm x 25mm Roll

$2.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

17

Snapper Pro 7090825

SCREW, 1/4-20 x 1-1/4", Grade 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 7027199

KEY, 5mm x 25mm
(Superseded to 7027199YP)

$3.99

$

In Stock, Qty 6

0

19

Snapper Pro 7041759

CRANK (Weldment)
(Superseded to 7041759YP)

$176.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7072579

SPRING, Traction Control
(Superseded to 7072579YP)

$19.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7076956

SET SCREW, 5/16-18 x 3/8" Knurled Cup

$2.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Snapper Pro 7027139

LINKAGE

$

$

Currently unavailable

24

Snapper Pro 7027127

PUMP, Hydraulic

$1054.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7027131

PULLEY, 5-1/2"
(Superseded to 7027131YP)

$182.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 7091627

WASHER, 1/4" I.D. x 1" O.D. x 1/8" Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

27

Snapper Pro 7027223

WASHER, 1/4" I.D. Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ

$2.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 7027181

BOLT, 3/8-16 x 1-1/4" Short Square Neck, Grade 5

$

$

Not available
