SPLH 153KW (7082435) - Snapper Walk-Behind Mower, 15hp OIL TANK ASSEMBLY Parts Diagram

Walk-Behind Mower, 15hp

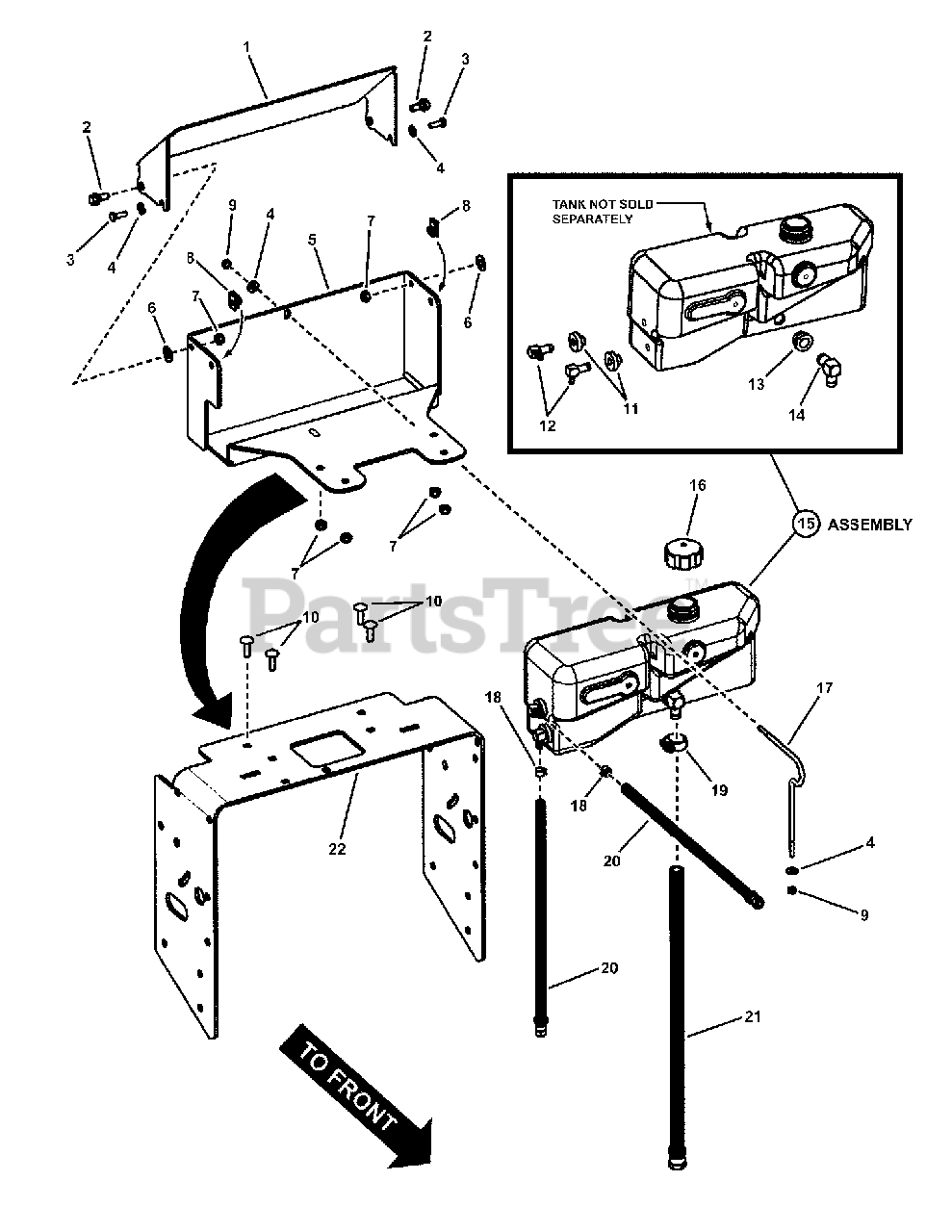

OIL TANK ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7072899

COVER, Oil Tank Bracket
(Superseded to 7072899YP)

$52.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7015761

SHOULDER BOLT, 5/16-18

$5.49

$

In Stock, only 2 left!

0

3

Snapper Pro 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
(Superseded to 703925)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 7091294

WASHER, .28 x .63 x .06 Flat

$

$

Not available

5

Snapper Pro 7072895

BRACKET, Reservoir, Hydro
(Superseded to 7072895YP)

$285.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7011079

WASHER, 3/8" Curved
(Superseded to 7011079YP)

$5.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7023295

U-NUT 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 7091705

NUT, 1/4-20 Hex Top Lock, GR B

$

$

Not available

10

Snapper Pro 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR 5

$

$

Not available

11

GROMMET

Note: Dapco p/n 10672

$

$

Not available

12

*ELBOW

Note: Dapco p/n 11021

$

$

Not available

13

GROMMET

Note: Dapco p/n 12078

$

$

Not available

14

Snapper Pro 7073238

*ELBOW
(Superseded to 7073238YP)

Note: Dapco p/n 12183

$27.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7058610

OIL TANK (Includes Cap)
(Superseded to 7058610YP)

$442.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7035512

CAP, Oil Tank, Vented

$

$

Not available

17

Snapper Pro 7072896

RETAINING ROD, Reservoir (1/4-20 threads)
(Superseded to 7072896YP)

$26.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7012222

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 11

0

19

Snapper Pro 7016130

CLAMP, 13/16" Hose
(Superseded to 7016130YP)

$4.49

$

In Stock, only 1 left!

0

20

Snapper Pro 7078029

HOSE, Return, 15-1/4" (7/16-20 Fitting on One End)
(Superseded to 7078029YP)

$41.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7072897

HOSE, 1/2 x 19-1/2" Supply (3/4-16 Fitting on One End)

$

$

Not available

22

Snapper Pro 7042584

WELDMENT, Tank Bracket- Hydro
(Superseded to 7042584YP)

$322.99

$

Usually ships in 2-12 days

0
