SPLH 153KW (84235) - Snapper Walk-Behind Mower, 15hp LOOP HANDLE & CONTROL ASSEMBLIES Parts Diagram

Walk-Behind Mower, 15hp

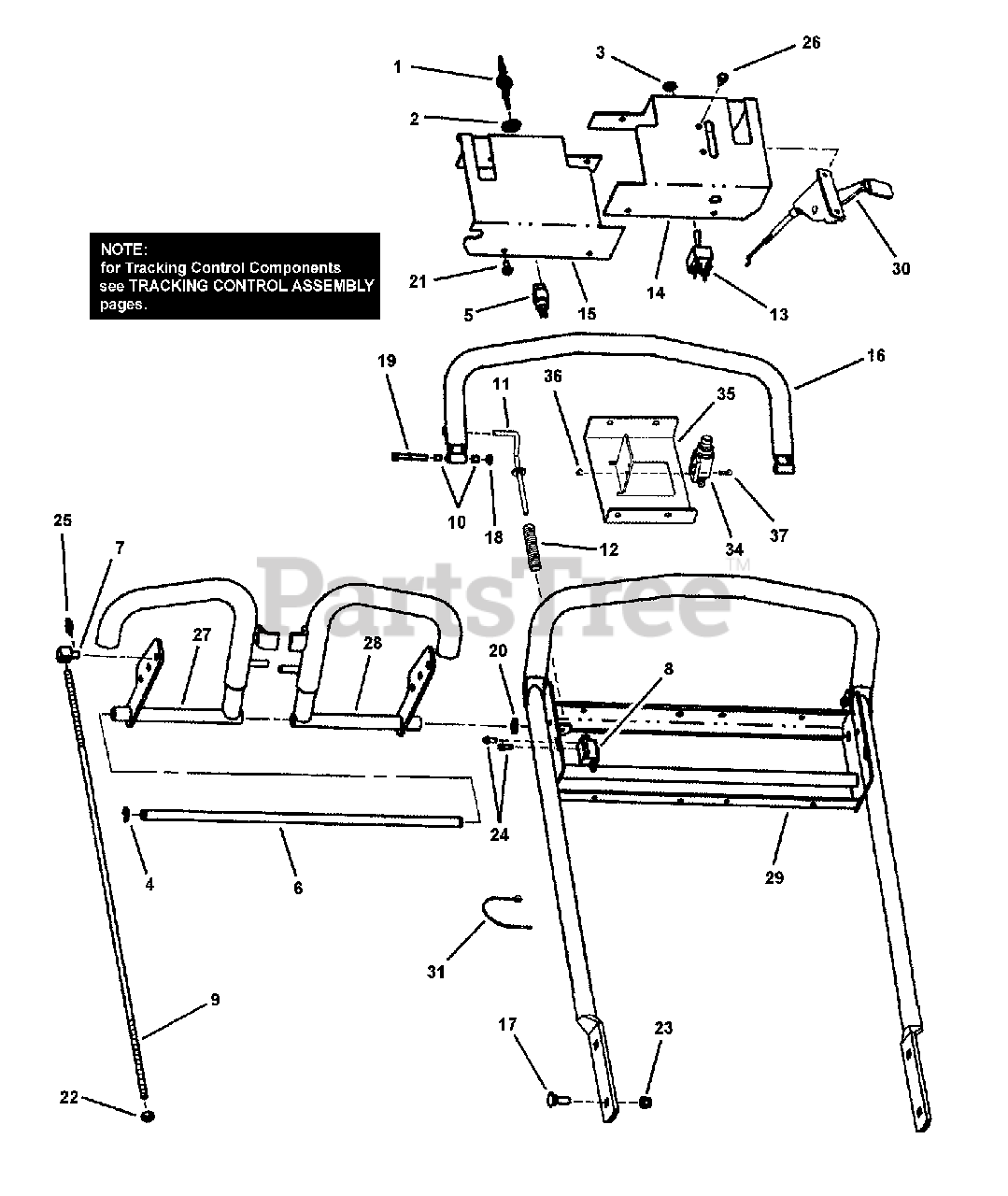

LOOP HANDLE & CONTROL ASSEMBLIES Parts Diagram

  • Title

1

Snapper 7011138

IGNITION KEY, Pair
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 8

0

2

Snapper 7012685

NUT, 5/8-32 Hex (Ignition Switch)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7012686

NUT, 1/2-27 Hex (Special)
(Superseded to 7012686YP)

$5.49

$

Usually ships in 2-12 days

0

4

Snapper 7014341

RETAINING RING
(Superseded to 703976)

Note: Truarc #5133-50

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7017817

SWITCH, Ignition, 2-Pole, Recoil Start
(Superseded to 7017817YP)

$31.99

$

In Stock, only 2 left!

0

6

Snapper 7022166

ROD, Pivot, 1/2" Dia. x 18.542 w/2 retaining Ring Grooves
(Superseded to 7022166YP)

$31.99

$

Usually ships in 2-12 days

0

7

Snapper 7027141

SWIVEL
(Superseded to 7027141YP)

$18.99

$

Usually ships in 2-12 days

0

8

Snapper 7027225

SWITCH, OPC, Single Pole (NC)
(Superseded to 7027225YP)

$

$

Not available

9

Snapper 7028856

CONTROL ROD, Traction (5/16-24 threads)
(Superseded to 7028856YP)

$18.99

$

In Stock, only 1 left!

0

10

Snapper 7028857

BEARING, Nyliner
(Superseded to 7028857YP)

$9.49

$

Usually ships in 2-12 days

0

11

Snapper 7074648

ROD, Operator Presence Control
(Superseded to 7074648YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7029139

SPRING, OPC- Loop Handle
(Superseded to 7029139YP)

$7.49

$

Usually ships in 2-12 days

0

13

Snapper 7029715

SWITCH, Toggle
(Superseded to 7029715YP)

$59.99

$

In Stock, only 2 left!

0

14

Snapper 7034827

PANEL, Left
(Superseded to 7034827YP)

$37.99

$

Usually ships in 2-12 days

0

15

Snapper 7034828

PANEL, Right
(Superseded to 7034828YP)

$37.99

$

Usually ships in 2-12 days

0

16

Snapper 7041748

BAIL, Operator Presence Control (Weldment)
(Superseded to 7041748YP)

$143.99

$

Usually ships in 2-12 days

0

17

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

18

Snapper 7090977

NUT, 1/4-20 Hex Jam
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

19

Snapper 7091003

BOLT, 1/4-20 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091003YP)

Note: was 7091222

$3.49

$

In Stock, only 2 left!

0

20

Snapper 7091030

BUSHING, 1/2" Machine
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7091297

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

24

Snapper 7077873

SCREW, #12-14 x 1/2" Hex Flange Self-Tap
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7091594

COTTER PIN, 1/2" Self-Locking
(Superseded to 7091594SM)

$2.99

$

In Stock, only 1 left!

0

26

Snapper 7091686

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

27

Snapper 7034820

WELDMENT, Traction Lever, RH

$

$

Not available

28

Snapper 7034821

WELDMENT, Traction Lever, LH

$

$

Not available

29

Snapper 7043869

HANDLE, Loop (Weldment)

$

$

Not available

30

Snapper 7072597

THROTTLE CONTROL, 51.50/0.90
(Superseded to 7072597YP)

$38.99

$

Usually ships in 2-12 days

0

31

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7073118

*WIRE HARNESS
(Superseded to 7073118YP)

Note: not shown

$86.99

$

Usually ships in 2-12 days

0

33

Snapper 7074852

*HARNESS, Wiring Pigtail
(Superseded to 7074852YP)

Note: not shown

$10.99

$

Usually ships in 2-12 days

0

34

Snapper 7073141

SWITCH, Interlock, Sealed (NC)
(Superseded to 7073141YP)

$35.99

$

Usually ships in 2-12 days

0

35

Snapper 7073139

BRACKET, Interlock Switch
(Superseded to 7073139YP)

$17.99

$

Usually ships in 2-12 days

0

36

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Machine
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0
