SPLH 160BV (80914) - Snapper Walk-Behind Mower, 16hp Caster, Wheel & Tire Assembly Parts Diagram

Walk-Behind Mower, 16hp

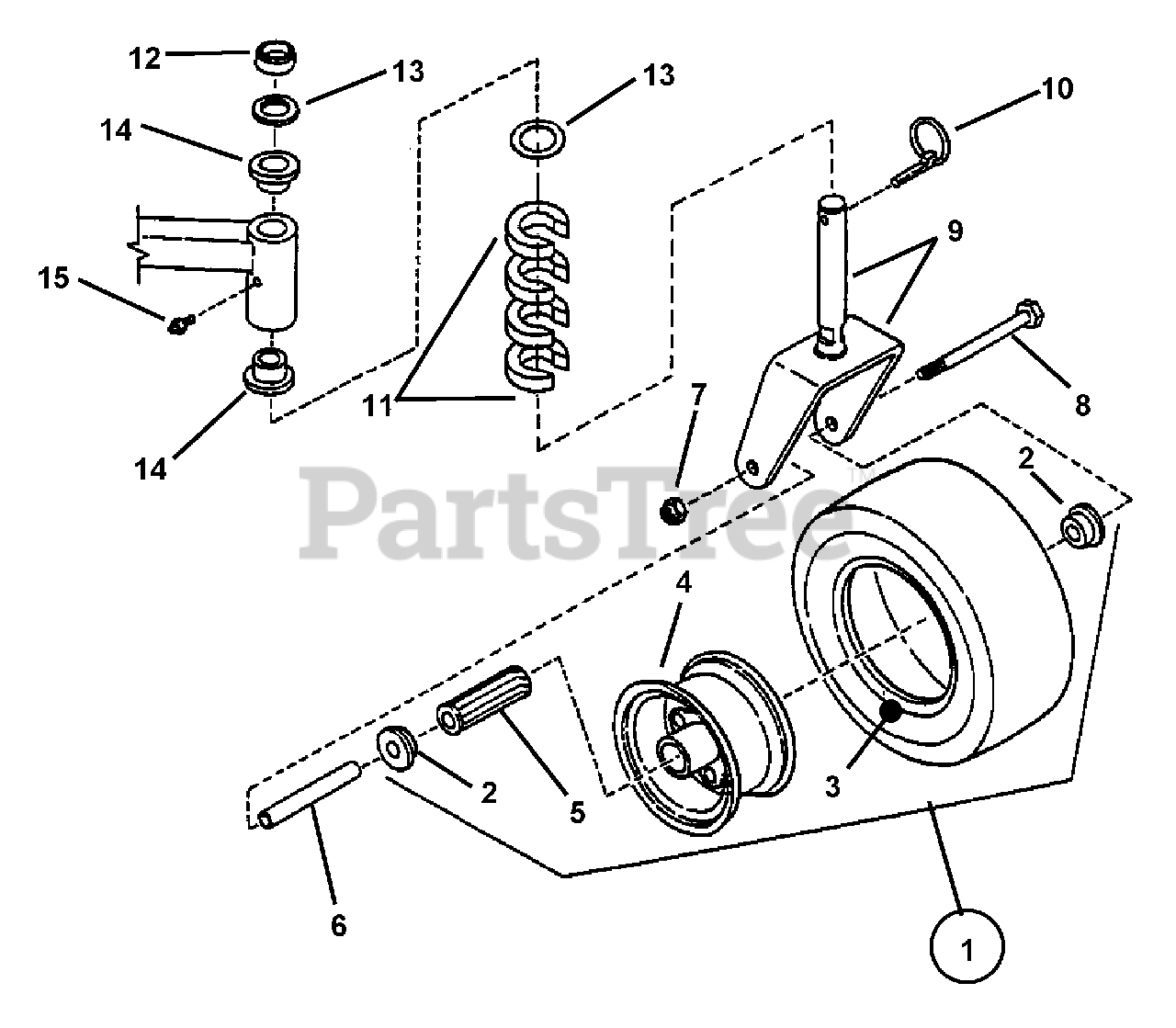

Caster, Wheel & Tire Assembly Parts Diagram

  • Title

1

Snapper 7058167

ASSEMBLY, Wheel & Tire
(Superseded to 7058167YP)

Note: Was 29869 (Includes Items 2 Thru 5)

$120.99

$

In Stock, only 1 left!

0

2

Snapper 7022394

RETAINER, Flanged
(Superseded to 7022394YP)

$8.99

$

In Stock, Qty 11

0

3

Snapper 7029870

TIRE, 9 x 3.50 - 4
(Superseded to 7029870YP)

$57.99

$

Usually ships in 2-12 days

0

4

Snapper 7057737

ASSEMBLY, Wheel
(Superseded to 7057737YP)

Note: Was 29871 (Includes Items 2 & 5)

$85.99

$

In Stock, only 1 left!

0

5

Snapper 7022395

BEARING, Roller
(Superseded to 7022395YP)

$18.99

$

In Stock, only 2 left!

0

6

Snapper 7022151

SLEEVE, Axle
(Superseded to 7022151YP)

$43.99

$

In Stock, only 4 left!

0

7

Snapper 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 5025017X44

BOLT, 1/2-13 X 5-1/2" GD5 YZ
(Superseded to 5025017X44SM)

Note: Was 91123

$7.99

$

In Stock, only 1 left!

0

9

Snapper 7054464

YOKE, Caster Weldment
(Superseded to 7054464BMYP)

Note: Was 42780

$222.99

$

In Stock, only 2 left!

0

10

Snapper 7017711

PIN, Lynch 7/16" Heavy Duty
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

11

Snapper 7019152

SPACER
(Superseded to 7019152YP)

$7.49

$

In Stock, Qty 12

0

12

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

13

Snapper 7023747

BUSHING, 1"
(Superseded to 7023747YP)

$5.49

$

In Stock, only 3 left!

0

14

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, only 4 left!

0

15

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0
