SPLH 160BV (80914) - Snapper Walk-Behind Mower, 16hp Fuel Tank Assembly Parts Diagram

Walk-Behind Mower, 16hp

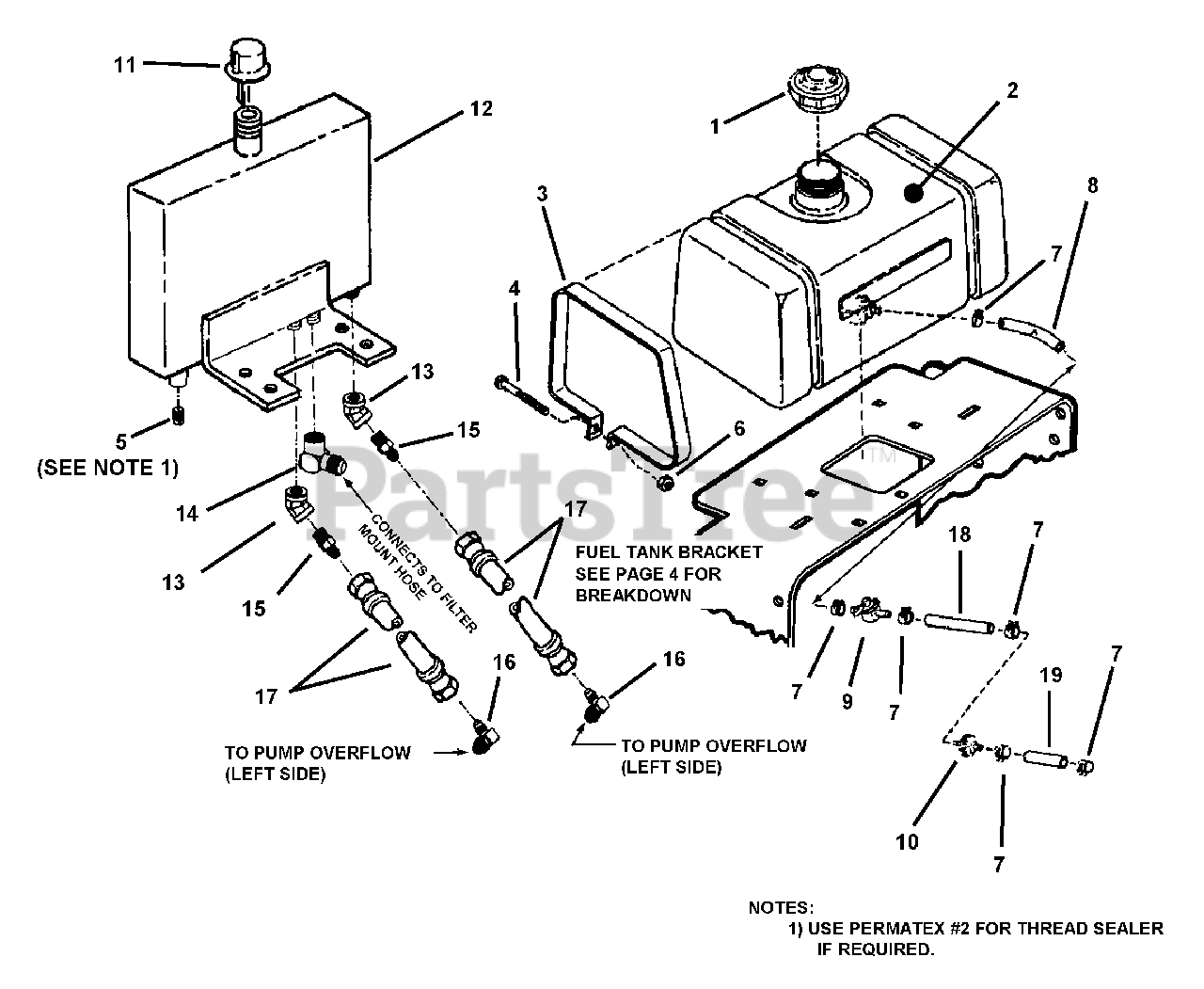

Fuel Tank Assembly Parts Diagram

  • Title

1

Snapper 7028903

CAP, Fuel
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 5

0

2

Snapper 7044639

TANK, Fuel

Note: Was 28899 (Includes Item 1)

$

$

Not available

3

Snapper 7034923

STRAP, Fuel Tank
(Superseded to 7034923YP)

$37.99

$

Usually ships in 2-12 days

0

4

Snapper 7091052

SCREW, #10-24 x 2" Pan Head
(Superseded to 7091052YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7029039

PLUG, 1/4 NPTM Pipe
(Superseded to 7029039YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7090594

NUT, #10-24 Nyloc
(Superseded to 7090594YP)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

Note: Was 12222 (6 ea. Kawasaki) (4 ea. Kohler 14HP; 4 ea. Kohler 18HP & Briggs)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7032956

HOSE, Fuel, 10" Long
(Superseded to 7032956YP)

Note: (Trim to suit); (Kohler 14HP & Briggs 16HP)

$

$

Not available

Snapper 7024055

HOSE, Fuel 6-1/2" Long
(Superseded to 7024055YP)

Note: (Kohler 18HP)

$5.49

$

Usually ships in 2-12 days

0

Snapper 7076272

HOSE, Fuel 8-1/2"
(Superseded to 791766)

Note: (Kawasaki 4HP)

$7.99

$

In Stock, Qty 20+

0

9

Snapper 7016325

VALVE, Fuel Shut-Off
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 12

0

10

Snapper 7014359

FILTER, Fuel In-Line
(Superseded to 394358S)

Note: (Kawasaki Only)

$5.99

$

In Stock, Qty 20+

0

11

Snapper 7026945

CAP, Hydraulic
(Superseded to 7026945YP)

$33.99

$

Usually ships in 2-12 days

0

12

Snapper 7028972

TANK, Reservoir
(Superseded to 7028972YP)

$655.99

$

Usually ships in 2-12 days

0

13

Snapper 7029159

FITTING, 45 Degree 1/4 FPT Elbow
(Superseded to 7029159YP)

$24.99

$

Usually ships in 2-12 days

0

14

Snapper 7027115

FITTING, 90 Degree
(Superseded to 7027115YP)

$19.99

$

Usually ships in 2-12 days

0

15

Snapper 7027104

FITTING, Straight 1/4
(Superseded to 7027104YP)

$5.49

$

Usually ships in 2-12 days

0

16

Snapper 7027111

FITTING, 90 Degree O-Ring

$

$

Not available

17

Snapper 7028912

HOSE, 10-1/2" Hydraulic
(Superseded to 7028912YP)

$23.99

$

Usually ships in 2-12 days

0

18

Snapper 7032956

HOSE, Fuel, 10"
(Superseded to 7032956YP)

Note: (Kawasaki 14HP, Kohler 14HP & Briggs 16HP)

$

$

Not available

Snapper 7077351

HOSE, Fuel, 3-1/2"
(Superseded to 791766)

Note: (Kohler 18HP)

$7.99

$

In Stock, Qty 20+

0

19

Snapper 7077351

HOSE, Fuel, 3-1/2"
(Superseded to 791766)

Note: (Kawasaki 14HP)

$7.99

$

In Stock, Qty 20+

0
