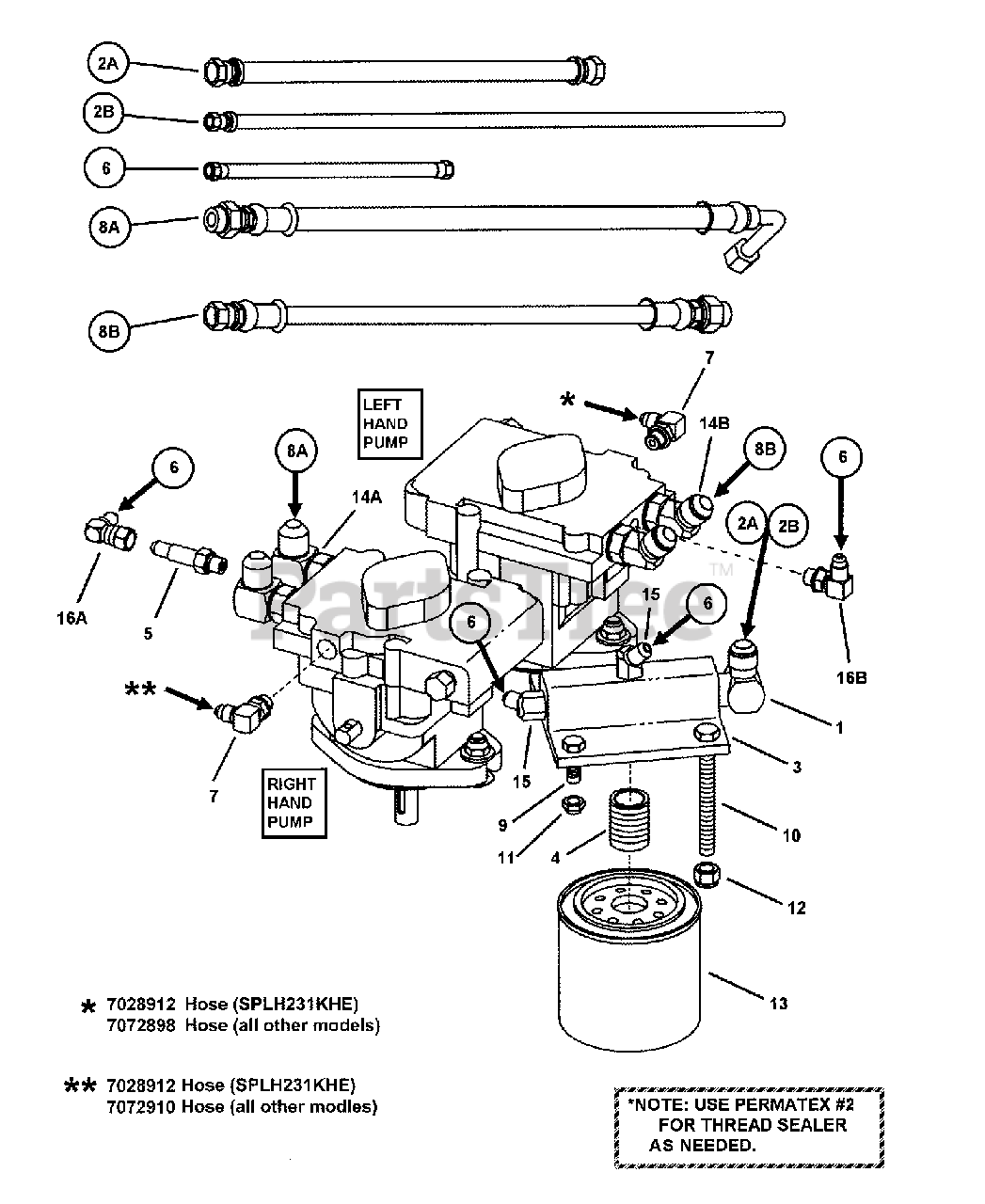

SPLH 221KHE (84398) - Snapper Walk-Behind Mower, 22hp HOSE ASSEMBLY Parts Diagram

Walk-Behind Mower, 22hp

HOSE ASSEMBLY Parts Diagram

  • Title

1

Snapper 7027106

FITTING, External 90 Degree w/37 Degree Flare
(Superseded to 7027106YP)

Note: 1/2-14 & 3/4-16 Threads

$20.99

$

Usually ships in 2-12 days

0

2A

Snapper 7027118

HOSE, 1/2 x 16-1/2" Long (3/4-16 Female Thread, Both Ends)

Note: used on SPLH231KHE only

$

$

Not available

2B

Snapper 7072898

HOSE, 1/2 x 16-1/2" Long (7/16-20 Thread)

Note: used on All Other models

$

$

Not available

3

Snapper 7027165

MOUNT, Oil Filter
(Superseded to 7027123YP)

$107.99

$

Usually ships in 2-12 days

0

4

Snapper 7027200

FITTING, 7/16-20 Straight

Note: (Right Side Pump Only)

$

$

Currently unavailable

5

Snapper 7027108

FITTING, 7/16-20 Straight w/"O"-Ring
(Superseded to 7027108YP)

Note: (Right Side Pump Only)

$41.99

$

Usually ships in 2-12 days

0

6

Snapper 7028912

HOSE, 10-1/2" Long (7/16-20 Female Thread)
(Superseded to 7028912YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 7027111

FITTING, 90 Degree- "O"-Ring Boss

$

$

Not available

8A

Snapper 7027120

HOSE, Pump/Motor High Pressure, 24-1/2"
(Superseded to 7027120YP)

Note: (Right Side Pump Only)

$128.99

$

Usually ships in 2-12 days

0

8B

Snapper 7029058

HOSE, Pump/Motor, High Pressure 21-1/2"
(Superseded to 7029058YP)

Note: (Left Side Pump Only)

$127.99

$

Usually ships in 2-12 days

0

9

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7027221

BOLT, 3/8-16 x 3-1/2" Hex Head, GR 5
(Superseded to 7027221YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

In Stock, only 1 left!

0

12

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

13

Snapper 7027164

OIL FILTER
(Superseded to 7027164YP)

$

$

Not available

14A

Snapper 7027112

FITTING, 90 Degree w/"O"-Ring Boss
(Superseded to 7027112YP)

Note: (Right Side Pump Only)

$26.99

$

Usually ships in 2-12 days

0

14B

Snapper 7027113

FITTING, 45 Degree w/SAE "0"-Ring Boss
(Superseded to 7027113YP)

Note: (Left Side Pump Only)

$28.99

$

In Stock, only 1 left!

0

15

Snapper 7027105

FITTING, External 45 Degree w/37 Degree Flare
(Superseded to 7027105YP)

$19.99

$

Usually ships in 2-12 days

0

16A

Snapper 7027109

FITTING, 90 Degree w/37 Degree Swivel

Note: (Right Side Pump Only)

$

$

Not available

16B

Snapper 7027110

FITTING, 90 Degree w/"O"-Ring Boss
(Superseded to 7027110YP)

Note: (Left Side Pump Only)

$11.99

$

Usually ships in 2-12 days

0
