SPLH 231KHE (84618) - Snapper Walk-Behind Mower, 23hp PUMP AND SHELF ASSEMBLIES Parts Diagram

Walk-Behind Mower, 23hp

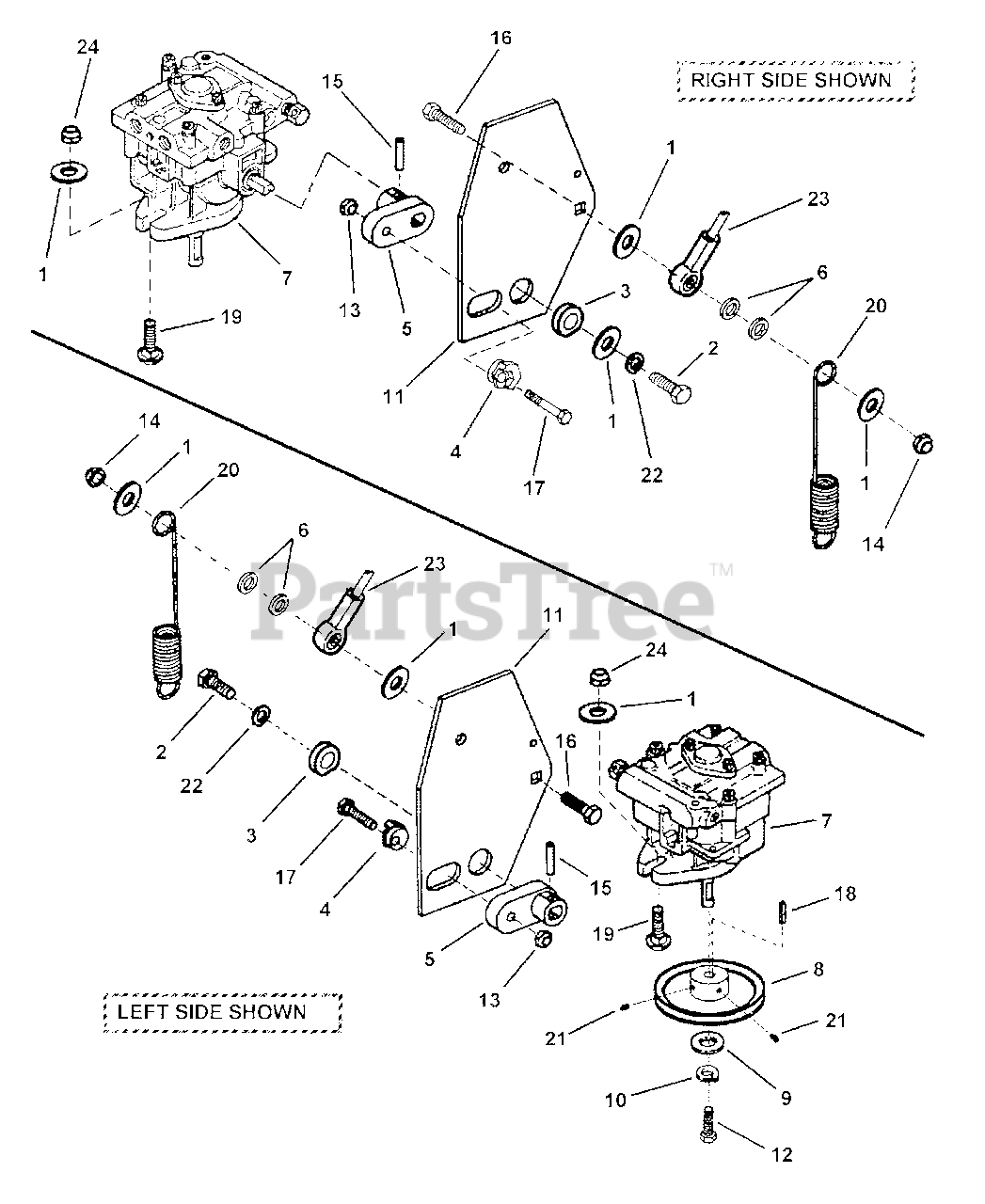

PUMP AND SHELF ASSEMBLIES Parts Diagram

  • Title

1

Snapper 7091528

WASHER, 3/8" I.D. x 7/8" O.D. x 1/16" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

3

Snapper 7029000

SPACER, Blade Hub
(Superseded to 7029000YP)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 7028862

ECCENTRIC
(Superseded to 7028862YP)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 7028863

ARM, Pump
(Superseded to 7028863YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7028907

BUSHING, Spring
(Superseded to 7028907YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7027127

HYDRAULIC PUMP
(Superseded to 7027127YP)

$1071.99

$

Usually ships in 2-12 days

0

8

Snapper 7027131

PULLEY, 5.5 w/Set Screws
(Superseded to 7027131YP)

Note: Includes two 1/4-20 set screws

$134.99

$

Usually ships in 2-12 days

0

9

Snapper 7091627

WASHER, 1/4" Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

10

Snapper 7027223

WASHER, 1/4" I.D. Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7072893

SHIFT ARM, Pump
(Superseded to 7072893YP)

$32.99

$

Usually ships in 2-12 days

0

12

Snapper 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ
(Superseded to 7091835YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7091705

NUT, 1/4-20 Hex Top Lock, GR B
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR 5 or B
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

15

Snapper 7091721

ROLL PIN, 5mm x 25mm
(Superseded to 7091721YP)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

17

Snapper 7090825

SCREW, 1/4-20 x 1-1/4, Hex Head Cap, GR 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7027199

KEY, M5 x M20
(Superseded to 7027199YP)

$3.49

$

In Stock, Qty 5

0

19

Snapper 7027181

BOLT, 3/8-16 x 1-1/4" Short Neck Carriage, GR 5

$

$

Not available

20

Snapper 7072579

SPRING, Hydro
(Superseded to 7072579YP)

$14.99

$

Usually ships in 2-12 days

0

21

Snapper 5025283X3

SET SCREW, 1/4-20 X 3/8" CONE

$2.49

$

Usually ships in 2-12 days

0

22

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7027139

ROD END, Pump Control Linkage (5/16-24 thread)
(Superseded to 7027139YP)

$18.99

$

Usually ships in 2-12 days

0

24

Snapper 5025046

NUT, 3/8-16, HEX TOP LOCK
(Superseded to 5025046SM)

$3.49

$

In Stock, Qty 6

0
