SPS 322T (80630) - Snapper Sprayer, 3hp Sprayer Assembly Parts Diagram

Sprayer, 3hp

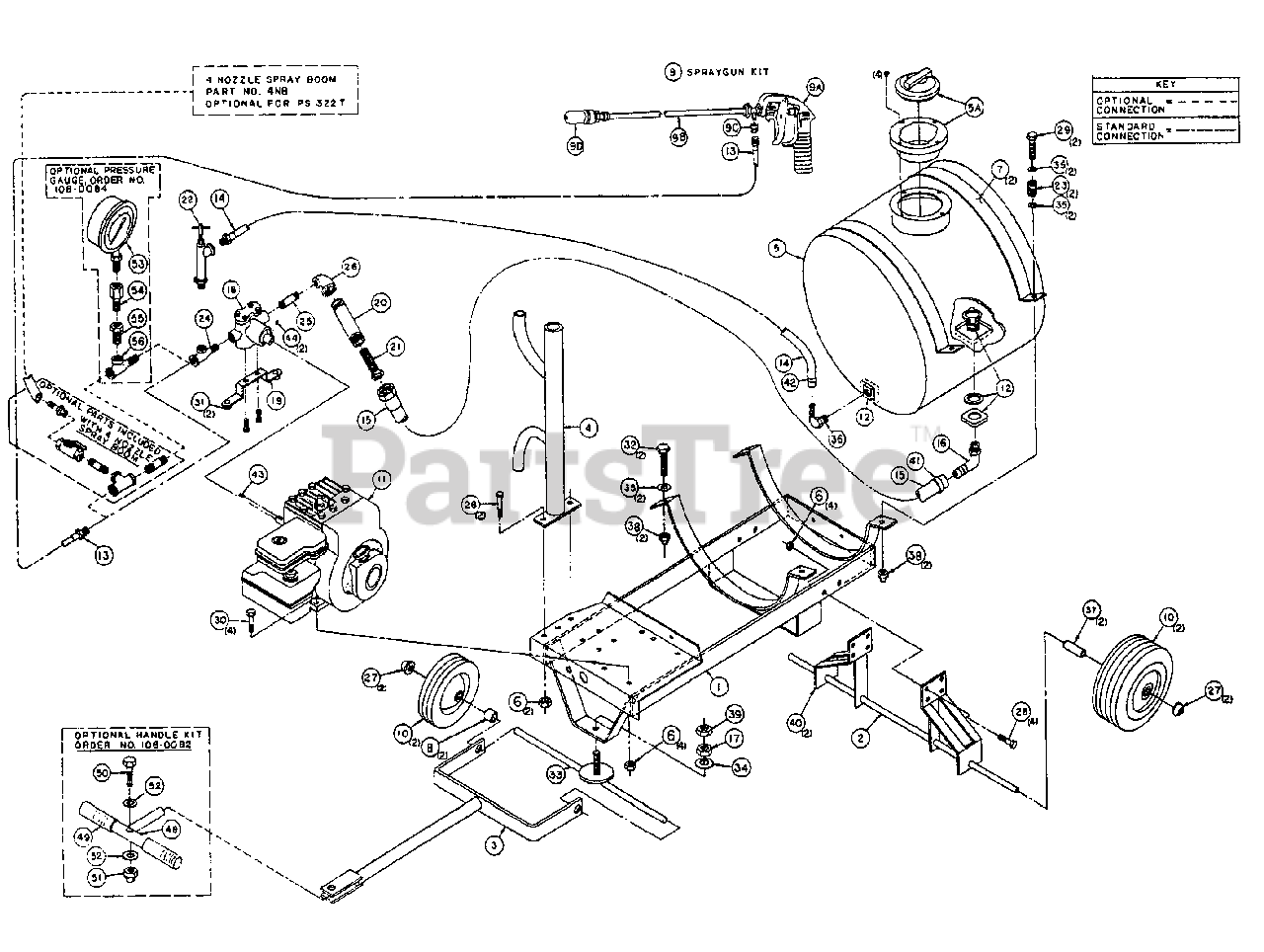

Sprayer Assembly Parts Diagram

  • Title

$

$

Currently unavailable

2

Snapper 10800431

Rear Axle

$

$

Currently unavailable

3

Snapper 9080029

Tow Hitch

$

$

Currently unavailable

4

Snapper 1080025

Hose Rack

$

$

Currently unavailable

5

Snapper 1000221

22 Gallon Tank

Note: (Includes lid)

$

$

Currently unavailable

5A

Snapper 1080090

Tank Lid & Ring

$

$

Currently unavailable

6

Snapper 0900048

5/16-18 Gripco Locknuts

$

$

Currently unavailable

7

Snapper 1000003

Tank Band

$

$

Currently unavailable

8

Snapper 5000012P

Front Wheel Spacer

$

$

Currently unavailable

9

Snapper 1000120

Spray Gun Kit

$

$

Currently unavailable

9A

Snapper 1000101

Spray Gun

$

$

Currently unavailable

9B

Snapper 1000102

Spray Gun Extension

$

$

Currently unavailable

9C

Snapper 1000103

Inlet Adapter

$

$

Currently unavailable

9D

Snapper 1000104

Cone Jet

$

$

Currently unavailable

10

Snapper 7030012

10" Wheel

$

$

Currently unavailable

11

* ENGINE, 3HP (Pt. # 1080019)

$

$

Not available

12

Snapper 1000031

Bulk Head Fitting

$

$

Currently unavailable

13

Snapper 1000112

25' Spray Hose

$

$

Currently unavailable

14

Snapper 1080088

Return Hose 27 1/2" lg

$

$

Currently unavailable

15

Snapper 1080064

Suction Hose 18" lg

$

$

Currently unavailable

16

Snapper 1000032

Nylon Elbow

$

$

Currently unavailable

17

Snapper 0900210

5/8-11 Hex Nut

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Snapper 1080068

Torque Arm

$

$

Currently unavailable

20

Snapper 1000029

Strainer Nipple

$

$

Currently unavailable

21

Snapper 1000030

Strainer

$

$

Currently unavailable

22

Snapper 1000094

Pressure Relief Valve

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Snapper 1000135

1/2" Service Tee

$

$

Currently unavailable

25

Snapper 0800365

1/2" x 2" Pipe Nipple

$

$

Currently unavailable

26

Snapper 1000011

3/4" x 1/2" Reducing Elbow

$

$

Currently unavailable

27

Snapper 0900457

Push Nut Cap

$

$

Currently unavailable

28

Snapper 0900088

5/16-18 x 1, HHCS

$

$

Currently unavailable

29

Snapper 0900079

5/16-18 x 2 1/2" HH Tap Bolt

$

$

Currently unavailable

30

Snapper 0900090

5/16-18 x 1-1/2" HHCS

$

$

Currently unavailable

31

Snapper 0800831

Rubber Bumper

$

$

Currently unavailable

32

Snapper 0900078

5/16-18 x 2" HH Tap Bolt

$

$

Currently unavailable

33

Snapper 9080032

Front Axle

$

$

Currently unavailable

34

Snapper 0900236

5/8" Flatwasher

$

$

Currently unavailable

35

Snapper 0900233

5/16" Flatwasher

$

$

Currently unavailable

36

Snapper 1000088

Nylon Elbow

$

$

Currently unavailable

37

Snapper 70500192

2 1/4" Lg Spacer

$

$

Currently unavailable

38

Snapper 0900032

5/16-18 Flex Locknut

$

$

Currently unavailable

39

Snapper 0900442

5/8-11 Hex Half Nut

$

$

Currently unavailable

40

Snapper 9080060

Axle Bracket

$

$

Currently unavailable

41

Snapper 1000140

1/2" Hose Clamp

$

$

Currently unavailable

42

Snapper 1000139

3/8" Hose Clamp

$

$

Currently unavailable

43

Snapper 1080023

1/8" x 3/16" x 1" Shaft Key

$

$

Currently unavailable

44

Snapper 0800050

1/4-28 x 1/4" Set Screw

$

$

Currently unavailable

Optional Items

$

$

Not available

48

Snapper 9080030

Pull Handle

$

$

Currently unavailable

49

Snapper 5000041

Handle Grip

$

$

Currently unavailable

50

Snapper 0900112

3/8-16 x 1 1/2" HHCS

$

$

Currently unavailable

51

Snapper 0900033

3/8" Flex Locknut

$

$

Currently unavailable

52

Snapper 0900234

3/8" Flatwasher

$

$

Currently unavailable

53

Snapper 1000081

Pressure Gauge

$

$

Currently unavailable

54

Snapper 1000136

Gauge Damper

$

$

Currently unavailable

55

Snapper 0800021

1/2" x 3/8" Bushing

$

$

Currently unavailable

56

Snapper 1000135

1/2" Service Tee

$

$

Currently unavailable
