SPV 211E (7800170) - Snapper 21" Walk-Behind Mower, 6.5hp TRANSMISSION Parts Diagram

21" Walk-Behind Mower, 6.5hp

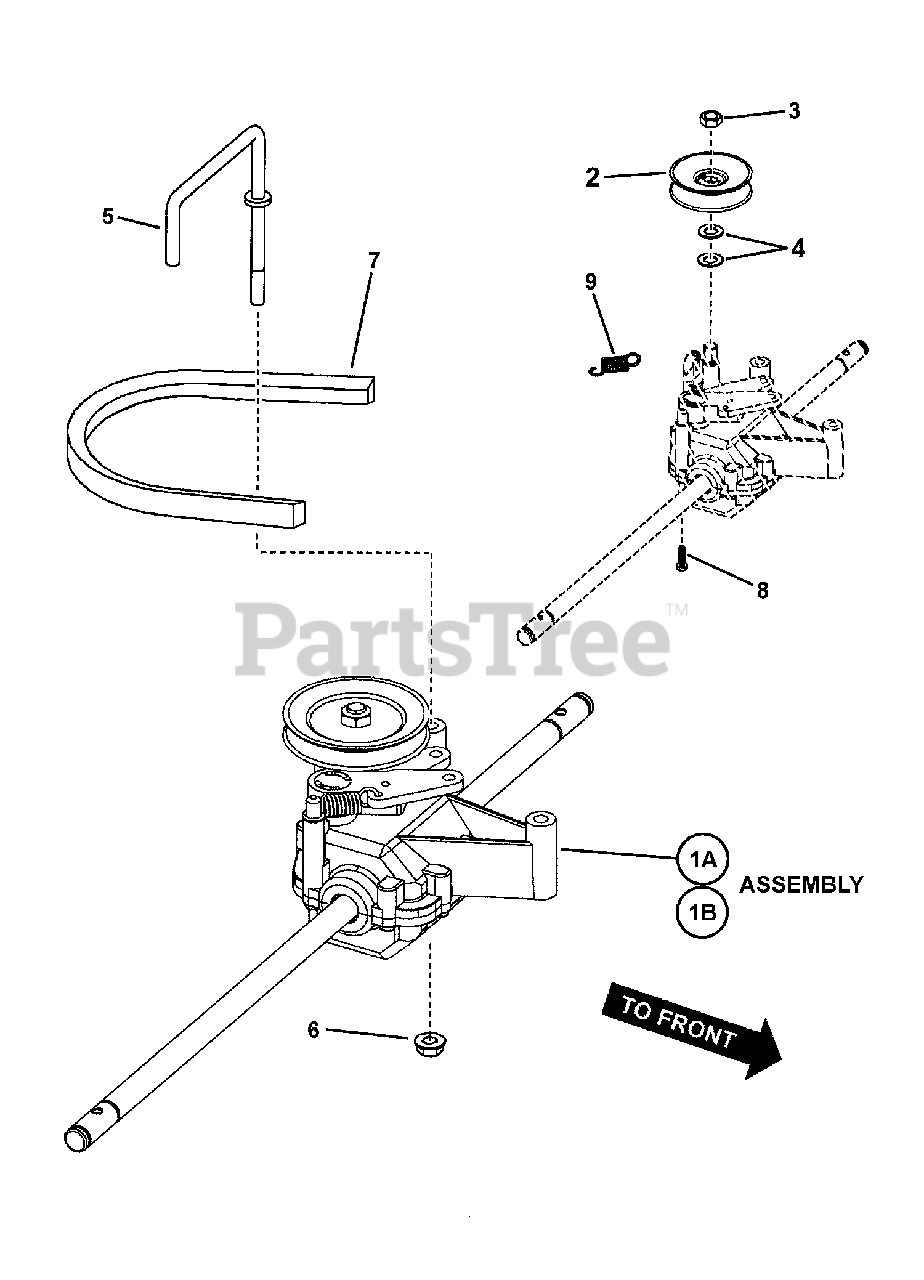

TRANSMISSION Parts Diagram

  • Title

1A

Snapper 7500040

TRANSMISSION, LC Walk, Single Speed

Note: includes pulley (7078249)

$

$

Not available

1B

Snapper 7500103

TRANSMISSION, LC Walk, Variable Speed
(Superseded to 7500103YP)

Note: includes pulley (7100240)

$190.99

$

Usually ships in 2-12 days

0

2

Snapper 7078249

PULLEY, Transmission, Single Speed Low Cost Walk
(Superseded to 7078249YP)

$13.99

$

Usually ships in 2-12 days

0

2

Snapper 7100240

PULLEY, Transmission, Variable Speed Low Cost Walk
(Superseded to 7100240YP)

$24.99

$

In Stock, only 2 left!

0

3

Snapper 1960251

NUT, 3/8-16 Hex Center Lock Jam
(Superseded to 703230)

$5.49

$

In Stock, Qty 9

0

4

Snapper 7012316

WASHER, .390 I.D.
(Superseded to 703946)

$3.99

$

In Stock, Qty 17

0

5

Snapper 7100395

BELT GUIDE, Variable Speed
(Superseded to 7100395YP)

Note: (1/4-20 threads)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 7091545

NUT, 1/4-20 Hex Top Lock Flange, GR B
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

7

Snapper 7100058

BELT, 3L, Traction Drive
(Superseded to 7100058YP)

Note: 38.125 Nominal O.D.

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 7900032

SCREW, 7mm x 1 x .550 AB Point
(Superseded to 7900032YP)

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7100966

SPRING, Clutch Return
(Superseded to 7100966YP)

$8.99

$

Usually ships in 2-12 days

0
