SPV 211S (7800169) - Snapper 21" Walk-Behind Mower, 6.5hp ENGINE AND BLADE Parts Diagram

21" Walk-Behind Mower, 6.5hp

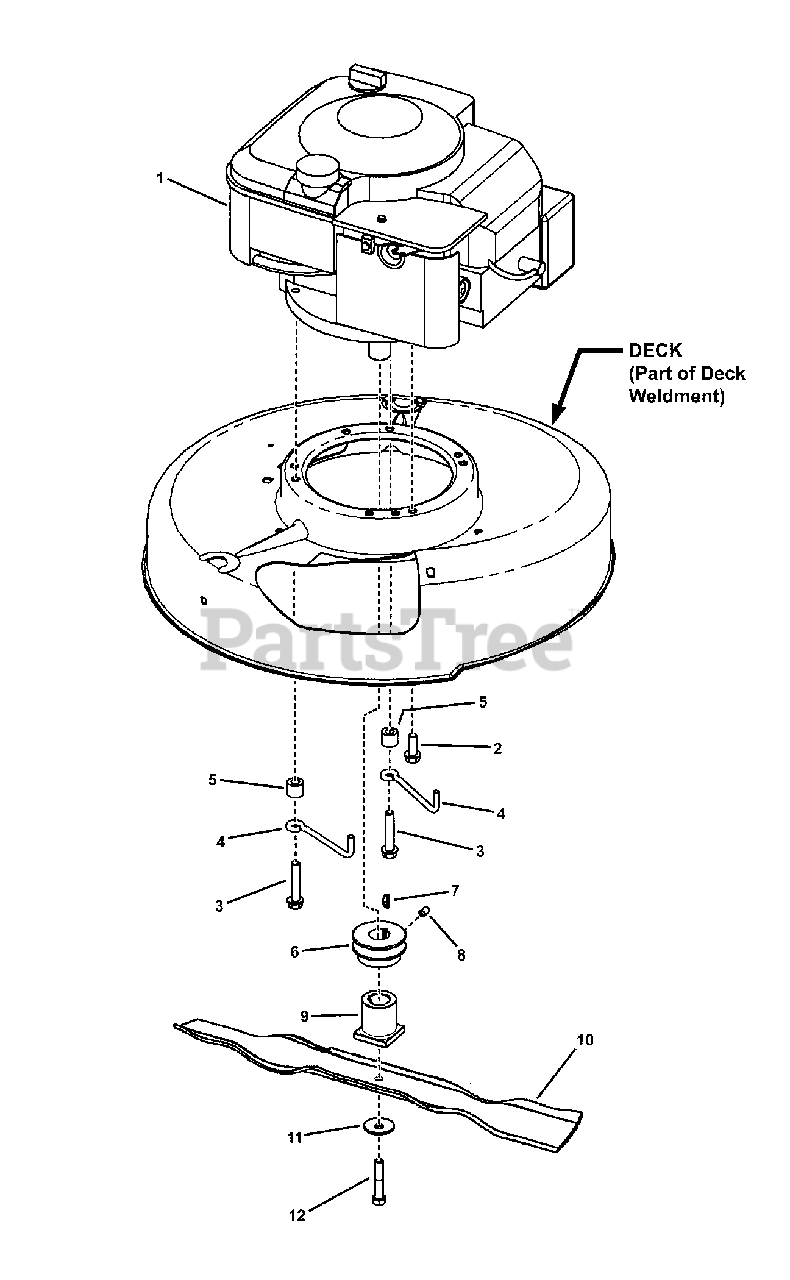

ENGINE AND BLADE Parts Diagram

  • Title

1

* ENGINE, 6.5 HP Quantum Mod. 123K02-0141-E1

Note: used on SPV21S

$

$

Not available

1

* ENGINE, 6.5 HP Quantum Mod. 124T02-0112-B1

Note: used on SPV211S

$

$

Not available

2

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

3

Snapper 7091088

SCREW, 3/8-16 x 2" Hex Washer Self-Tap
(Superseded to 7091088YP)

$6.49

$

Usually ships in 2-12 days

0

4

Snapper 7100022

GUIDE, Belt
(Superseded to 7100022YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 7200010

SPACER, Belt Guide
(Superseded to 7200010YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7100437

PULLEY, Engine
(Superseded to 7100437YP)

$43.99

$

In Stock, only 1 left!

0

7

Snapper 7091214

KEY, Hi-Pro (#HP-506)
(Superseded to 7091214YP)

$4.99

$

In Stock, Qty 7

0

8

Snapper 7092086

SET SCREW, 5/16-18 x 1/2" Hex Recess
(Superseded to 7092086YP)

Note: Type A Point (Cup Point)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7027423

HUB, Blade Drive, 25 MM I.D.
(Superseded to 7027423YP)

$16.99

$

Usually ships in 2-12 days

0

10

Snapper 7100242

BLADE, Wave, 21" Steel Deck
(Superseded to 7100242AYP)

$29.99

$

In Stock, only 2 left!

0

11

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

12

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$

$

Not available
