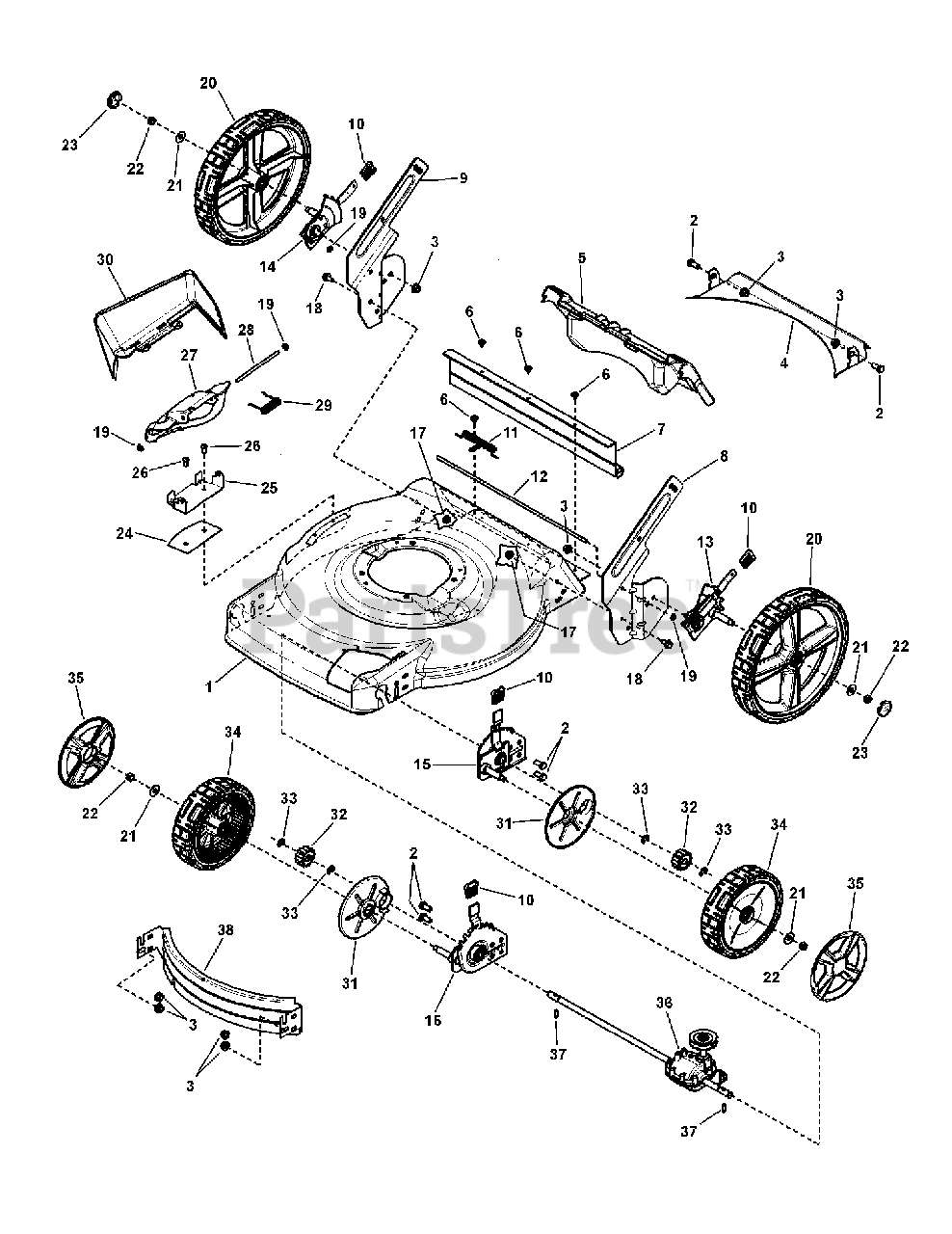

SPV 22675HW (7800190) - Snapper 22" Walk-Behind Mower, 6.75hp Deck Assembly Parts Diagram

22" Walk-Behind Mower, 6.75hp

Deck Assembly Parts Diagram

  • Title

1

Snapper 7300400D

DECK, 22 Walk, 3-N-1
(Superseded to 7300400DYP)

$

$

Not available

2

Snapper 7900054

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 7900054YP)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock, YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 15

0

4

Snapper 7300854D

BAFFLE, Rear, 22 Deck
(Superseded to 7300854DYP)

$45.99

$

Usually ships in 2-12 days

0

5

Snapper 7101243

DOOR, 22" Rear
(Superseded to 7101243YP)

$54.99

$

Usually ships in 2-12 days

0

6

Snapper 7091286

SCREW, #10-24 x 1/2 Hex Washer Self-Tap, SEMS
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 12

0

7

Snapper 7102422

GUARD, Rear
(Superseded to 7102422YP)

$19.99

$

In Stock, only 2 left!

0

8

Snapper 7300583BH

BRACKET, Lower Handle, LH, 22" WBM, HW
(Superseded to 7300583BHYP)

$45.99

$

Usually ships in 2-12 days

0

9

Snapper 7300582BH

BRACKET, Lower Handle, RH, 22" WBM, HW
(Superseded to 7300582BHYP)

$52.99

$

Usually ships in 2-12 days

0

10

Snapper 7100633

GRIP, Height Latch - Black (1.3" Wide)
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7101461

SPRING, Torsion, Rear Door, 22" WBM
(Superseded to 7101461YP)

$6.99

$

Usually ships in 2-12 days

0

12

Snapper 7101070

ROD, Pivot, Rear Door (1/4" Dia. X 17-1/2")
(Superseded to 7101070YP)

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 7501055

ASSEMBLY, Height-Of-Cut, Left Rear, 22" WBM
(Superseded to 7501055YP)

$

$

Not available

14

Snapper 7501056

ASSEMBLY, Height-Of-Cut, Right Rear, 22" WBM
(Superseded to 7501056YP)

$27.99

$

Usually ships in 2-12 days

0

15

Snapper 7501058

ASSEMBLY, Height-Of-Cut, Left Front, 22" WBM, Propelled
(Superseded to 7501058YP)

$91.99

$

Usually ships in 2-12 days

0

16

Snapper 7501057

ASSEMBLY, Height-Of-Cut, Right Front, 22" WBM, Propelled
(Superseded to 7501057YP)

$78.99

$

Usually ships in 2-12 days

0

17

Snapper 7091601

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

18

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, YZ
(Superseded to 7091811SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7091020

PUSHNUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 18

0

20

Snapper 7500546

* ASSEMBLY, Wheel, 12 x 2 Idle, BB, Snapper Cool Gray
(Superseded to 7105710YP)

$81.99

$

In Stock, only 2 left!

0

21

Snapper 722604

WASHER, 1" O.D. x .387 I. D. Flat
(Superseded to 703966)

$4.49

$

In Stock, Qty 6

0

22

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 12

0

23

Snapper 7101393

HUBCAP, 12 Wheel, Snapper Cool Gray
(Superseded to 7101393YP)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7300856D

PLATE, Mulch, 22" RB Scott's
(Superseded to 7300856DYP)

$5.99

$

In Stock, only 1 left!

0

25

Snapper 7300855D

BRACKET, Chute
(Superseded to 7300855DYP)

$7.49

$

In Stock, only 1 left!

0

26

Snapper 722848

SCREW, 1/4-20 x 11/16 Pan Head Torx, Self-Tap
(Superseded to 703961)

$4.49

$

In Stock, Qty 18

0

27

Snapper 721682

COVER, Mulch, Plastic, Black
(Superseded to 1101098MA)

$35.99

$

In Stock, only 1 left!

0

28

Snapper 7101067

ROD, Pivot (1/4" Dia. x 5.55")
(Superseded to 7101067YP)

$7.49

$

Usually ships in 2-12 days

0

29

Snapper 722507

SPRING, Torsion, Chute
(Superseded to 166X38MA)

$5.49

$

In Stock, only 1 left!

0

30

Snapper 721681

SIDE CHUTE, Plastic, Black
(Superseded to 1101097MA)

$40.99

$

Usually ships in 2-12 days

0

31

Snapper 7101402

DUST SHIELD, 22" WBM, Front Wheel Drive
(Superseded to 7101402YP)

$7.99

$

In Stock, only 2 left!

0

32

Snapper 7101207

GEAR, Pinion, 22" WBM, Front Wheel Drive
(Superseded to 7101207YP)

$8.99

$

In Stock, only 3 left!

0

33

Snapper 7014341

RING, External Retaining
(Superseded to 703976)

Note: (Waldes 5133-50)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7500542

* ASSEMBLY, Drive Wheel, 8 x 2, BB, Snapper Charcoal Gray
(Superseded to 7500542YP)

$34.99

$

In Stock, only 2 left!

0

35

Snapper 7101350

HUBCAP, 8 & 9 Wheel Spoked - Snapper Cool Gray
(Superseded to 7101350YP)

$10.99

$

In Stock, Qty 6

0

36

Snapper 7100857

TRANSMISSION, Rocker, 22 WBM HW, VS
(Superseded to 7100857YP)

$121.99

$

Usually ships in 2-12 days

0

37

Snapper 7101270

DRIVE PIN, 22" WBM, Front Wheel Drive
(Superseded to 7101270YP)

$5.49

$

In Stock, only 2 left!

0

38

Snapper 7300440D

BAFFLE, Front, 22 WBM
(Superseded to 7300440BMYP)

$141.99

$

Usually ships in 2-12 days

0
