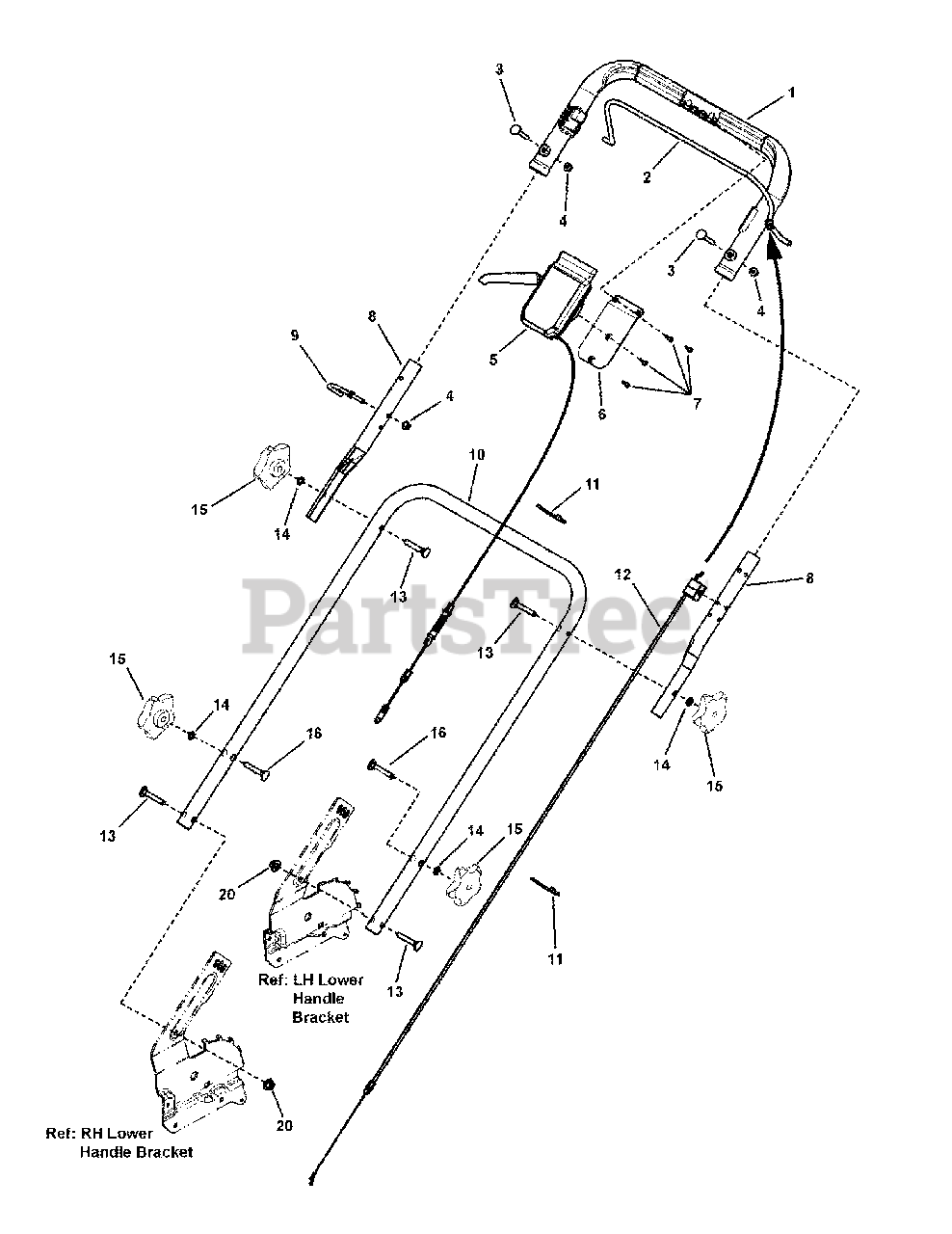

SPV 2270HW (7800709) - Snapper 22" Walk-Behind Mower, 7hp Handle & Controls Group Parts Diagram

22" Walk-Behind Mower, 7hp

Handle & Controls Group Parts Diagram

  • Title

1

Snapper 7101312

UPPER HANDLE, Plastic, WBM
(Superseded to 7101312YP)

$135.99

$

In Stock, only 1 left!

0

2

Snapper 7101321BH

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$67.99

$

In Stock, only 1 left!

0

3

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Round Head Square Neck, GR 2, YZ
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 2860694

NUT, 1/4-20, Hex Flange (Nyloc) YZ
(Superseded to 703463)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7502147

ASSEMBLY, Control Head, 22" WBM, VS, Hi-Wheel
(Superseded to 7103677YP)

$66.99

$

In Stock, only 2 left!

0

6

Snapper 7300670A

PLATE, Control Panel, Plastic Handle
(Superseded to 7300670AYP)

$7.99

$

Usually ships in 2-12 days

0

7

Snapper 95050

SCREW, Pan Head Cross Recess, Self-Tap
(Superseded to 691138)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7300649BH

HANDLE, Connecting, 21"/22" WBM
(Superseded to 7300649BHYP)

$28.99

$

Usually ships in 2-12 days

0

9

Snapper 7104952

ROPE GUIDE
(Superseded to 7104952YP)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 7301189BH

HANDLE, Lower, 22" WBM, Hi-Wheel
(Superseded to 7301189BHYP)

$187.99

$

Usually ships in 2-12 days

0

11

Snapper 7024649

WIRE TIE, 11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 7101395

CABLE, Bail, 22" WBM
(Superseded to 7101395YP)

$16.99

$

In Stock, Qty 14

0

13

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

14

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7102990

KNOB, 5-Prong, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 1931338

CARRIAGE BOLT, 5/16-18 x 1-3/4, G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

20

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 7

0
