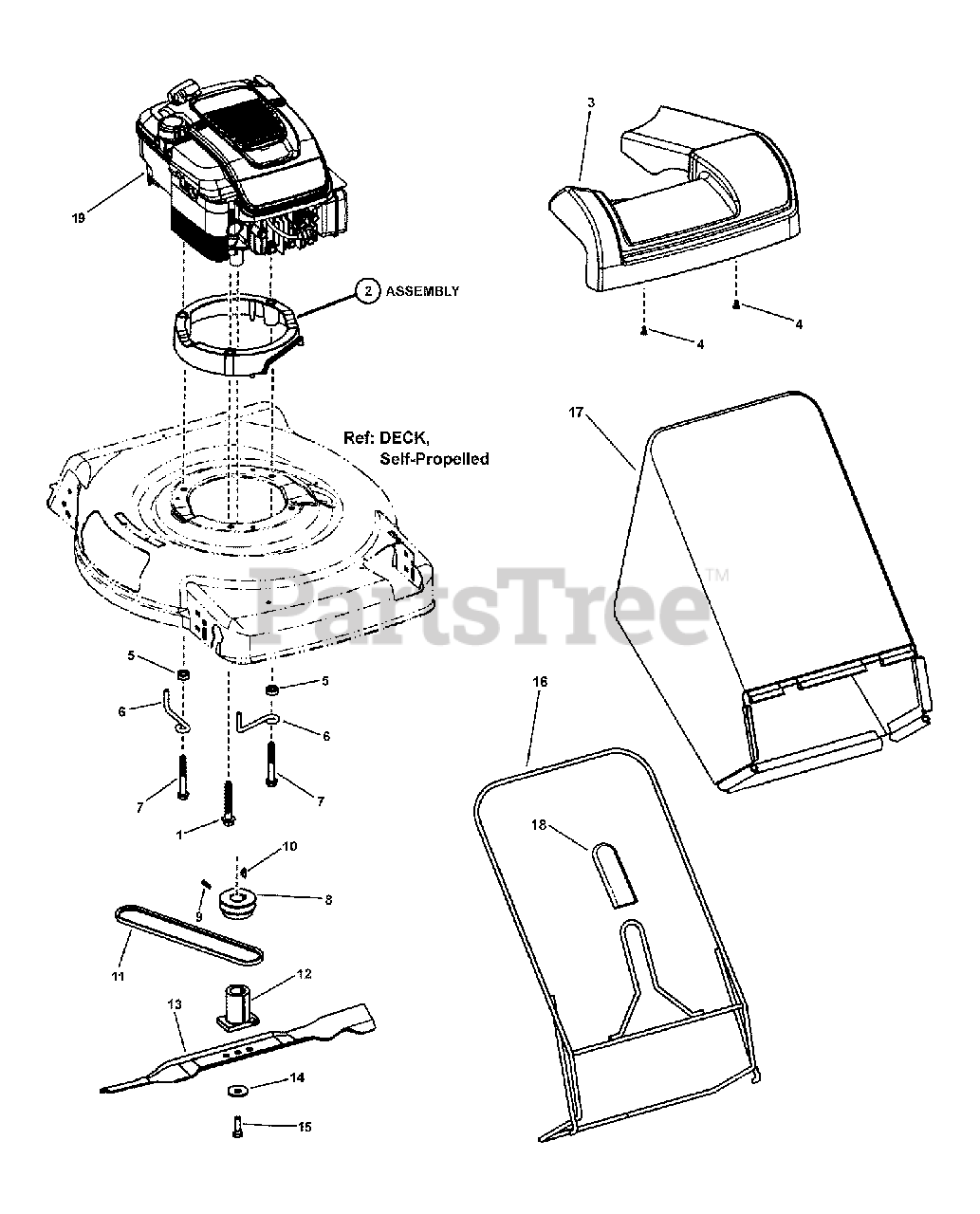

SPVH 2265 (7800440) - Snapper 22" Walk-Behind Mower, 6.5hp Engine, Blade & Grass Bag Parts Diagram

22" Walk-Behind Mower, 6.5hp

Engine, Blade & Grass Bag Parts Diagram

  • Title

1

Snapper 720351

BOLT, 3/8-16 NS x 2-1/2"
(Superseded to 025X11MA)

$6.99

$

Usually ships in 2-12 days

0

2

Snapper 7101449

ASSEMBLY, Engine Spacer, 22" WBM, Self-Propelled
(Superseded to 7101449YP)

Note: (includes 7101209 (spacer) & 7101448 (3) (bushings)

$64.99

$

Usually ships in 2-12 days

0

3

Snapper 7101195

FRONT COVER, Deck, 22" Front Wheel Drive
(Superseded to 7101195YP)

$82.99

$

Usually ships in 2-12 days

0

4

Snapper 7900018

SCREW, 4.8 x 1.59 x 13mm, Round Washer Head Hi-Lo (Torx)
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7101302

SPACER, Belt Guide 22"
(Superseded to 7101302YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7101024

BELT GUIDE, Engine, 22"
(Superseded to 7101024YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7101451

SCREW, 3/8-16 x 3" Hex Washer Self-Tap
(Superseded to 7101451YP)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 7100437

PULLEY, Engine
(Superseded to 7100437YP)

$40.99

$

Usually ships in 2-12 days

0

9

Snapper 7092086

SET SCREW, 5/16-18 x 1/2" Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7091214

KEY, #HP-506 HI-PRO
(Superseded to 7091214YP)

$4.99

$

In Stock, only 3 left!

0

11

Snapper 7100913

** BELT, Drive (3L Section; 31.94" effective length)
(Superseded to 7100913YP)

$13.99

$

Usually ships in 2-12 days

0

12

Snapper 7100740

BLADE HUB, 22" Deck, Self Propelled
(Superseded to 7100740YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7100851

BLADE, 22", Walk Mower
(Superseded to 7100851AYP)

$19.99

$

In Stock, Qty 6

0

14

Snapper 721890

WASHER, .38" I.D. x 1.183 O.D. Bellville
(Superseded to 1101989MA)

$5.49

$

Usually ships in 2-12 days

0

15

Snapper 720209

BOLT, 3/8-24 x 3-1/4" Hex Head, GR 8
(Superseded to 01X144MA)

$5.49

$

In Stock, Qty 5

0

16

Snapper 7101230A

BAG FRAME, 22" WBM (weldment)
(Superseded to 7101230AYP)

$222.99

$

Usually ships in 2-12 days

0

17

Snapper 7102573

GRASS BAG, 22" Rear Discharge
(Superseded to 7102573YP)

$128.99

$

Usually ships in 2-12 days

0

18

Snapper 7026421

GRIP, Rectangular (Black)
(Superseded to 7026421YP)

$6.49

$

In Stock, only 2 left!

0

19

Snapper 124T02-0650-B3

* ENGINE, B&S, 650 Ser, X-Spec

Note: (used on 7800440)

$

$

Currently unavailable

19

Snapper 124L02-4650-F3

* ENGINE, B&S, 650 Ser, X-Spec

Note: (used on 7800447)

$

$

Currently unavailable

19

Snapper 126T02-0675-B3

* ENGINE, B&S, 675 Ser, X-Spec

Note: (used on 7800606)

$

$

Currently unavailable

19

Snapper 126L02-4675-F3

* ENGINE, B&S, 675 Ser, X-Spec

Note: (used on 7800609)

$

$

Currently unavailable
