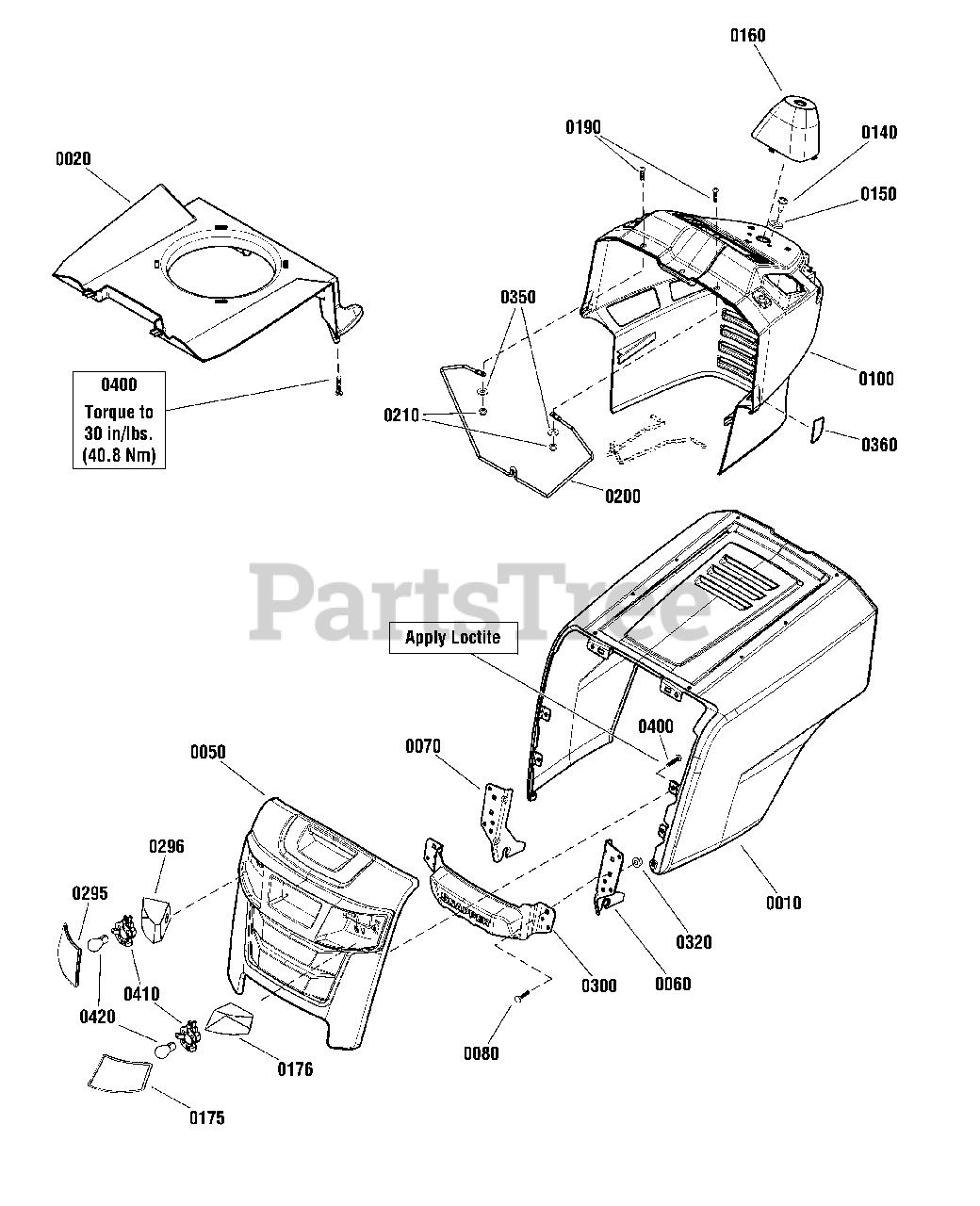

SPX 100 (2691217-01) - Snapper LT150 Series 42"/107cm Lawn Tractor, 17.5hp Hood, Grille & Dash Group - Incandescent Lights Parts Diagram

LT150 Series 42"/107cm Lawn Tractor, 17.5hp

Hood, Grille & Dash Group - Incandescent Lights Parts Diagram

  • Title

0010

Snapper 1753164DYP

HOOD, One Piece, Center Emboss

$234.99

$

Usually ships in 2-12 days

0

0020

Snapper 1738734YP

AIR DUCT

$155.99

$

Usually ships in 2-12 days

0

0050

Snapper 1757560YP

GRILLE, Front

$271.99

$

Usually ships in 2-12 days

0

0060

Snapper 1738566AYP

HINGE, Hood, LH

$15.99

$

Usually ships in 2-12 days

0

0070

Snapper 1738565AYP

HINGE, Hood, RH

$14.99

$

Usually ships in 2-12 days

0

0080

Snapper 703483

BOLT, Carriage, 5/16 x 1, G5

$3.99

$

In Stock, only 3 left!

0

0100

Snapper 1753166YP

DASH, Nxt - Black

$208.99

$

Usually ships in 2-12 days

0

0140

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1919381SM

WASHER, 5/16 x 1
(Superseded to 703298)

$4.49

$

In Stock, Qty 14

0

0160

Snapper 1738790YP

COVER, Steering Shaft

$10.99

$

Usually ships in 2-12 days

0

0175

Snapper 1757561YP

LENS, Headlight, LH

$15.99

$

Usually ships in 2-12 days

0

0176

Snapper 1757563YP

INSERT, Headlight, LH

$11.99

$

Usually ships in 2-12 days

0

0190

Snapper 1739942YP

SCREW, Pan Head Phillips, #10-24 x 7/8

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper 1738964YP

ROD, Dash Support, 1/4 Dia. x 10"

$19.99

$

Usually ships in 2-12 days

0

0210

Snapper 1933896SM

NUT,Ny-Lock 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0295

Snapper 1757562YP

LENS, Headlight, RH

$16.99

$

Usually ships in 2-12 days

0

0296

Snapper 1757564YP

INSERT, Headlight, RH

$11.99

$

Usually ships in 2-12 days

0

0300

Snapper 1753169BMYP

BUMPER, Front

$49.99

$

Usually ships in 2-12 days

0

0320

Snapper 1960686SM

NUT, Hex Flange, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 13

0

0350

Snapper 1960353SM

WASHER, 1/4 x 27/32 OD
(Superseded to 703229)

$4.49

$

Usually ships in 2-12 days

0

0360

Snapper 1753895YP

TRIM, Protective

$7.99

$

Usually ships in 2-12 days

0

0400

Snapper 1754203YP

SCREW, 7mm Dia. x 16mm

$4.49

$

In Stock, Qty 5

0

0410

Snapper 1001716MA

SOCKET, Lamp

$7.99

$

In Stock, Qty 11

0

0420

Snapper 1757565YP

BULB, Incandescent

$7.99

$

Usually ships in 2-12 days

0

0430

Snapper 1757664YP

INSULATION, Thermal (Not Shown)
(Superseded to 1758731YP)

Note: (Used on Rev. 00)

$9.49

$

In Stock, Qty 5

0

0430

Snapper 1758731YP

INSULATION, Thermal 2.0" X 12.5" (Not Shown)

Note: (Used on Rev. 01)

$9.49

$

In Stock, Qty 5

0
