SPX 160 (2691700-00) - Snapper LT150 Series 42"/107cm Lawn Tractor, 17.5hp 42" (107cm) Mower Deck - Housing, Arbor & Blade Group Parts Diagram

LT150 Series 42"/107cm Lawn Tractor, 17.5hp

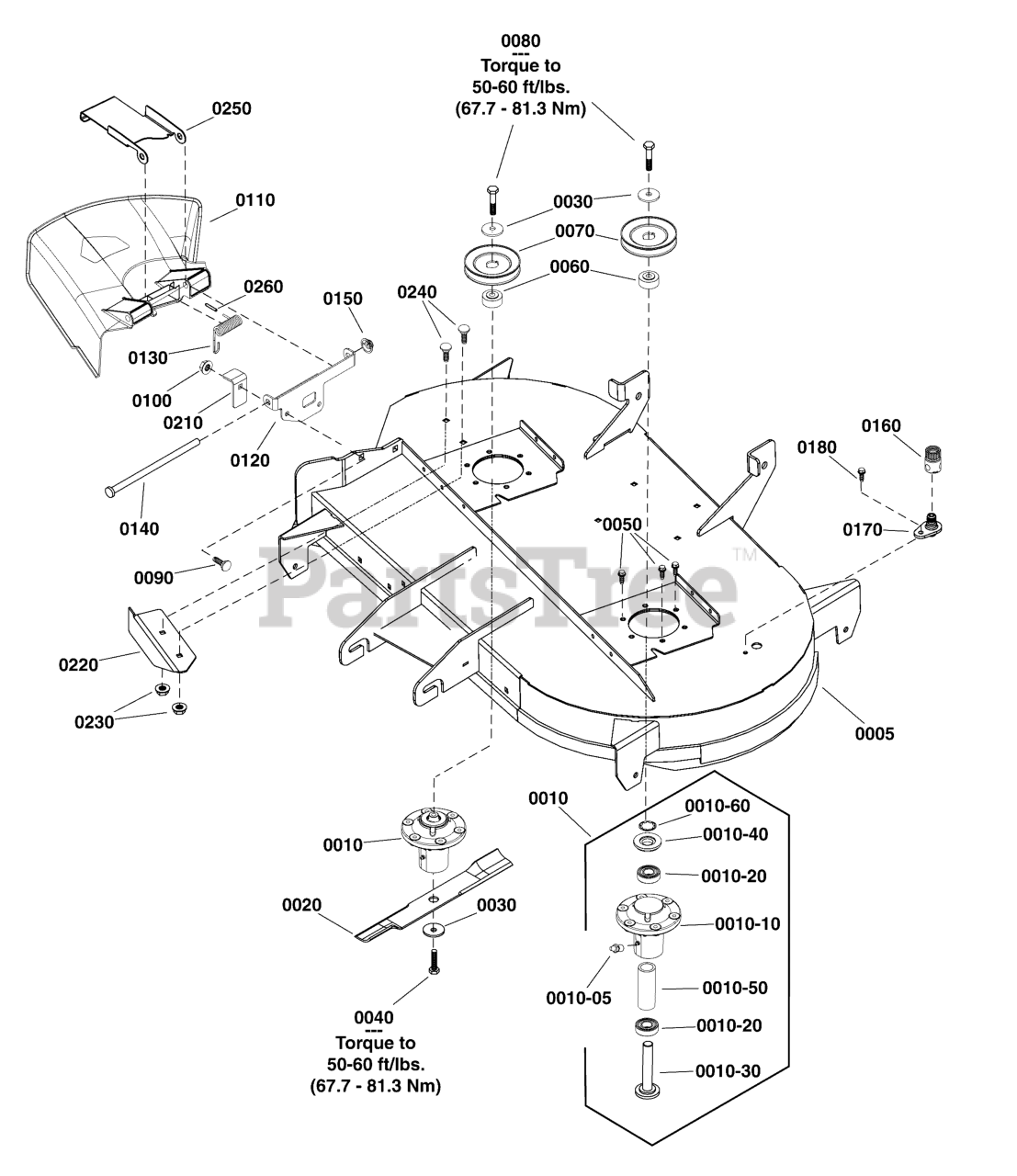

42" (107cm) Mower Deck - Housing, Arbor & Blade Group Parts Diagram

  • Title

0005

Snapper 1687949

HOUSING, Mower Deck, 42" Red

$1450.99

$

Usually ships in 2-12 days

0

0010

Snapper 84003173

ARBOR ASSEMBLY

$102.99

$

In Stock, Qty 20+

0

0010-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0010-10

Snapper 84003653

HOUSING, w/Lube Fittting

$86.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0010-30

Snapper 84003170

SHAFT, Spindle

$31.99

$

In Stock, only 2 left!

0

0010-40

Snapper 84003166

SHIELD, Arbor

$7.49

$

In Stock, Qty 20+

0

0010-50

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, only 1 left!

0

0010-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 1758878BMYP

BLADE, 21.31" Long

$28.99

$

In Stock, Qty 20+

0

0030

Snapper 1656916SM

WASHER, Spring

$7.99

$

In Stock, Qty 20+

0

0040

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, only 3 left!

0

0050

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 17

0

0060

Snapper 1736445YP

SPACER, Pulley

$14.99

$

Usually ships in 2-12 days

0

0070

Snapper 1737835YP

PULLEY, 4.50

$21.99

$

In Stock, Qty 11

0

0080

Snapper 705424

CAPSCREW, Hex Head, 7/16-14 X 1 3/4
(Superseded to 703171)

$3.99

$

In Stock, Qty 11

0

0090

Snapper 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, Qty 6

0

0100

Snapper 703793

NUT, Lock, Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

0110

Snapper 7104733YP

DEFLECTOR

$93.99

$

Usually ships in 2-12 days

0

0120

Snapper 1758982BMYP

BRACKET, Deflector
(Superseded to 1758982AYP)

$43.99

$

In Stock, only 1 left!

0

0130

Snapper 7035813SM

SPRING, Torsion

$25.99

$

In Stock, Qty 8

0

0140

Snapper 7104640YP

ROD, Deflector

$29.99

$

In Stock, only 2 left!

0

0150

Snapper 703179

PUSHNUT, 1/2

$3.99

$

In Stock, Qty 20+

0

0160

Snapper 1756246YP

CONNECTOR, Washout Port

$16.99

$

In Stock, only 1 left!

0

0170

Snapper 1756247YP

ADAPTER, Washout Port

$6.99

$

In Stock, Qty 7

0

0180

Snapper 703235

SCREW, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 1758593BMYP

PROP, Deflector

$19.99

$

Usually ships in 2-12 days

0

0220

Snapper 1758581BMYP

BAFFLE, Pinchoff

$19.99

$

In Stock, only 2 left!

0

0230

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0240

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

0250

Snapper 1759986BMYP

SUPPORT, Deflector

$26.99

$

Usually ships in 2-12 days

0

0260

Snapper 5023489SM

CAP, Protector

$3.99

$

In Stock, only 1 left!

0
