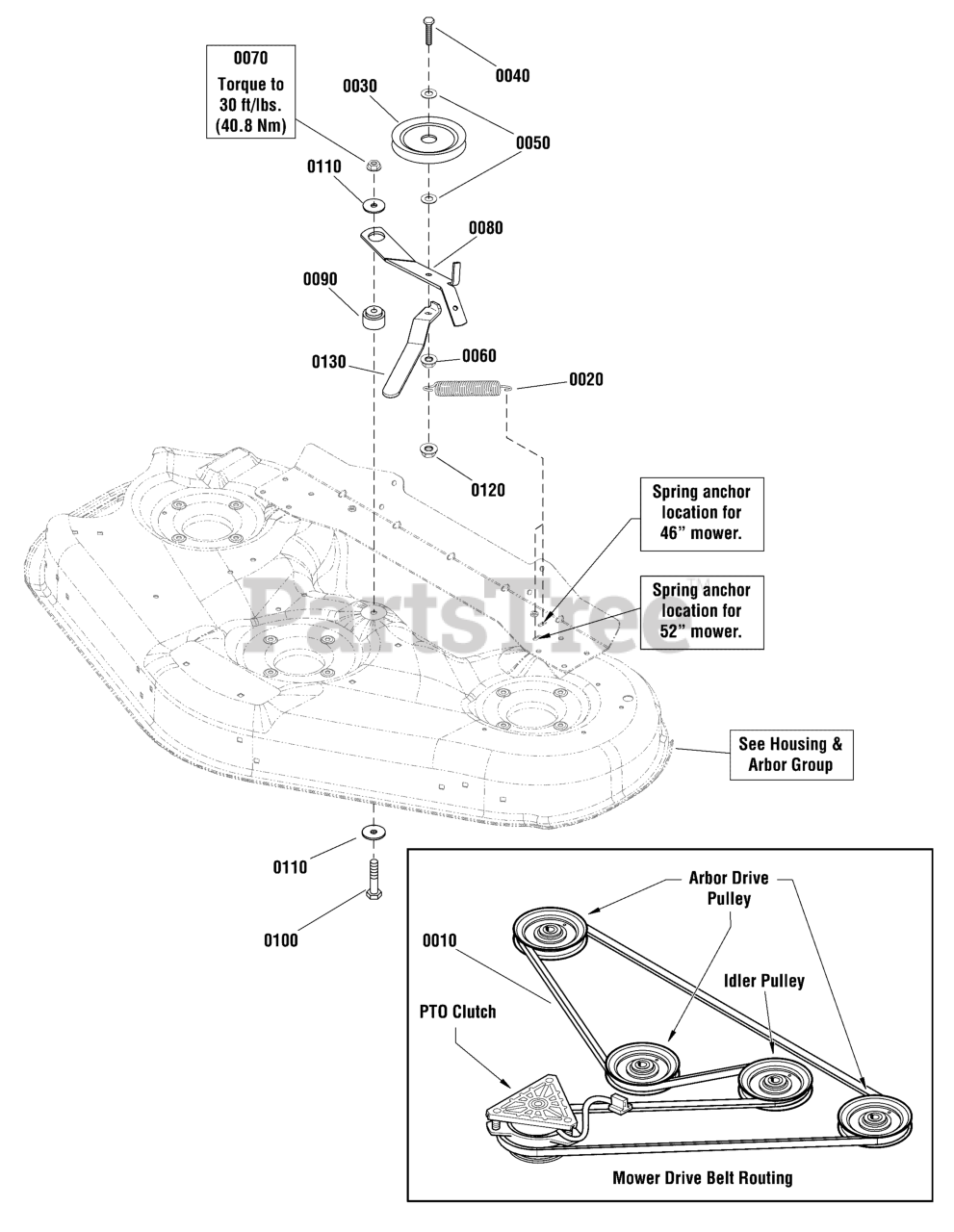

SPX 2246 (2691185-00) - Snapper LT150 Series 46" Lawn Tractor, 22hp 46" & 52" Mower Deck - Clutch Group Parts Diagram

LT150 Series 46" Lawn Tractor, 22hp

46" & 52" Mower Deck - Clutch Group Parts Diagram

  • Title

0010

Snapper 1732956SM

BELT, 118.0" EL, V-HA, Aramid Fiber

Note: (46" Models)

$74.99

$

In Stock, Qty 5

0

0010

Snapper 1736516YP

V-BELT, 132", HA, 52" Mower

Note: (52" Models)

$79.99

$

In Stock, Qty 20+

0

0020

Snapper 1715772SM

SPRING, Extension, 1 OD x 5-1/4" Long

$14.99

$

In Stock, Qty 9

0

0030

Snapper 1736540YP

PULLEY, Flat Idler, 4.0", 3/8" ID BB

$36.99

$

In Stock, Qty 15

0

0040

Snapper 1933685SM

SCREW, 3/8-16 x 2-1/2, G5, Hex Head

$5.49

$

In Stock, only 1 left!

0

0050

Snapper 704128

WASHER, .406X1.0X.134 Flat, Zinc/Clear

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 13

0

0070

Snapper 1960339SM

NUT, 3/8-16, Hex Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0080

Snapper 1736551AYP

ARM, Idler

$32.99

$

In Stock, Qty 6

0

0090

Snapper 1729007SM

SPACER, .387 I.D. x 1.50 O.D. x 1.04 Long PM Yellow

$12.99

$

In Stock, Qty 17

0

0100

Snapper 703589

SCREW, 3/8-16 x 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0110

Snapper 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 20+

0

0120

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, Qty 12

0

0130

Snapper 1755653

Handle, Idler Arm

$

$

Currently unavailable
