SPX 2348 (2691350-00) - Snapper LT300 Series 48" Lawn Tractor, 23hp Electrical Group Parts Diagram

LT300 Series 48" Lawn Tractor, 23hp

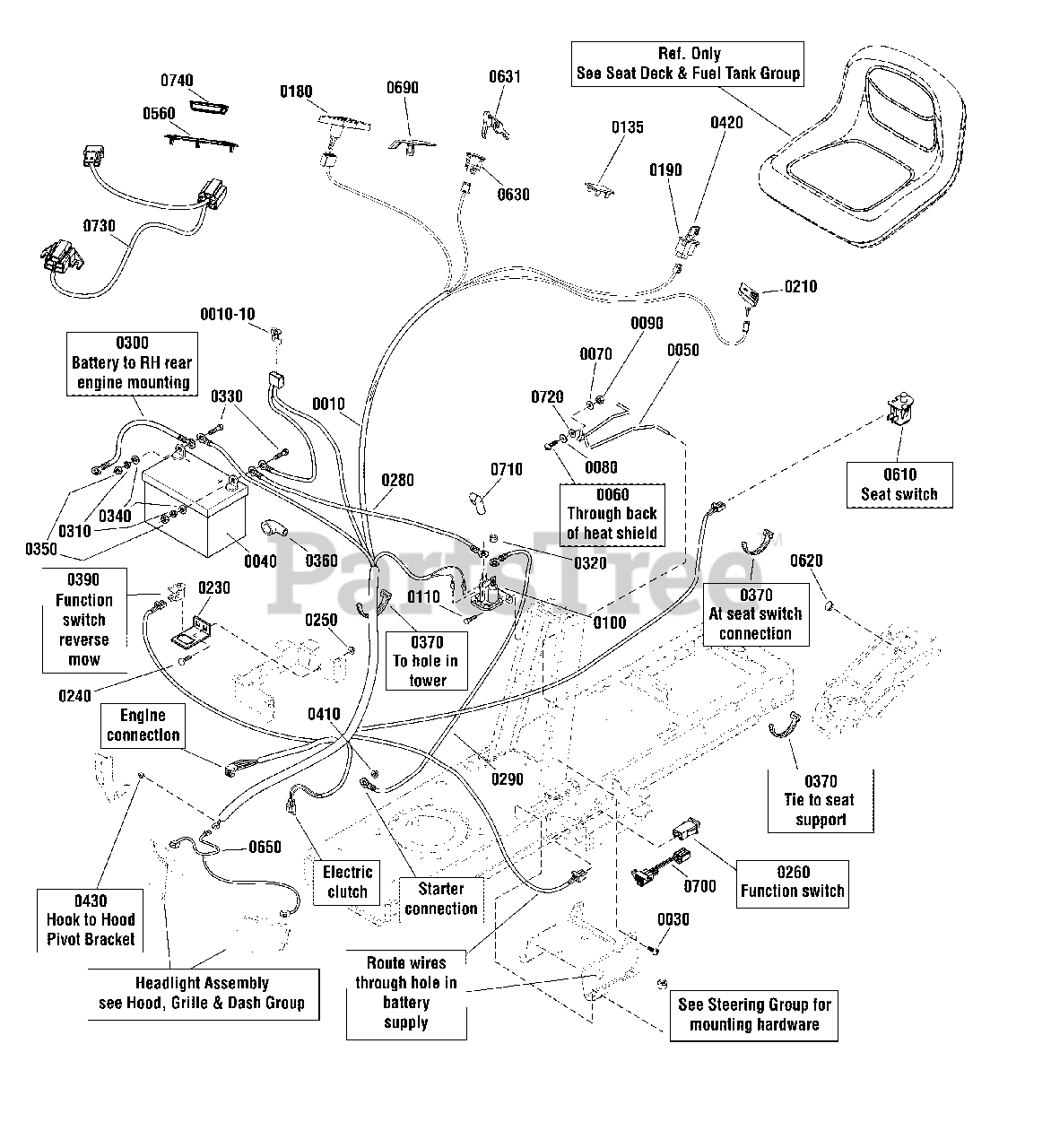

Electrical Group Parts Diagram

  • Title

0010

Snapper 1757822YP

WIRING HARNESS, Main

$152.99

$

Usually ships in 2-12 days

0

0010-10

* FUSE, Mini, 20 Amp

$

$

Not available

0030

Snapper 703949

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8

$3.99

$

In Stock, Qty 18

0

0040

BATTERY, 8U1L, 230CCA

Note: (Not a serviceable part)

$

$

Not available

0050

Snapper 1730007SM

HOLD DOWN, Battery

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

0070

Snapper 703229

WASHER, 1/4

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 703826

PUSHNUT, Retainer

$3.49

$

In Stock, Qty 12

0

0090

Snapper 703232

NUT, Hex Lock ESNA Light, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1755381YP

SOLENOID, 12V, L-Bracket, 2-Spade

$24.99

$

Usually ships in 2-12 days

0

0110

Snapper 704130

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap, Black

$3.99

$

In Stock, Qty 20+

0

0135

Snapper 1722611SM

PLUG, Hole, Square

$6.99

$

Usually ships in 2-12 days

0

0180

Snapper 1738982YP

SWITCH, PTO

$43.99

$

In Stock, only 1 left!

0

0190

Snapper 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Snapper 1738983YP

SWITCH, Light

$39.99

$

Usually ships in 2-12 days

0

0230

Snapper 1728026SM

SUPPORT, RMO Switch
(Superseded to 1728026ASM)

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0250

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

0280

Snapper 1752685YP

CABLE, Battery Positive, Red

$11.99

$

Usually ships in 2-12 days

0

0290

Snapper 1751450YP

CABLE, #8 x 25

$11.99

$

Usually ships in 2-12 days

0

0300

Snapper 1752686YP

CABLE, #8 x 26.0

$12.99

$

Usually ships in 2-12 days

0

0310

Snapper 704133

LOCKWASHER, Split, 1/4

$3.99

$

In Stock, only 2 left!

0

0320

Snapper 2860750SM

NUT, Hex KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 703925

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5 YZ

$4.49

$

In Stock, Qty 6

0

0340

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

0350

Snapper 703127

NUT, Hex, 1/4-20, GR5

$3.49

$

In Stock, only 3 left!

0

0360

Snapper 1677296SM

BOOT, Insulator

$6.49

$

In Stock, only 2 left!

0

0370

Snapper 703586

TIE, Self Lock, 7"

$4.99

$

Usually ships in 2-12 days

0

0390

Snapper 1732004SM

SWITCH, Push Button (NO)

$8.99

$

In Stock, Qty 6

0

0410

Snapper 703233

NUT, Hex Flange, Whiz Lock, 1/4-20

$4.49

$

In Stock, only 1 left!

0

0420

Snapper 1726557SM

KEY, RMO Module, Plastic

$5.49

$

In Stock, Qty 20+

0

0430

Snapper 2172434SM

CLIP, Wire

$4.99

$

In Stock, only 1 left!

0

0560

Snapper 1758656YP

PLUG, Dash

Note: (Use with LED Lights)

$5.99

$

Usually ships in 2-12 days

0

0610

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0620

Snapper 1732007SM

PLUG, Hole

$4.49

$

Usually ships in 2-12 days

0

0630

Snapper 7106169YP

SWITCH, Ignition, 3 Position

Note: (Delta)(Without Key)

$17.99

$

Usually ships in 2-12 days

0

0631

Snapper 7106170YP

KEY, Ignition Switch, Pack of 2, NA/AU

$21.99

$

In Stock, only 1 left!

0

0650

Snapper 1751941YP

HARNESS, Headlight

Note: (Use with LED Headlights)

$24.99

$

Usually ships in 2-12 days

0

0690

Snapper 1753240YP

PLUG, Starter Insert

$4.49

$

Usually ships in 2-12 days

0

0700

Snapper 1734025SM

WIRES & CONNECTORS ASSEMBLY, Jumper

$14.99

$

Usually ships in 2-12 days

0

0710

Snapper 1713535SM

BOOT, Insulator

$5.99

$

Usually ships in 2-12 days

0

0720

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 14

0

0730

Snapper 1759898YP

HARNESS, Mini Meter Adapter

$31.99

$

In Stock, only 1 left!

0

0740

Snapper 1758654YP

DISPLAY, Mini Meter

$117.99

$

Usually ships in 2-12 days

0
