SPX 2548 (2691282-00) - Snapper LT150 Series 48" Lawn Tractor, Fab Deck, 25hp Electrical Group Parts Diagram

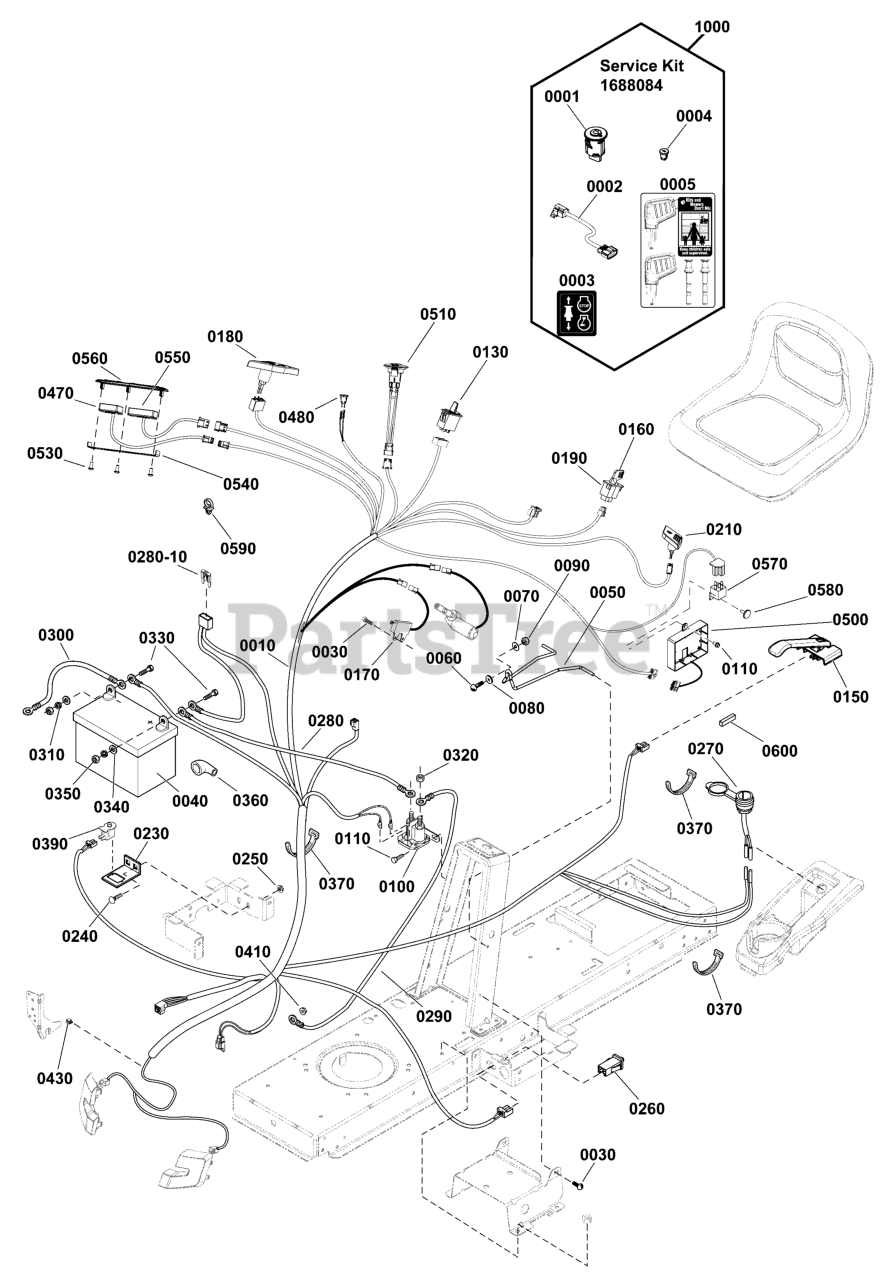

LT150 Series 48" Lawn Tractor, Fab Deck, 25hp

Electrical Group Parts Diagram

  • Title

0010

Snapper 1738984YP

WIRING HARNESS

$276.99

$

Usually ships in 2-12 days

0

0030

Snapper 703949

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8

$3.99

$

In Stock, Qty 18

0

0040

BATTERY, 12 Volt, 230 CCA

Note: (Not a serviceable part)

$

$

Not available

0050

Snapper 1730007SM

HOLD DOWN, Battery, 1/4 Dia.

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318SM

BOLT, Carriage, 1/4-20 x 7/8, G5

$4.49

$

In Stock, only 4 left!

0

0070

Snapper 703229

WASHER, 1/4 x 27/32 OD

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 703826

PUSHNUT, 1/4 x 1/2 OD

$3.49

$

In Stock, Qty 5

0

0090

Snapper 703232

NUT, Hex Lock, ESNA, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1755381YP

SOLENOID, 12V, Trombetta, 5/16-24 Studs

$24.99

$

In Stock, Qty 14

0

0110

Snapper 704130

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0

0130

Snapper 1738381YP

SWITCH, Height of Cut

$38.99

$

In Stock, only 2 left!

0

0150

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0160

Snapper 1726557SM

KEY, No Mow Module (Yellow)

$5.49

$

In Stock, Qty 19

0

0170

Snapper 1738724YP

SENSOR, Electric, Height Of Cut

$64.99

$

Usually ships in 2-12 days

0

0180

Snapper 1738982YP

SWITCH, PTO

$43.99

$

In Stock, only 1 left!

0

0190

Snapper 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Snapper 1738983YP

SWITCH, Light

$39.99

$

Usually ships in 2-12 days

0

0230

Snapper 1728026ASM

SUPPORT, RMO Switch (Reverse Pedal)

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0250

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 7022886YP

SWITCH, Push Button, Brake Pedal, NO/NC

$14.99

$

In Stock, Qty 20+

0

0270

Snapper 7073090SM

POWER OUTLET, 12 Volt, DC

$23.99

$

Usually ships in 2-12 days

0

0280

Snapper 1752685YP

CABLE, Battery Positive, Red 10" Long

$11.99

$

Usually ships in 2-12 days

0

0280-10

* FUSE, 20 Amp

$

$

Not available

0290

Snapper 1751450YP

CABLE, Starter, Red 25" Long

$11.99

$

Usually ships in 2-12 days

0

0300

Snapper 1752686YP

CABLE, Battery Negative, Black 26" Long

$12.99

$

Usually ships in 2-12 days

0

0310

Snapper 704133

LOCKWASHER, 1/4

$3.99

$

In Stock, only 2 left!

0

0320

Snapper 2860750SM

NUT, Hex Lock, KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 703925

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 6

0

0340

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 9

0

0350

Snapper 703127

NUT, Hex, 1/4-20

$3.49

$

In Stock, only 3 left!

0

0360

Snapper 1677296SM

BOOT, Insulator, Battery Termnal, Red

$6.49

$

In Stock, only 2 left!

0

0370

Snapper 2825094SM

TIE, Self Locking, 7-5/16 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0390

Snapper 1732004SM

SWITCH, Push Button, RMO Reverse Pedal (NO, Black)

$8.99

$

In Stock, Qty 6

0

0410

Snapper 703233

NUT, Hex Flange, 1/4-20

$4.49

$

In Stock, only 2 left!

0

0430

Snapper 2172434SM

CLIP, Wire

$4.99

$

In Stock, only 1 left!

0

0470

Snapper 1738985YP

GAGE, Electric, HOC

$55.99

$

Usually ships in 2-12 days

0

0480

Snapper 791944

SWITCH, Key

$14.99

$

In Stock, only 2 left!

0

0500

Snapper 1739020YP

PANEL, Control
(Superseded to 1688084)

Note: (For Replacement Refer To Reference Number 1000)

$164.99

$

Usually ships in 2-12 days

0

0510

Snapper 1753667YP

SWITCH, Push Button Start

$43.99

$

Usually ships in 2-12 days

0

0530

Snapper 1739329YP

SCREW, PT Thread, 5mm Dia. x 12mm

$4.49

$

Usually ships in 2-12 days

0

0540

Snapper 1739369AYP

BRACKET, Instrument Panel

$14.99

$

Usually ships in 2-12 days

0

0550

Snapper 1750212YP

METER, Service Indicator

$65.99

$

Usually ships in 2-12 days

0

0560

Snapper 1753219YP

BEZEL, Instrument Panel

$14.99

$

Usually ships in 2-12 days

0

0570

Snapper 1726829SM

RELAY

$15.99

$

Usually ships in 2-12 days

0

0580

Snapper 1704351SM

FASTENER

$4.99

$

Usually ships in 2-12 days

0

0590

Snapper 1730268

CLIP, Hose, 1/2 Dia., Push In
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

0600

Snapper 1750296

FOAM STRIP
(Superseded to 1750296YP)

$3.99

$

Usually ships in 2-12 days

0

1000

Snapper 1688084

KIT, IGNITION

Note: (Includes Reference Numbers 0001, 0002, 0003, 0004, 0005)

$164.99

$

Usually ships in 2-12 days

0

0001

Snapper 84003613

SWITCH ASSEMBLY, Push Button Start

$96.99

$

Usually ships in 2-12 days

0

0002

Snapper 84003694

ADAPTER, Harness

$23.99

$

In Stock, only 1 left!

0

0003

Snapper 84003695

DECAL, KEY FOB, CONTROL

$9.99

$

Usually ships in 2-12 days

0

0004

Snapper 282640YP

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

0005

Snapper 84003869

BLISTER PACK

$21.99

$

Usually ships in 2-12 days

0
