SPXV 2270HW (7800776) - Snapper 22" Walk-Behind Mower, 7hp Handles & Controls Group Parts Diagram

22" Walk-Behind Mower, 7hp

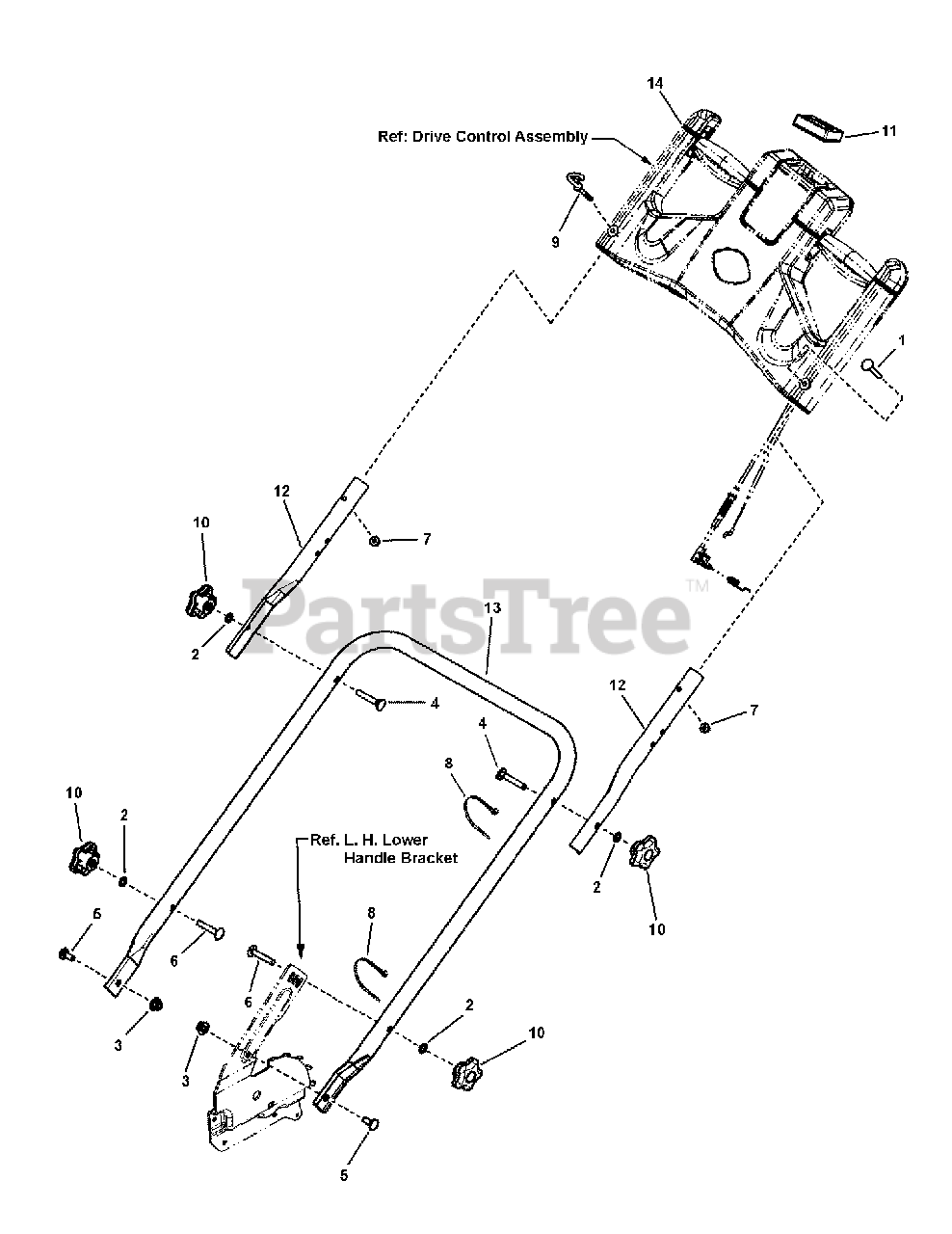

Handles & Controls Group Parts Diagram

  • Title

1

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Round Head Square Neck, GR 2, YZ
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 8

0

4

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 19

0

5

Snapper 1931333

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Square Neck Carriage
(Superseded to 703175)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 2860694

NUT, 1/4-20 Hex Flange (Esna), YZ
(Superseded to 703463)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7024649

WIRE TIE, 11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7101410

ROPE GUIDE, (1/4-20 thread)
(Superseded to 7101410YP)

$6.99

$

In Stock, only 1 left!

0

10

Snapper 7102990

KNOB, Handle, (5/16-18 internal threads) 5-Prong
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7103774

METER, Service Indicator
(Superseded to 7103774YP)

$60.99

$

Usually ships in 2-12 days

0

12

Snapper 7300649BH

HANDLE, Connecting, 21"/22" WBM
(Superseded to 7300649BHYP)

$28.99

$

Usually ships in 2-12 days

0

13

Snapper 7301189BH

HANDLE, Lower
(Superseded to 7301189BHYP)

$187.99

$

Usually ships in 2-12 days

0

14

Snapper 7501980

ASSEMBLY, Drive Control, MY2010 Front Wheel Drive
(Superseded to 7502635YP)

$245.99

$

Usually ships in 2-12 days

0
