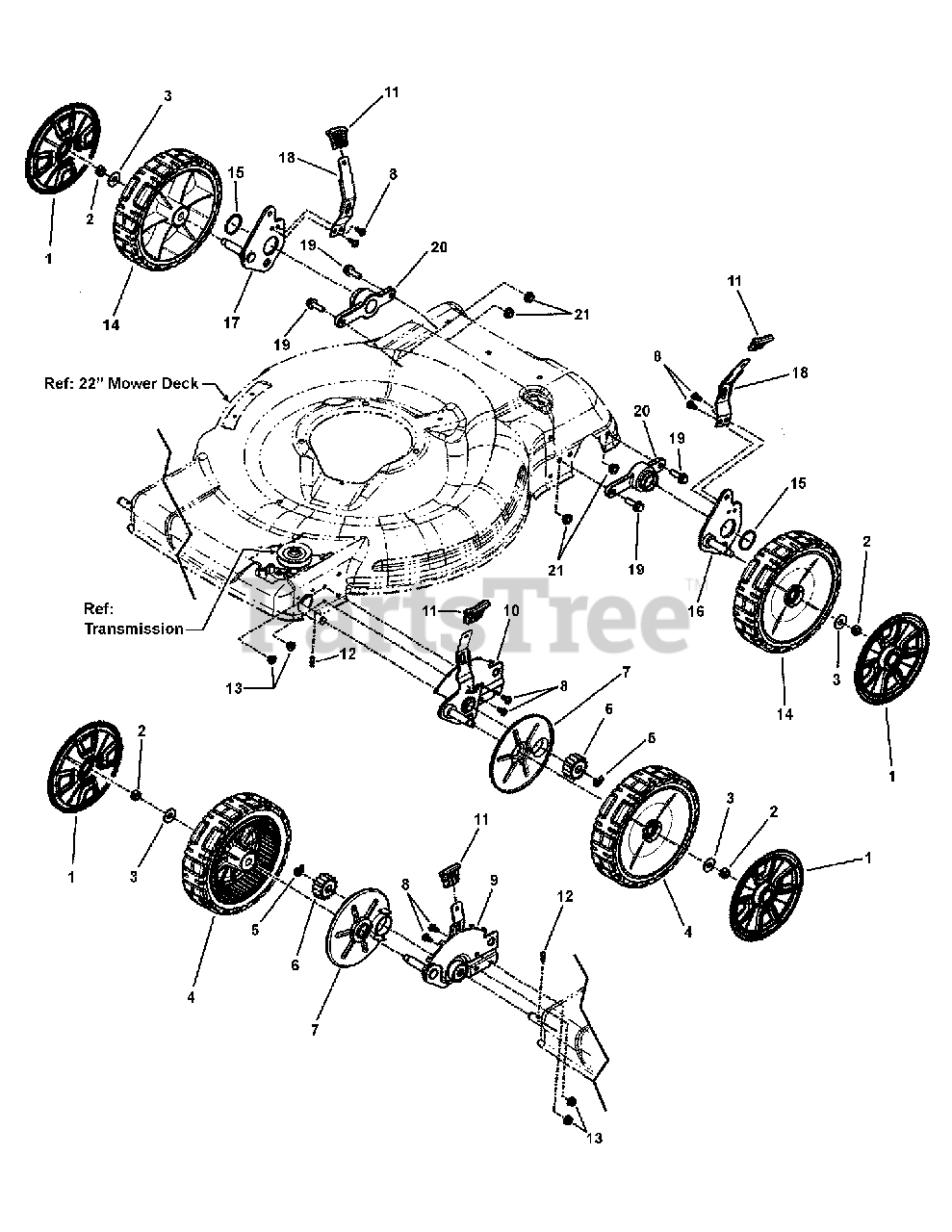

SPXV 22725 (7800832) - Snapper 22" Walk-Behind Mower, 7.25hp Wheels Group Parts Diagram

22" Walk-Behind Mower, 7.25hp

Wheels Group Parts Diagram

  • Title

1

Snapper 7102507

HUBCAP, 8" & 9" Spoked Wheel, Snapper Cool Gray
(Superseded to 7102507YP)

Note: (was 7101350)

$3.99

$

In Stock, Qty 15

0

2

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

3

Snapper 722604

WASHER, 1" O.D. x .387 I.D., Flat
(Superseded to 703966)

$4.49

$

In Stock, only 3 left!

0

4

Snapper 7502545

WHEEL, 8 x 2" Drive w/Bushing, Snapper
(Superseded to 7502545YP)

$40.99

$

In Stock, only 3 left!

0

5

Snapper 7014341

RETAINING RING, .392 Ext.
(Superseded to 703976)

Note: (Waldes No. 5133-50 or equiv.)

$4.49

$

In Stock, Qty 11

0

6

Snapper 7101207

GEAR, Pinion, 22" WBM, Front Wheel Drive
(Superseded to 7101207YP)

$8.99

$

In Stock, only 2 left!

0

7

Snapper 7101402

SHIELD, Dust, 22" WBM, Front Wheel Drive
(Superseded to 7101402YP)

$7.99

$

In Stock, only 2 left!

0

8

Snapper 7900067

SCREW, 1/4-20 x .550" Pan Head Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 15

0

9

Snapper 7600104

ASSEMBLY, Height-of-Cut, RF, Propelled
(Superseded to 7600104YP)

$

$

Not available

10

Snapper 7600105

ASSEMBLY, Height-of-Cut, LF, Propelled
(Superseded to 7600105YP)

$87.99

$

Usually ships in 2-12 days

0

11

Snapper 7103793

GRIP, Height Latch - Black (1.7" Wide)
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7101270

DRIVE PIN, 22" WBM
(Superseded to 7101270YP)

$5.49

$

In Stock, only 2 left!

0

13

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

14

Snapper 7502544

WHEEL, 8 x 2" Idle w/Bushing, Snapper
(Superseded to 7502544YP)

$38.99

$

In Stock, only 2 left!

0

15

Snapper 7900010

SNAP RING, 1-3/8"
(Superseded to 7900010YP)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7501518

ASSEMBLY, Rear Axle, LH
(Superseded to 7501518YP)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper 7501516

ASSEMBLY, Rear Axle, RH
(Superseded to 7501516YP)

$13.99

$

Usually ships in 2-12 days

0

18

Snapper 7103550

LEVER, Rear, 4 Point HOC
(Superseded to 7103550YP)

$8.99

$

Usually ships in 2-12 days

0

19

Snapper 7091591

BOLT, 5/16-18 x 1" Hex Flange lock, GR 5, YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7103290

HOLDER, Bearing
(Superseded to 7103290YP)

$14.99

$

Usually ships in 2-12 days

0

21

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0
