SPZ52-22FX - Scag Patriot 52" Zero-Turn Mower, 22hp Kawasaki (SN: N8000000 - N8099999) BRAKE COMPONENTS - SPZ Parts Diagram

Patriot 52" Zero-Turn Mower, 22hp Kawasaki

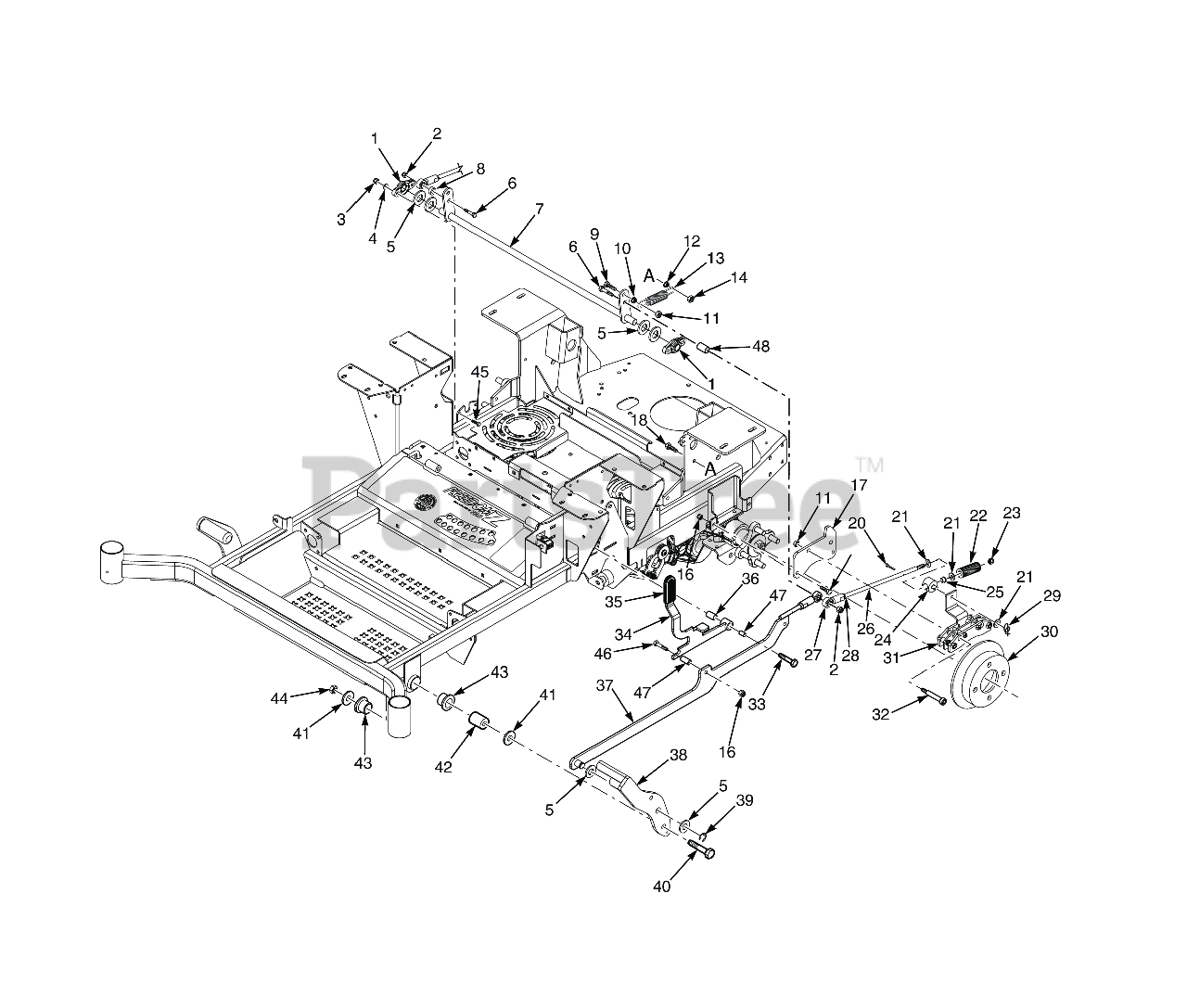

BRAKE COMPONENTS - SPZ Parts Diagram

  • Title

1

Scag 483504

Bearing

$17.99

$

Usually ships in 2-12 days

0

2

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

4

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, Qty 7

0

5

Scag 04040-09

Flatwasher, 5/8" (.656 x 1.312 x .095")

$0.99

$

In Stock, Qty 13

0

6

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

7

Scag 452269

Weldment, Brake Lever

$45.99

$

Usually ships in 2-12 days

0

8

Scag 43674

Spacer, Idler Pulley - SFZ52

$2.49

$

Usually ships in 2-12 days

0

9

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 15

0

10

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

11

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

12

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

0

13

Scag 484038

Spring, Deck Lift

$26.99

$

Usually ships in 2-12 days

0

14

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

0

15

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

16

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 425680

Mounting Bracket, Brake

$15.99

$

Usually ships in 2-12 days

0

18

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 16

0

20

Scag 04061-02

Pin, Cotter 3/32 x .75"

$0.99

$

In Stock, Qty 6

0

21

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, Qty 15

0

22

Scag 484535

Spring, Brake

$10.99

$

In Stock, only 1 left!

0

23

Scag 04021-18

Nut, Elastic Stop 3/8-16, grade 8 black

$1.99

$

In Stock, Qty 11

0

24

Scag 462452

Swivel Assembly, Brake

$21.99

$

In Stock, only 1 left!

0

25

Scag 483453-23

Bearing

$5.49

$

In Stock, only 1 left!

0

26

Scag 04004-54

Link, Brake
(Superseded to 491881)

$77.99

$

Usually ships in 2-12 days

0

27

Scag 482330

Rod End, 3/8-24 RH Female

$25.99

$

In Stock, only 1 left!

0

28

Scag 04020-25

Nut, 3/8-24 UNF R.H. Thread

$0.99

$

In Stock, Qty 5

0

29

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, Qty 10

0

30

Scag 43853

Spacer, Axle

$128.99

$

Usually ships in 2-12 days

0

31

Scag 483701

Brake Caliper

$114.99

$

In Stock, only 2 left!

0

32

Scag 04009-17

Bolt, Shoulder 1/2 x 2-1/2"

$7.49

$

Usually ships in 2-12 days

0

33

Scag 04009-16

Bolt, Shoulder 1/2 x 2"

$5.49

$

Usually ships in 2-12 days

0

34

Scag 462485

Latch Assembly, Brake

$65.99

$

Usually ships in 2-12 days

0

35

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 2 left!

0

36

Scag 483453-22

Bearing

$2.99

$

Usually ships in 2-12 days

0

37

Scag 462419

Linkage Weldment Assembly, Brake

$109.99

$

Usually ships in 2-12 days

0

38

Scag 452922

Brake Pedal Weldment

$68.99

$

Usually ships in 2-12 days

0

39

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 7

0

41

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 6

0

42

Scag 43710

Spacer, Deck Lift Pivot

$18.99

$

In Stock, only 2 left!

0

43

Scag 483453-03

Bearing, Plastic

$7.99

$

In Stock, only 2 left!

0

44

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 19

0

45

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 10

0

46

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

47

Scag 43866

Sleeve, Handle Pivot

$12.99

$

In Stock, only 3 left!

0

48

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

Usually ships in 2-12 days
