Scag SPZ61-23FX - Scag Patriot 61" Zero-Turn Mower, 23hp Kawasaki (SN: M2500000 - M2599999) 61" Cutter Deck Parts Lookup with Diagrams

1

Scag 425260

Belt Cover

$55.99

$

Usually ships in 2-12 days

2

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, Qty 6

3

Scag 04112-06

Nut, 3/4-16 Spiral Lock

$11.99

$

Usually ships in 2-12 days

4

Scag 484026

Pulley, 6.32" OD - 25mm Bore

$32.99

$

In Stock, only 2 left!

5

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

6

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

7

Scag 424367

Dust Shield

$2.49

$

In Stock, Qty 9

8

Scag 483422

Pulley, 5" Idler

$20.99

$

In Stock, Qty 16

9

Scag 484031

Belt, Cutter Deck

$116.99

$

In Stock, only 1 left!

10

Scag 424479

Brace, Pulley

$5.49

$

Usually ships in 2-12 days

11

Scag 43711

Spacer

$6.99

$

Usually ships in 2-12 days

12

Scag 425264

Support, Idler Pivot

$19.99

$

Usually ships in 2-12 days

13

Scag 04021-22

Nut, Elastic Stop

$0.99

$

In Stock, Qty 20+

14

Scag 04030-03

Lockwasher, 5/16 Spring

$0.99

$

In Stock, Qty 20+

15

Scag 483453-03

Bearing

$7.99

$

In Stock, only 4 left!

16

Scag 462037

Idler Arm

Note: (incl. item #15)

$93.99

$

Usually ships in 2-12 days

17

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 12

18

Scag 43708

Pivot, Idler

$32.99

$

In Stock, only 2 left!

19

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Gr.8

$0.99

$

In Stock, Qty 20+

20

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

21

Scag 483375

Spring, Idler

$87.99

$

Usually ships in 2-12 days

22

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

23

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special Lock

$1.49

$

In Stock, Qty 10

24

Scag 462227

Cutter Deck w/Decals, SFZ61

$1581.99

$

Usually ships in 2-12 days

25

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 13

26

Scag 482879

Cutter Blade, 21"

$26.99

$

In Stock, Qty 20+

27

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

28

Scag 04030-07

Lockwasher, 1/2 Spring

$1.49

$

In Stock, Qty 20+

29

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$2.49

$

In Stock, Qty 20+

30

Scag 461950

Spindle Assembly

$140.99

$

Usually ships in 2-12 days

31

Scag 483304

Debris Shield

$6.49

$

In Stock, only 4 left!

32

Scag 483303

Bearing

$13.99

$

In Stock, only 3 left!

33

Scag 43693

Spacer

$22.99

$

Usually ships in 2-12 days

34

Scag 462014

Spindle Housing Assembly

Note: (Incl. item #32, 33)

$132.99

$

In Stock, only 1 left!

35

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 1 left!

36

Scag 43695

Shaft, Spindle

$50.99

$

In Stock, only 1 left!

37

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 13

38

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

39

Scag 481632

Wheel, Anti-Scalp

$27.99

$

In Stock, Qty 20+

40

Scag 04017-27

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$1.49

$

In Stock, Qty 20+

41

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

42

Scag 422478

Bracket, Anti-Scalp

$28.99

$

In Stock, Qty 13

43

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

44

Scag 461926

Shaft Weldment

(Superseded to 451926) 

$26.99

$

Usually ships in 2-12 days

45

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

46

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 4 left!

47

Scag 483361

Lever, Deck Level

$22.99

$

In Stock, only 1 left!

48

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 9

49

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

50

Scag 462213

Discharge Chute Assembly

$102.99

$

Usually ships in 2-12 days

50

Scag 462476

CA Discharge Chute, 61

Note: California Models Only (not shown)

$138.99

$

Usually ships in 2-12 days

51

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 8

52

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 15

53

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

54

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

55

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

56

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

57

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .1875

$3.49

$

Usually ships in 2-12 days

57

Scag 425867

Turbo Baffle

Note: California Models Only (not shown)

$37.99

$

Usually ships in 2-12 days

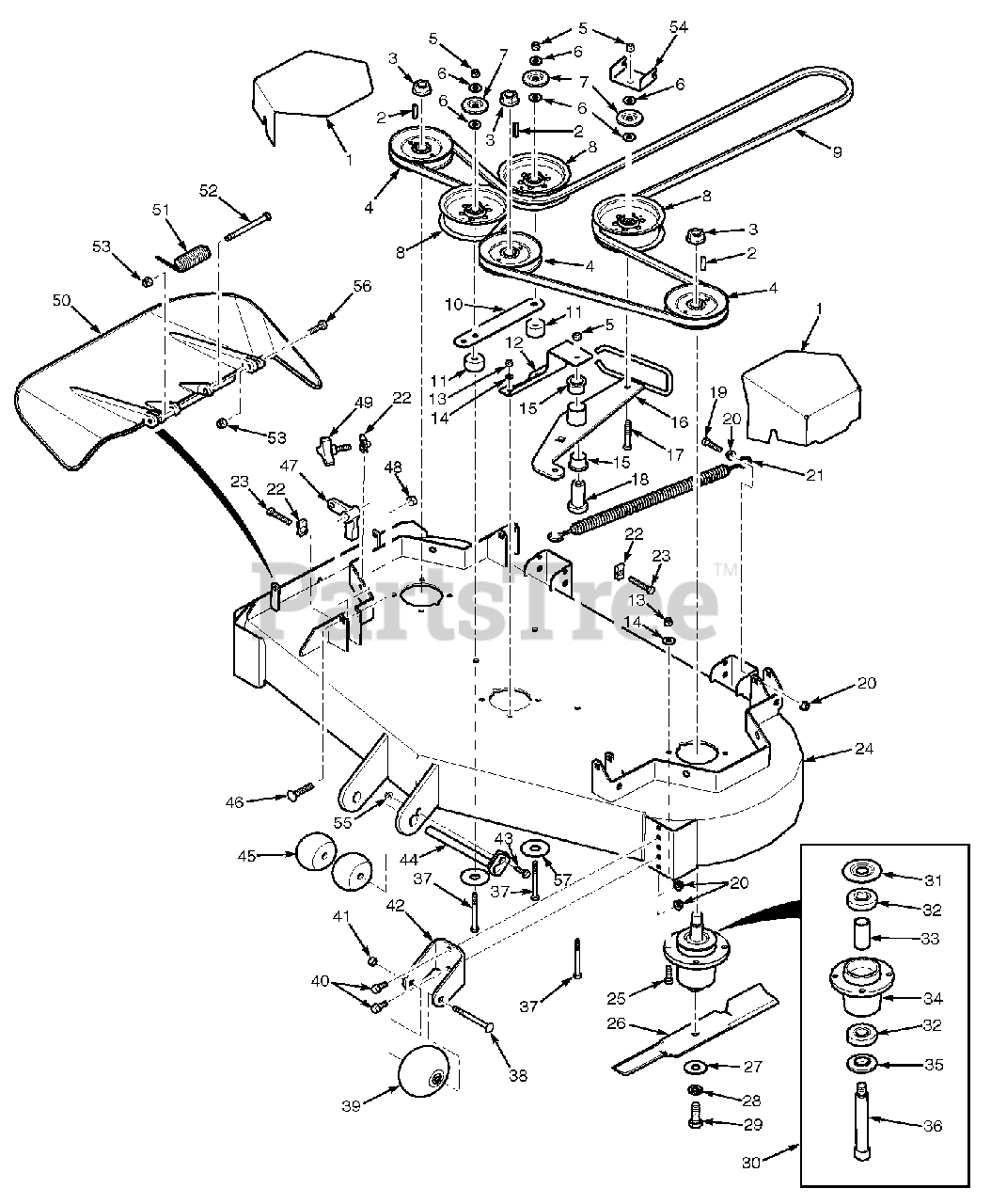

SPZ61-23FX - Scag Patriot 61" Zero-Turn Mower, 23hp Kawasaki (SN: M2500000 - M2599999) 61" Cutter Deck Parts Diagram

61" Cutter Deck Parts Diagram
