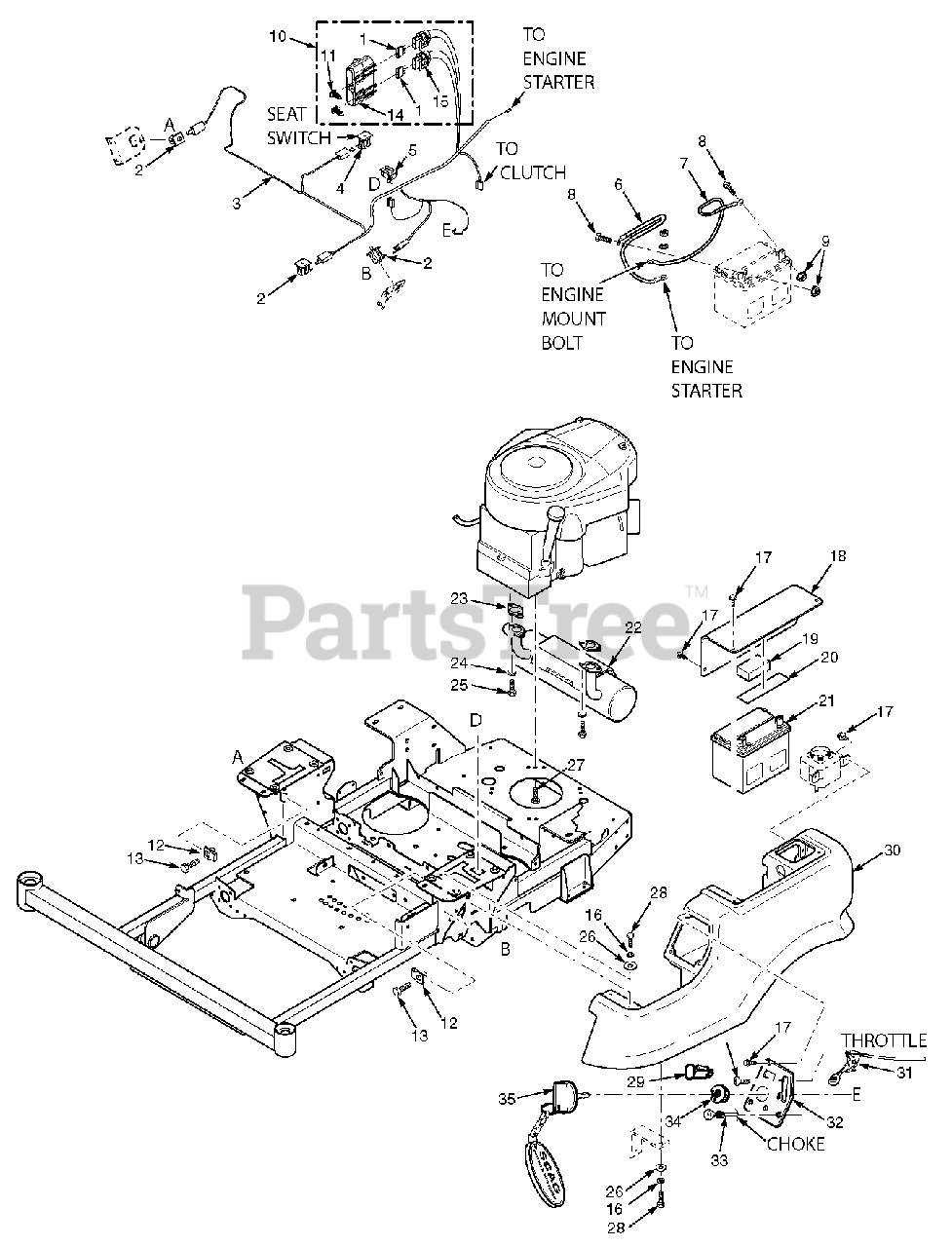

SPZ61-23FX - Scag Patriot 61" Zero-Turn Mower, 23hp Kawasaki (SN: M2500000 - M2599999) Exhaust And Electrical System - SPZ Parts Diagram

Patriot 61" Zero-Turn Mower, 23hp Kawasaki

Exhaust And Electrical System - SPZ Parts Diagram

  • Title

1

Scag 48298

Fuse, 20 amp

$3.99

$

Usually ships in 2-12 days

0

2

Scag 483473

Switch

$17.99

$

In Stock, only 2 left!

0

3

Scag 484433

Wire Harness, Main

$373.99

$

Usually ships in 2-12 days

0

3

Scag 483529

Wire Harness Adapter, Kawasaki (not shown)

$18.99

$

Usually ships in 2-12 days

0

4

Scag 483474

Switch, Seat

$32.99

$

In Stock, only 1 left!

0

5

Scag 484565

Hourmeter

$63.99

$

In Stock, only 2 left!

0

6

Scag 48029-13

Battery Cable, Red 25"

$14.99

$

In Stock, only 2 left!

0

7

Scag 48029-11

Battery Cable, Black 27"

$14.99

$

In Stock, only 1 left!

0

8

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 10

0

9

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 9

0

10

Scag 483642

Double Fuse Assy.

Note: (incl. items 1, 14, 15, 46)

$54.99

$

Usually ships in 2-12 days

0

11

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

12

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

13

Scag 04107-03

Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock

$1.49

$

In Stock, Qty 6

0

14

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

15

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 10

0

16

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

17

Scag 04017-04

Bolt, Hex Head 1/4-20 x 1/2" Serr. Flange

$0.99

$

In Stock, Qty 20+

0

18

Scag 461996

Battery Cover

Note: (incl. items 19 & 20)

$41.99

$

In Stock, only 1 left!

0

19

Scag 483452

Pad, Battery Hold Down
(Superseded to 485506)

$3.99

$

In Stock, only 1 left!

0

20

Scag 483508

Rubber Pad

$18.99

$

In Stock, only 1 left!

0

21

Scag 483665

Battery (not avail. through Scag)

$

$

Not available

22

Scag 484209

Muffler, Kawasaki

$194.99

$

Usually ships in 2-12 days

0

23

Exhaust Gasket

Note: Available through individual engine manufacturer.

$

$

Not available

24

Lockwasher

Note: Available through individual engine manufacturer.

$

$

Not available

25

Bolt

Note: Available through individual engine manufacturer.

$

$

Not available

26

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 14

0

27

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4" (Kawasaki)

$0.99

$

In Stock, Qty 15

0

27

Scag 04030-04

Lockwasher, 3/8" Spring (Kawasaki)

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 483957

PTO Switch
(Superseded to 463034)

$46.99

$

In Stock, Qty 20+

0

30

Scag 485709

Tank, LH - SPZ

$211.99

$

Usually ships in 2-12 days

0

31

Scag 483434

Throttle Cable

$25.99

$

In Stock, only 3 left!

0

32

Scag 462036

Instrument Panel w/Decal
(Superseded to 462322)

$22.99

$

Usually ships in 2-12 days

0

33

Scag 483435

Choke Cable

$26.99

$

In Stock, only 3 left!

0

34

Scag 483472

Ignition Switch

$22.99

$

In Stock, Qty 7

0

35

Scag 483366

Key, Ignition
(Superseded to 462069)

$9.99

$

In Stock, Qty 10

0

35

Scag 483609

Key w/Shroud

$2.99

$

In Stock, only 2 left!

0

35

Scag 462069

Key Assembly w/Fob

$9.99

$

In Stock, Qty 10
