SPZ61-23FX - Scag Patriot 61" Zero-Turn Mower, 23hp Kawasaki (SN: N8200000 - N8299999) EXHAUST AND ELECTRICAL SYSTEM - SPZ Parts Diagram

Patriot 61" Zero-Turn Mower, 23hp Kawasaki

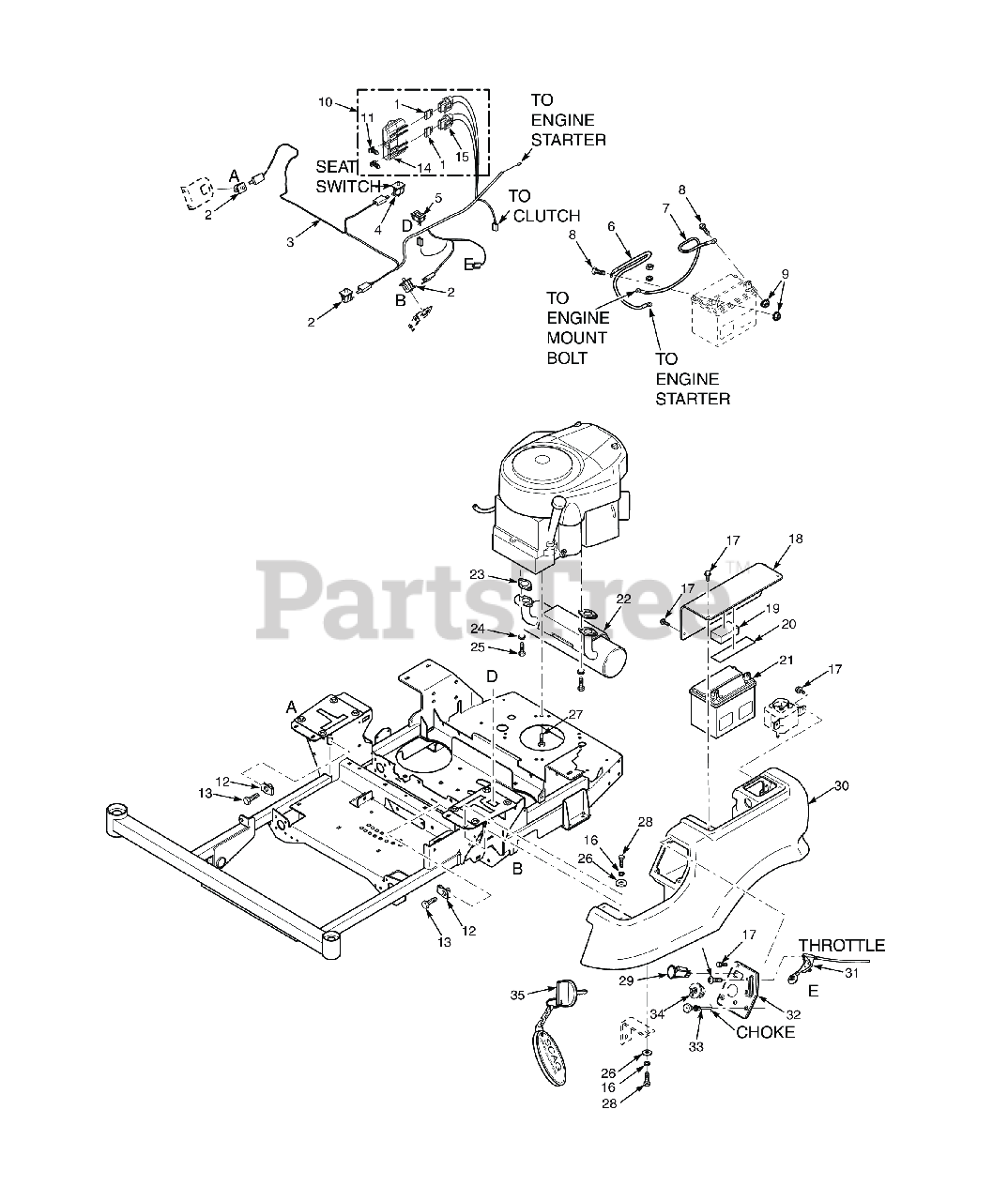

EXHAUST AND ELECTRICAL SYSTEM - SPZ Parts Diagram

  • Title

1

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

2

Scag 483473

Switch, Double Pole - Plunger

$17.99

$

In Stock, only 2 left!

0

3

Scag 486123

Wire Harness, Main

$211.99

$

Usually ships in 2-12 days

0

Scag 483529

Wire Harness Adapter, Kawasaki (not shown)

$18.99

$

Usually ships in 2-12 days

0

Scag 486134

Wire Harness Adapter, Kohler (not shown)

$19.99

$

Usually ships in 2-12 days

0

4

Scag 483474

Switch, Double Pole - Twist

$32.99

$

In Stock, only 1 left!

0

5

Scag 484565

Hour Meter, Inductive

$63.99

$

In Stock, only 1 left!

0

6

Scag 48029-13

Battery Cable, 25" Red (Kawasaki)

$14.99

$

In Stock, only 2 left!

0

7

Scag 48029-11

Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton

$14.99

$

In Stock, only 1 left!

0

8

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5" Battery, (Not Available Through Scag)

$0.99

$

In Stock, Qty 10

0

9

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 9

0

10

Scag 483642

Double Fuse Assy.

$54.99

$

Usually ships in 2-12 days

0

11

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

12

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

13

Scag 04107-03

Bolt, Hex Head 3/8-16 x 1-1/4" with Thread Lock Patch

$1.49

$

In Stock, Qty 6

0

14

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

15

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 10

0

16

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

17

Scag 04017-04

CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 20+

0

18

Scag 461996

Battery Cover

$41.99

$

In Stock, only 1 left!

0

19

Scag 485506

Pad, Battery - Rubber

$3.99

$

In Stock, only 1 left!

0

20

Scag 483508

Rubber Pad

$18.99

$

In Stock, only 1 left!

0

21

Scag 483665

Battery, 350 CCA (not available through Scag)

$

$

Not available

22

Scag 484209

Muffler, Kawasaki FS/FX

$194.99

$

Usually ships in 2-12 days

0

Scag 486141

Muffler, Kohler

$185.99

$

In Stock, only 1 left!

0

23

Exhaust Gasket

Note: Available through engine manufacturer only.

$

$

Not available

24

Lockwasher

Note: Available through engine manufacturer only.

$

$

Not available

25

Bolt

Note: Available through engine manufacturer only.

$

$

Not available

26

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

0

27

Scag 04011-07

Bolt, Hex Head Self-Tap 3/8-16 x 1-1/4" (Kohler x3 - 25EFI, Kohler x4 - 29EFI)

$3.49

$

In Stock, Qty 11

0

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 15

0

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 485833

Switch, PTO - 10 Amp

$48.99

$

Usually ships in 2-12 days

0

30

Scag 463119

Tank, LH - SPZ

$271.99

$

Usually ships in 2-12 days

0

31

Scag 483434

Throttle Cable, Briggs & Stratton

$25.99

$

In Stock, only 3 left!

0

32

Scag 462036

Instrument Panel w/Decal
(Superseded to 462322)

$22.99

$

Usually ships in 2-12 days

0

33

Scag 483435

Choke Cable, Briggs & Stratton

$26.99

$

In Stock, only 3 left!

0

Scag 483646

Choke Control, Kawasaki

$26.99

$

In Stock, only 1 left!

0

34

Scag 483472

Ignition Switch

$22.99

$

In Stock, Qty 5

0

35

Scag 483609

Key w/Shroud Only

$2.99

$

In Stock, only 2 left!

0

Scag 462069

Key, Assembly w/Fob

$9.99

$

In Stock, Qty 9

0
