SR 621 (12A-977A100) - Cub Cadet Walk-Behind Mower (2003) Transmission & Bag Assembly Parts Diagram

Walk-Behind Mower

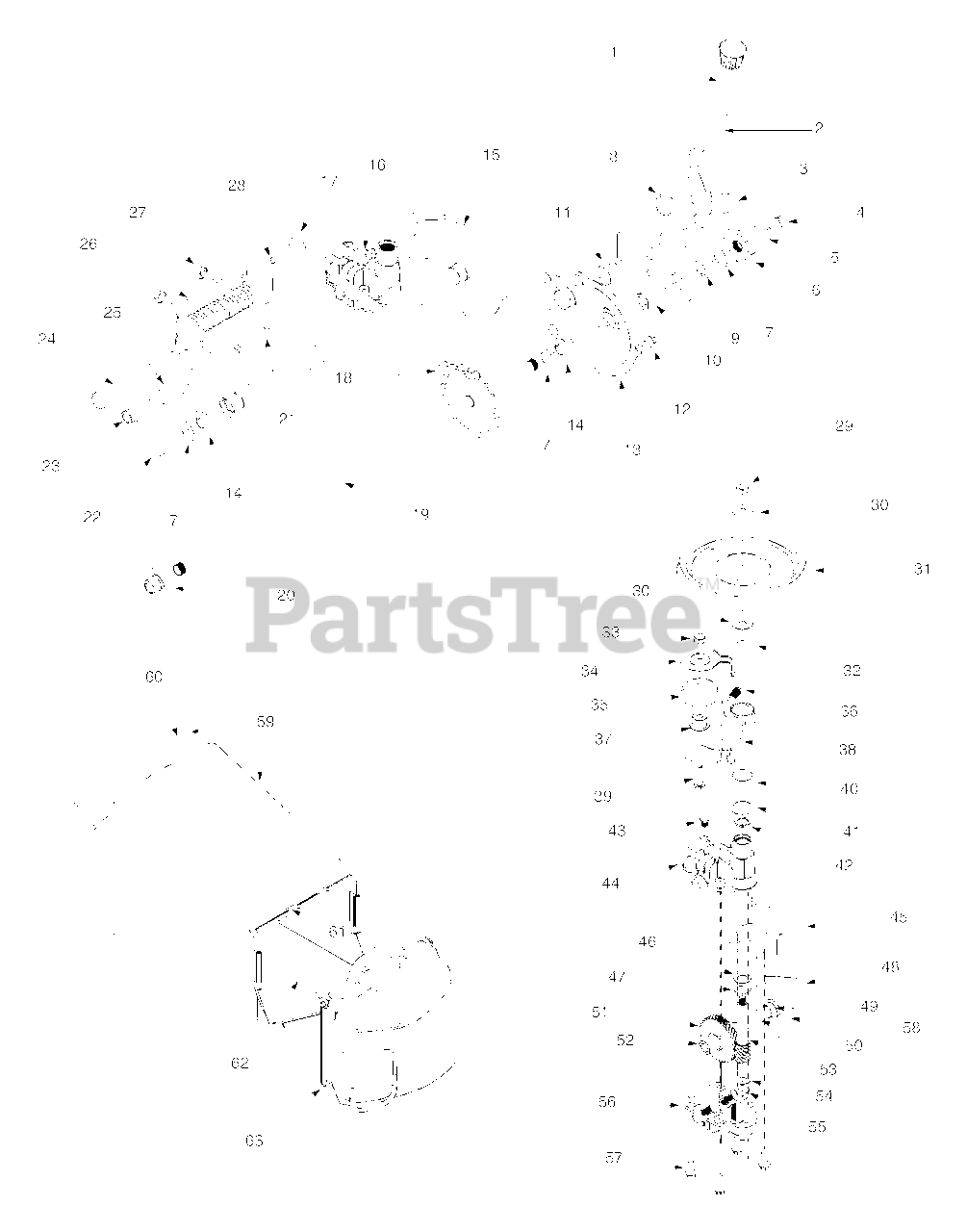

Transmission & Bag Assembly Parts Diagram

  • Title

1

Cub Cadet 720-0223

Grip

$14.99

$

In Stock, Qty 9

0

2

Cub Cadet 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 19

0

3

Cub Cadet 738-0529

Shoulder Nut .825 x .165 Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 3 left!

0

4

Cub Cadet 710-0751

Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0270

Bell Washer .285 ID x .75 OD

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 6

0

7

Cub Cadet 736-0369

Flat Washer .508 ID x 1.0 OD

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 682-0531

Pivot Arm Assembly
(Superseded to 682-0531-0637)

Variations

Cub Cadet 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 750-0515

Spacer .510 ID x .70 OD

$4.49

$

In Stock, Qty 5

0

10

Cub Cadet 741-0978

Sleeve Bearing .504 ID x .830 OD

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 750-1056

Shoulder
(Superseded to 950-1056)

$7.49

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0653

Tap Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

13

Cub Cadet 682-7528

Chain Cover Assembly
(Superseded to 682-7528-0637)

Variations

Cub Cadet 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 741-0324

Flange Bearing .506 ID x .590 Lg
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 8

0

15

Cub Cadet 682-7526

Transmission Axle Assembly
(Superseded to 682-7526-0637)

Variations

Cub Cadet 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 618-0263A

Transmission Assembly Complete
(Superseded to 918-0263A)

$271.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0604A

Hex Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 713-0453

Chain
(Superseded to 913-0453)

$12.99

$

In Stock, only 2 left!

0

19

Cub Cadet 638-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 741-0522

Flange Bearing .506 ID x .715 Lg

$8.99

$

In Stock, only 2 left!

0

21

Cub Cadet 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-0151

Spacer .550 ID x .750 OD
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-1315

Screw 3/8-16 x .25

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 711-0835

Clevis Pin .50 Dia x 4.82 Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, Qty 6

0

25

Cub Cadet 750-0807

Spacer .385 ID x .624 OD

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 782-0568

Hgt Adjustment Spring Bracket
(Superseded to 782-0568B-0637)

Variations

Cub Cadet 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 710-1652

Screw 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 16

0

29

Cub Cadet 712-3025

Hex Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0425

Bell Washer .325 ID x .930 OD

$4.99

$

In Stock, Qty 14

0

31

Cub Cadet 756-0656

Pulley

$36.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-3084

Flat Washer .510 ID x 1.120 OD

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0896

Hex Jam Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

34

Cub Cadet 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

35

Cub Cadet 741-0600

Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

36

Cub Cadet 732-0849A

Extension Spring
(Superseded to 932-0849A)

$4.49

$

In Stock, Qty 5

0

37

Cub Cadet 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 682-0027A

Idler Bracket Assembly
(Superseded to 982-0027A)

$17.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0299

Hex Cap Screw 1/4-28 x 1.0

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 2 left!

0

41

Cub Cadet 736-0570

Flat Washer .885 ID x 1.45 OD
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 721-0325

Plug

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 618-0253

Upper Housing Assembly

$

$

Not available

45

Cub Cadet 782-7601A

Cable Bracket
(Superseded to 782-7601A-0637)

Variations

Cub Cadet 782-7601A-0637

BRACKET. CABLE GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 741-0690

Bearing

$4.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0616

Thrust Washer .504 ID x .70 OD
(Superseded to 936-0616)

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 782-7595

Pivot Bracket

$26.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 741-0324

Flange Bearing
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 8

0

50

Cub Cadet 711-1168

Output Shaft 6T

$31.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 717-1469

Gear 34T

$63.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 741-0674

Bearing
(Superseded to 941-0674)

$8.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 717-1487

Pinion Shaft 10T
(Superseded to 917-1487)

$68.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-0314

Thrust Washer 3/8 x .70

$6.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 736-0569

Thrust Washer .388 x .625
(Superseded to 936-0569)

$

$

Not available

56

Cub Cadet 618-0252

Lower Housing Assembly
(Superseded to 918-0252)

$42.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 710-0642

Hex Screw 1/2-20 x .75

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 611-0066

Shaft Assembly
(Superseded to 911-0066)

$

$

Not available

59

Cub Cadet 664-0180

Grassbag
(Superseded to 964-0076A)

$98.99

$

In Stock, only 3 left!

0

60

Cub Cadet 747-0940A

Support Rod w/ Rope Guide
(Superseded to 747-0940A-0637)

Variations

Cub Cadet 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

?61

Cub Cadet 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 747-0937

Grassbag Frame
(Superseded to 747-0937-0637)

Variations

Cub Cadet 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 631-0071

Grassbag Cover

$103.99

$

In Stock, only 1 left!

0
