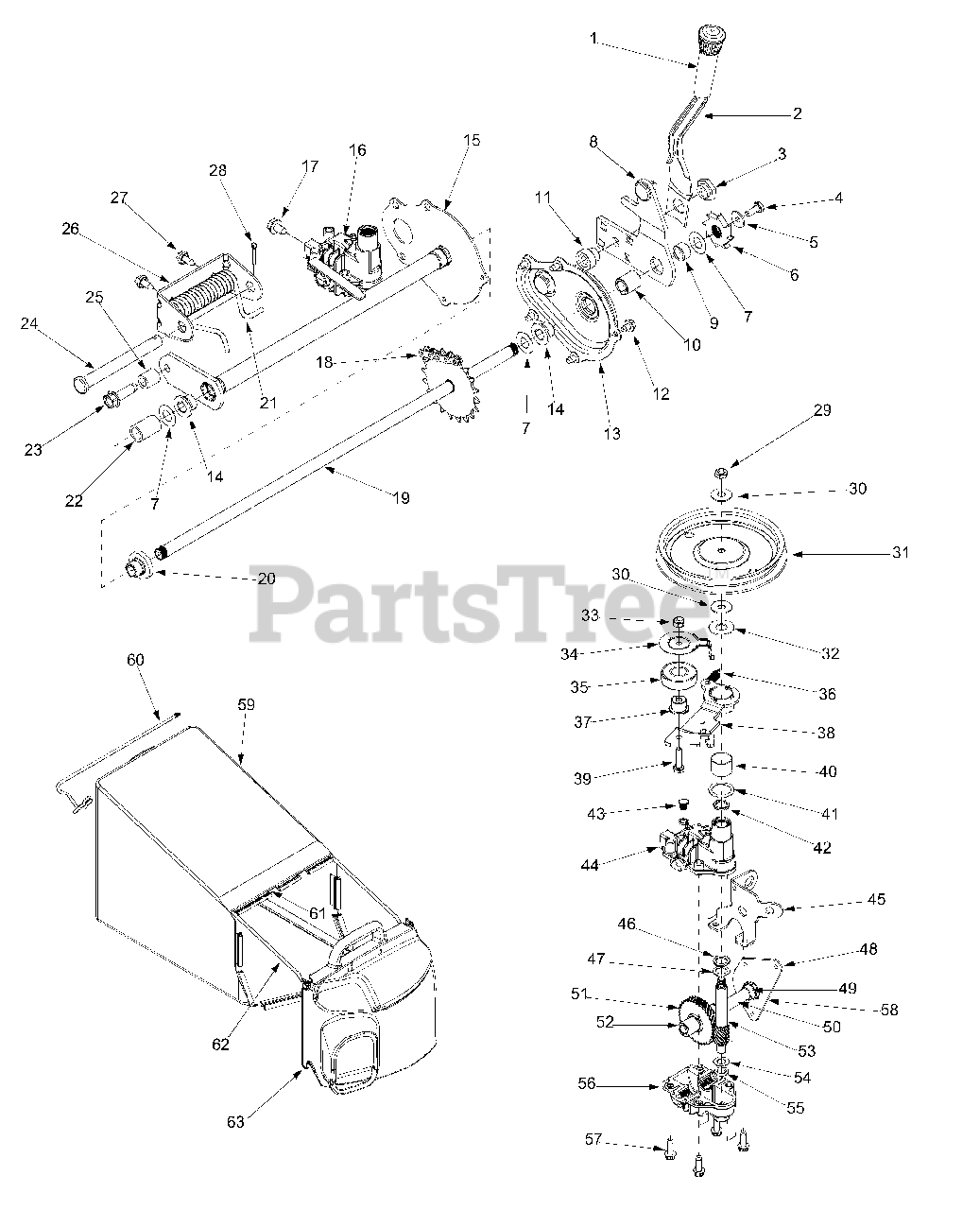

SR 621 (12A-979I100) - Cub Cadet Walk-Behind Mower (2002) Transmission & Bag Parts Diagram

Walk-Behind Mower

Transmission & Bag Parts Diagram

  • Title

1

Cub Cadet 720-0223

Grip

$13.99

$

In Stock, Qty 9

0

2

Cub Cadet 732-0803A

Spring Lever

$14.99

$

In Stock, Qty 20+

0

3

Cub Cadet 938-0529

Shoulder Nut .825 x .165 Lg.

$10.99

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0751

Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0270

Bell Washer .285 ID x .75 OD

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet 748-0318

Wheel Rachet
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 6

0

7

Cub Cadet 936-0369

Flat Washer .508 ID x 1.0 OD
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 682-0531-0637

Pivot Arm Assembly

$28.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 750-0515

Spacer .510 ID x .70 OD

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet 741-0978

Sleeve Bearing .504 ID x .830 OD

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet 950-1056

Shoulder

$6.99

$

In Stock, only 2 left!

0

12

Cub Cadet 910-0653

Tap Screw 1/4-20 x .375
(Superseded to 710-0653)

$4.49

$

In Stock, Qty 16

0

13

Cub Cadet 682-7528-0637

Chain Cover Assembly

$

$

Not available

14

Cub Cadet 941-0324

Flange Bearing .506 ID x .590 Lg
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

15

Cub Cadet 682-7526-0637

Transmission Axle Assembly

$122.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 918-0263A

Transmission Assembly

$271.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 910-0604A

Hex Screw 5/16-18
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 913-0453

Chain

$11.99

$

In Stock, only 2 left!

0

19

Cub Cadet 638-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$69.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 941-0522

Flange Bearing .506 ID x .715 Lg
(Superseded to 741-0522)

$7.99

$

In Stock, only 2 left!

0

21

Cub Cadet 732-0832

Torsion Spring

$17.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 950-0151

Spacer .550 ID x .750 OD

$9.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-1315

Screw 3/8-16 x .25

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 911-0835

Clevis Pin .50 Dia x 4.82 Lg.

$11.99

$

In Stock, Qty 6

0

25

Cub Cadet 750-0807

Spacer .385 ID x .624 OD

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 782-0568-0637

Hgt Adjustment Spring Bracket
(Superseded to 782-0568B-0637)

$

$

Not available

27

Cub Cadet 910-1652

Screw 1/4-14 x .825
(Superseded to 710-1652)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

29

Cub Cadet 712-3025

Hex Jam Nut 5/16-24

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 936-0425

Bell Washer .325 ID x .930 OD
(Superseded to 736-0425)

$

$

Not available

31

Cub Cadet 756-0656

Pulley

$34.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-3084

Flat Washer .510 ID x 1.120 OD

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0896

Hex Jam Nut 1/4-28

$4.49

$

In Stock, Qty 6

0

34

Cub Cadet 782-7598

Belt Keeper

$14.99

$

In Stock, only 1 left!

0

35

Cub Cadet 941-0600

Bearing

$23.99

$

In Stock, Qty 20+

0

36

Cub Cadet 932-0849A

Extension Spring

$3.99

$

In Stock, Qty 5

0

37

Cub Cadet 750-1050

Flange Spacer

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 982-0027A

Idler Bracket Assembly

$17.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0299

Hex Cap Screw 1/4-28 x 1.0

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-0682A

Bearing Sleeve

$10.99

$

In Stock, only 2 left!

0

41

Cub Cadet 936-0570

Flat Washer .885 ID x 1.45 OD

$5.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 921-0329

Oil Seal

$9.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 721-0325

Plug

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 618-0253

Upper Housing Assembly

$

$

Not available

45

Cub Cadet 782-7601A-0637

Cable Bracket

$

$

Not available

46

Cub Cadet 741-0690

Bearing

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 936-0616

Thrust Washer .504 ID x .70 OD

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 782-7595

Pivot Bracket

$24.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 941-0324

Flange Bearing
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

50

Cub Cadet 711-1168

Output Shaft 6T

$31.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 717-1469

Gear 34T

$58.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 941-0674

Bearing

$8.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 917-1487

Pinion Shaft 10T

$63.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 936-0314

Thrust Washer 3/8 x .70
(Superseded to 736-0314)

$

$

Not available

55

Cub Cadet 936-0569

Thrust Washer .388 x .625

$

$

Not available

56

Cub Cadet 918-0252

Lower Housing Assembly

$42.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 910-0642

Hex Screw 1/2-20 x .75
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 911-0066

Shaft Assembly

$

$

Not available

59

Cub Cadet 664-0180

Grassbag
(Superseded to 964-0076A)

$91.99

$

In Stock, only 3 left!

0

60

Cub Cadet 747-0940A-0637

Support Rod w/ Rope Guide

$25.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 747-0937-0637

Grassbag Frame

$54.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 631-0071

Grassbag Cover

$96.99

$

In Stock, only 1 left!

0
