SR 708 (SR 803) - Scag Engine CRANK CASE COVER ASSEMBLY Parts Diagram

Engine

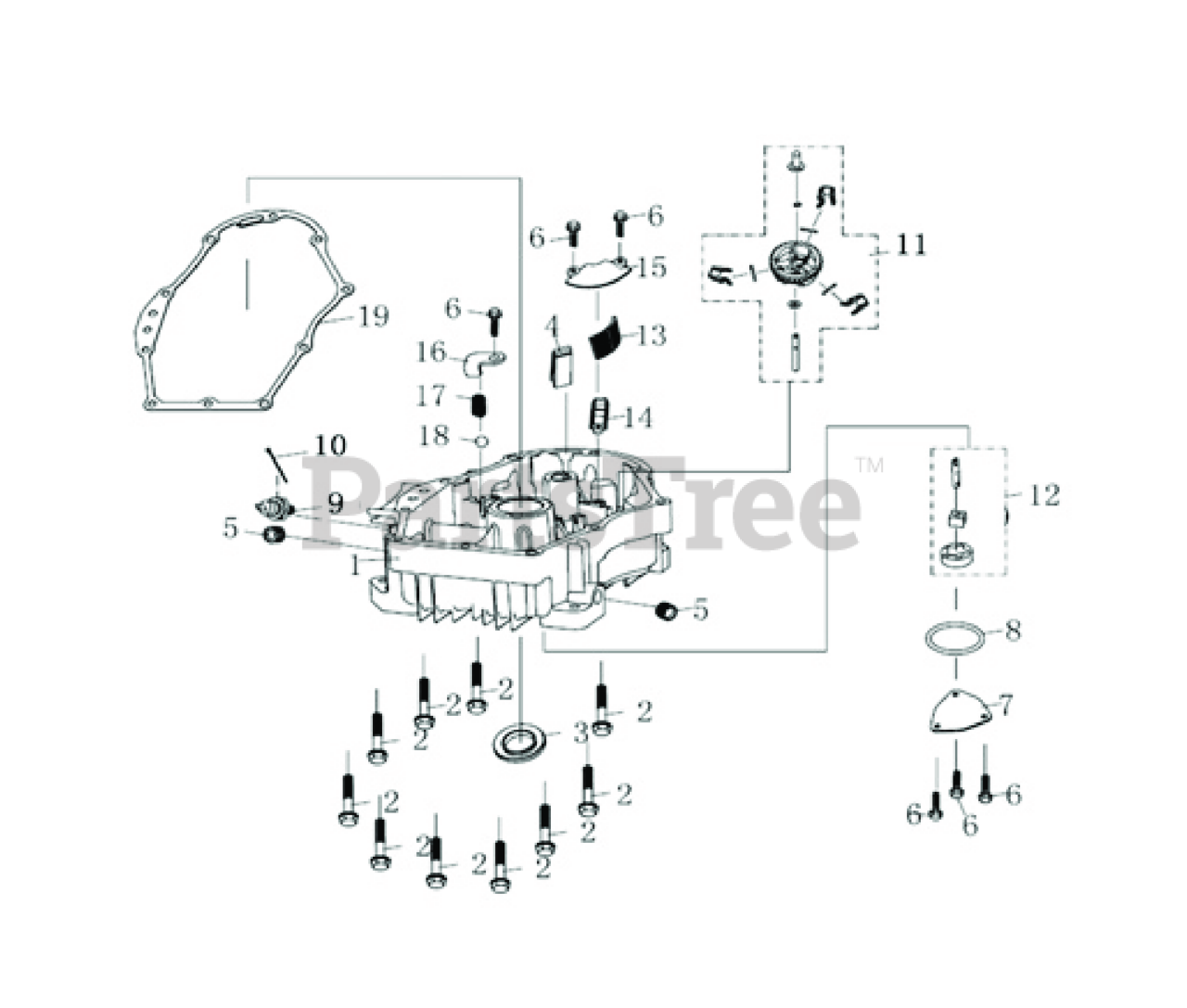

CRANK CASE COVER ASSEMBLY Parts Diagram

  • Title

1

Scag 48100-03

Bushing, oil lube - 3/4 x .50 Flanged

$2.99

$

Usually ships in 2-12 days

0

Scag 4810137

Cover, Crank Case - Europe Only

$

$

Currently unavailable

2

Scag 4810111

Bolt, Flange

$0.99

$

Usually ships in 2-12 days

0

3

Scag 4810085

Seal, Oil

$10.99

$

Usually ships in 2-12 days

0

4

Scag 4810037

Block, Oil Return

$1.49

$

Usually ships in 2-12 days

0

Scag 4810138

Block, Oil Return - Europe Only

$

$

Currently unavailable

5

Scag 4810000

Screw, Sealing Plug

$1.49

$

Usually ships in 2-12 days

0

6

Scag 4810104

Bolt, Flange

$0.99

$

Usually ships in 2-12 days

0

7

Scag 4810033

Cover, Oil Pump

$2.49

$

Usually ships in 2-12 days

0

8

Scag 4810093

Seal

$1.99

$

Usually ships in 2-12 days

0

9

Oil Level Sensor

Note: Not applicable to Scag Models

$

$

Not available

10

Cable Tie

Note: Source parts locally

$

$

Not available

11

Scag 4810060

Governor Assembly

$12.99

$

Usually ships in 2-12 days

0

12

Scag 4810032

Oil Pump

$15.99

$

Usually ships in 2-12 days

0

13

Scag 4810034

Strainer, Engine Oil

$2.99

$

Usually ships in 2-12 days

0

14

Scag 48100-12

BUSHING, OILITE, 2.505 ID

$20.99

$

Usually ships in 2-12 days

0

15

Scag 4810035

Cover, Oil Strainer

$1.99

$

Usually ships in 2-12 days

0

16

Scag 4810013

Plate, Oil Baffle

$2.49

$

Usually ships in 2-12 days

0

17

Scag 4810098

Spring, Compression

$0.99

$

Usually ships in 2-12 days

0

18

Scag 4810083

Check Ball

$0.99

$

Usually ships in 2-12 days

0

19

Scag 48100-04

BUSHING, OILLUBE - 1/2 ID X .56

$0.99

$

Usually ships in 2-12 days

0
