SRAC-2000 - Echo Tiller/Cultivator Attachment Cultivator Attachment Parts Diagram

Tiller/Cultivator Attachment

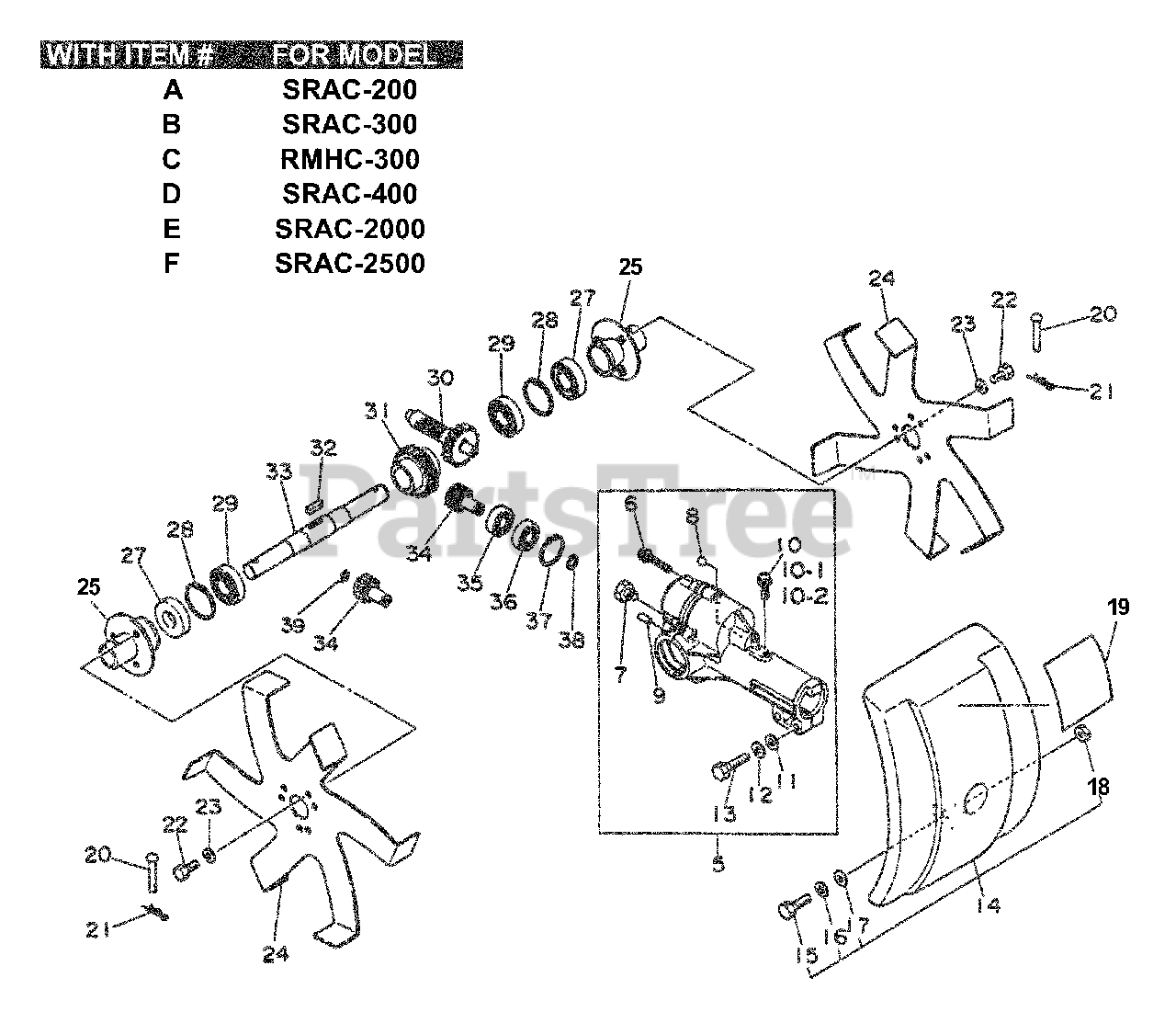

Cultivator Attachment Parts Diagram

  • Title

5

Echo 60540111050

GEAR CASE ASSY

Note: INCLUDES ITEMS 6 - 13; FOR MODEL SRAC-200

$200.99

$

Usually ships in 2-4 days

0

5

Echo 60540111150

CASE, GEAR
(Superseded to Discontinued)

Note: NOT AVAILABLE; FOR MODELS SRAC-300, RMHC-300, SRAC-400

$

$

Not available

5

Echo 60540111950

CASE, GEAR
(Superseded to Discontinued)

Note: INCLUDES ITEMS 6 - 13; FOR MODELS SRAC-2000, SRAC-2500

$

$

Not available

6

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

7

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 10

0

8

Echo 90073101004

BALL, STEEL

$0.99

$

Usually ships in 2-4 days

0

9

Echo 60543011050

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90022005014

SCREW - 5X14

$0.99

$

In Stock, Qty 7

0

10-1

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

10-2

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 8

0

12

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010006025

BOLT - 6X25

$0.99

$

In Stock, Qty 10

0

14

Echo 69400011050

SHIELD
(Superseded to 69400012050)

Note: INCLUDES ITEMS 15 - 18; FOR MODELS SRAC-200, SRAC-2000, SRAC-2500

$19.99

$

Usually ships in 2-4 days

0

14

Echo 69400011150

SHIELD
(Superseded to Discontinued)

Note: INCLUDES ITEMS 15 - 18; FOR MODELS SRAC-300, RMHC-300, SRAC-400

$

$

Not available

15

Echo 90010006020

BOLT - 6X20

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 20+

0

17

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 8

0

18

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

19

Echo 89031711051

LABEL
(Superseded to Discontinued)

$

$

Not available

20

Echo 60561111050

PIN - CLEVIS

$2.49

$

In Stock, Qty 5

0

21

Echo 60561211050

PIN, SPLIT

$1.99

$

In Stock, only 4 left!

0

22

Echo 90010006010

BOLT - 6X10

$0.99

$

In Stock, only 1 left!

0

23

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 20+

0

24

Echo 69001011050

BLADE, CULTIVATOR

$40.99

$

Usually ships in 2-4 days

0

25

Echo 60561011050

HUB, CLUTCH

$18.99

$

Usually ships in 2-4 days

0

27

Echo 60541611050

SEAL, OIL - 17

$6.99

$

In Stock, only 4 left!

0

28

Echo 90070200030

RING, RETAINING - 30

$2.49

$

In Stock, only 1 left!

0

29

Echo 90085506903

BEARING, BALL - 6903

$21.99

$

Usually ships in 2-4 days

0

30

Echo 60530511050

GEAR - DRIVE

$66.99

$

Usually ships in 2-4 days

0

31

Echo 60531511050

WHEEL, WORM

$121.99

$

Usually ships in 2-4 days

0

32

Echo 90032504015

KEY

$3.99

$

Usually ships in 2-4 days

0

33

Echo 60531411050

SHAFT, WORM GEAR
(Superseded to Discontinued)

$

$

Not available

34

Echo 60531011050

GEAR - DRIVE

Note: FOR MODEL SRAC-200

$56.99

$

In Stock, only 1 left!

0

34

Echo 60531011150

GEAR - DRIVE
(Superseded to Discontinued)

Note: FOR MODEL SRAC-300

$

$

Not available

34

------------------

GEAR

Note: FOR MODEL RMHC-300; N/A

$

$

Not available

34

Echo 60531011250

GEAR
(Superseded to Discontinued)

Note: FOR MODEL SRAC-400

$

$

Not available

34

Echo 60531011950

GEAR

Note: FOR MODEL SRAC-2000

$55.99

$

Usually ships in 2-4 days

0

34

Echo 60531012050

GEAR

Note: FOR MODEL SRAC-2500

$56.99

$

Usually ships in 2-4 days

0

35

Echo 90080000609

BEARING, BALL - 609

Note: FOR MODEL SRAC-200

$10.99

$

In Stock, Qty 7

0

35

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

Note: FOR MODELS SRAC-300, RMHC-300, SRAC-400

$10.99

$

In Stock, only 4 left!

0

35

Echo 90085506900

BEARING, BALL - 6900

Note: FOR MODELS SRAC-2000, SRAC-2500

$20.99

$

In Stock, only 2 left!

0

36

Echo 90080300609

BEARING, BALL - 609

Note: FOR MODEL SRAC-200

$17.99

$

Usually ships in 2-4 days

0

36

Echo 90080306001

BEARING, BALL - 6001Z

Note: FOR MODELS SRAC-300, RMHC-300, SRAC-400

$17.99

$

Usually ships in 2-4 days

0

36

Echo 90085506900

BEARING, BALL - 6900

Note: FOR MODELS SRAC-2000, SRAC-2500

$20.99

$

In Stock, only 2 left!

0

37

Echo 90070200022

RING, RETAINING - 22

Note: FOR MODELS SRAC-200, SRAC-2000, SRAC-2500

$2.49

$

In Stock, Qty 15

0

37

Echo 90070200028

RING, RETAINING - 28

Note: FOR MODELS SRAC-300, RMHC-300, SRAC-400

$1.99

$

In Stock, Qty 20+

0

38

Echo 90070600009

RING, RETAINING - 9

Note: FOR MODEL SRAC-200

$1.49

$

In Stock, Qty 17

0

38

Echo 90070100012

RING, RETAINING - 12

Note: FOR MODELS SRAC-300, RMHC-300, SRAC-400

$0.99

$

In Stock, Qty 19

0

38

Echo 90070600010

RING, RETAINING - 10

Note: FOR MODELS SRAC-2000, SRAC-2500

$1.49

$

In Stock, Qty 20+

0

39

Echo 90070700007

RING, RETAINING - 7
(Superseded to Discontinued)

Note: FOR MODEL SRAC-400

$

$

Not available
