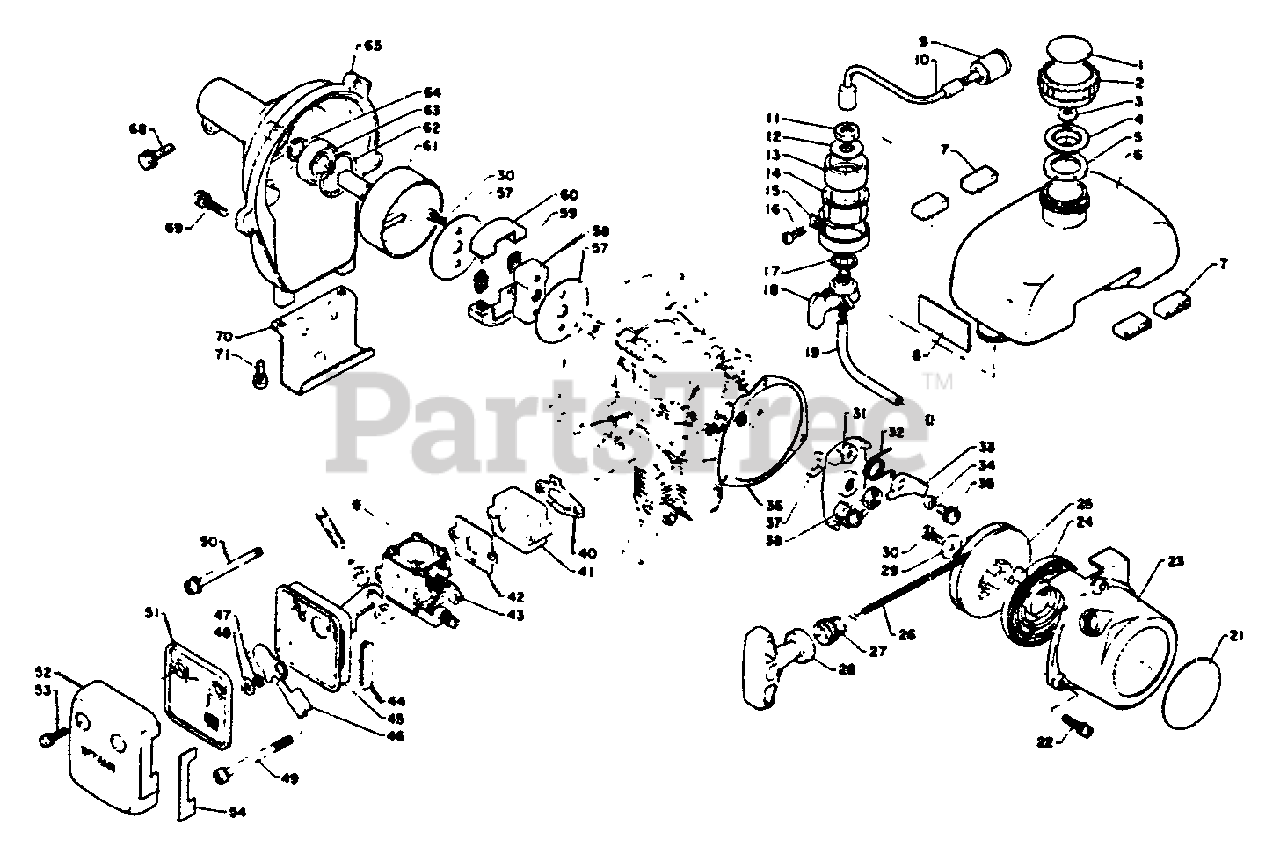

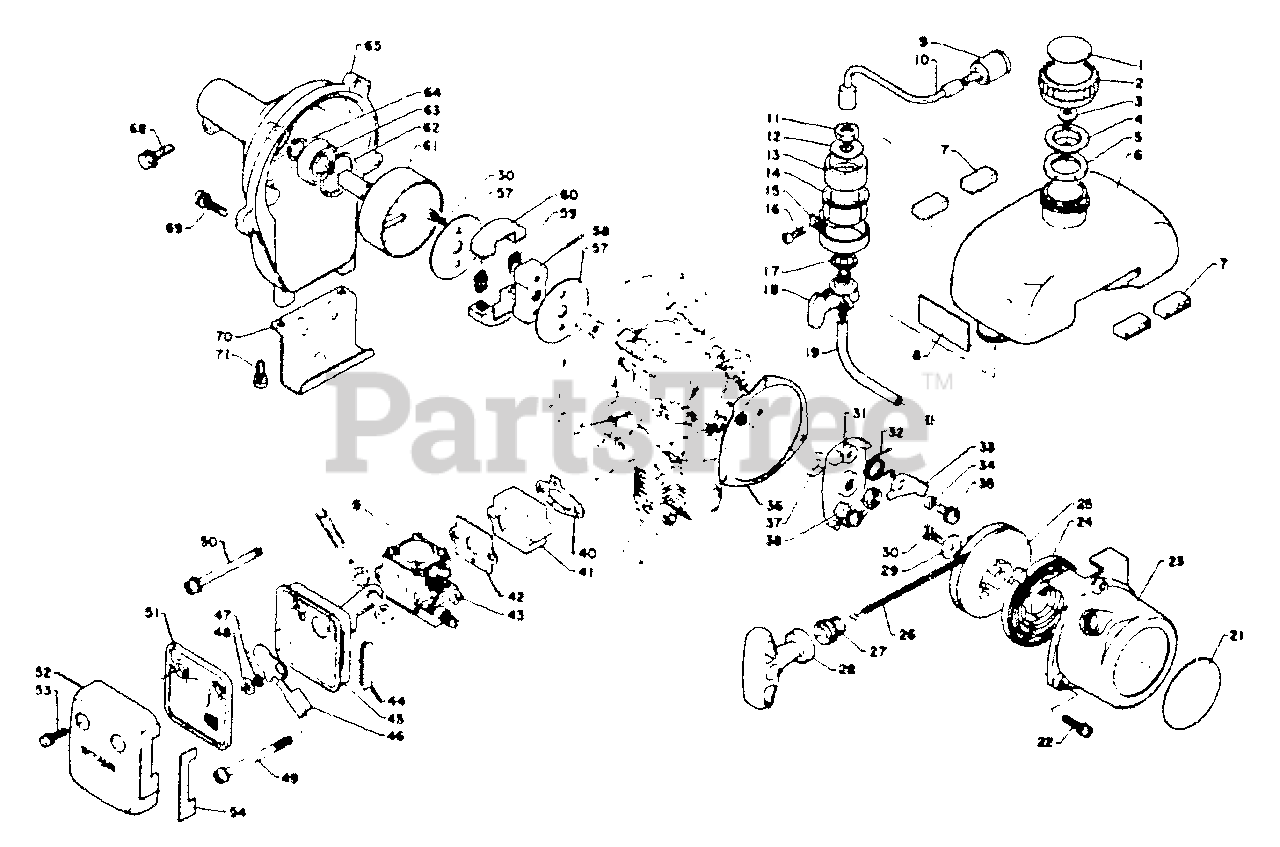

SRM-140 D - Echo String Trimmer Clutch, Exhaust, Fan Case, Fuel System, Intake, Starter Parts Diagram

String Trimmer

Clutch, Exhaust, Fan Case, Fuel System, Intake, Starter Parts Diagram

  • Title

1

Echo 89014703930

LABEL - FUEL MIX
(Superseded to 89015415130)

$1.49

$

In Stock, only 1 left!

0

Echo 13100404930

CAP ASSY
(Superseded to 13160010530)

Note: Includes item 2 thru 5

$

$

Not available

2

Echo 13101704930

CAP
(Superseded to Discontinued)

$

$

Not available

3

Echo 13131400330

VALVE, CHECK

$13.99

$

In Stock, only 2 left!

0

4

Echo 13101504930

HOLDER, CHECK VALVE
(Superseded to 13101504931)

$

$

Not available

5

Echo 13101604930

GASKET, CAP
(Superseded to 13101604931)

$

$

Not available

6

Echo 13101006530

TANK, FUEL
(Superseded to 13100207330)

$

$

Not available

7

Echo 13192005930

CUSHION, FUEL TANK
(Superseded to 13100207330)

$

$

Not available

8

Echo 89015906530

LABEL - FUEL VALVE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13120506530

FILTER, FUEL
(Superseded to 13120507320)

$6.49

$

In Stock, Qty 20+

0

10

Echo 13201004630

PIPE, FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

11

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

12

Echo 13221706530

WASHER
(Superseded to Discontinued)

$

$

Not available

13

Echo 13222006530

USE 132220-05020
(Superseded to 13222005020)

$

$

Not available

14

Echo 13221906530

COLLAR
(Superseded to 13221907330)

$

$

Not available

15

Echo 13250506530

CLAMP

$3.99

$

Usually ships in 2-4 days

0

16

Echo 90022004014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

17

Echo 13221806530

GASKET
(Superseded to Discontinued)

$

$

Not available

18

Echo 13220006530

FUEL VALVE ASSY

$13.99

$

Usually ships in 2-4 days

0

19

Echo 13201006530

PIPE, FUEL 3×6×85 BLACK
(Superseded to 13201006531)

$2.99

$

In Stock, only 2 left!

0

21

Echo 89011206030

LABEL - ECHO
(Superseded to 89015111231)

$

$

Not available

22

Echo 90024204018

SCREW 4×18

$0.99

$

In Stock, Qty 7

0

Echo 17720006030

STARTER ASSY
(Superseded to Discontinued)

Note: Includes items 23 thru 30

$

$

Not available

23

Echo 17720906030

CASE, STARTER

$

$

Not available

24

Echo 17722006530

SPRING, RECOIL

$16.99

$

In Stock, only 2 left!

0

25

Echo 17721506530

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

26

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, only 4 left!

0

27

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

28

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

29

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

30

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

31

Echo 17721006530

PAWL CATCHER
(Superseded to Discontinued)

$

$

Not available

32

Echo 17723406530

SPRING

$1.49

$

In Stock, Qty 6

0

33

Echo 17721806530

RATCHET
(Superseded to Discontinued)

$

$

Not available

34

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

35

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

36

Echo 10061506530

GASKET, STARTER

$1.49

$

Usually ships in 2-4 days

0

37

Echo 10014605930

WASHER

$0.99

$

Usually ships in 2-4 days

0

38

Echo 90051200008

NUT 8

$1.49

$

Usually ships in 2-4 days

0

40

Echo 13001006530

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

41

Echo 13001706531

INSULATOR, INTAKE
(Superseded to 13001707330)

$

$

Not available

42

Echo 13001606531

PACKING
(Superseded to Discontinued)

$

$

Not available

43

Echo 12300006530

CARBURETOR
(Superseded to 12300006320)

$

$

Not available

45

Echo 13030106530

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

44

Echo 17881006530

GROMMET

$2.49

$

Usually ships in 2-4 days

0

46

Echo 17851506530

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

47

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

48

Echo 17851906530

WASHER
(Superseded to Discontinued)

$

$

Not available

49

Echo 90024105057

SCREW 5×57
(Superseded to Discontinued)

$

$

Not available

50

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

51

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

52

Echo 13031306530

COVER, AIR FILTER
(Superseded to 13030205020)

$

$

Not available

53

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

54

Echo 89015806530

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

57

Echo 17501906530

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

58

Echo 17501606530

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

59

Echo 17501806530

SPRING, CLUTCH

$4.99

$

In Stock, only 1 left!

0

60

Echo 17501704630

SHOE, CLUTCH
(Superseded to 17501704631)

$25.99

$

In Stock, only 2 left!

0

61

Echo 17500506530

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

62

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

63

Echo 90080206001

BEARING, BALL 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

64

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

65

Echo 10151106030

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

68

Echo 90014205020

BOLT 5×20

$0.99

$

Usually ships in 2-4 days

0

69

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

70

Echo 30511005931

BRACKET, CUSHION
(Superseded to Discontinued)

$

$

Not available

71

Echo 90024105012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0
