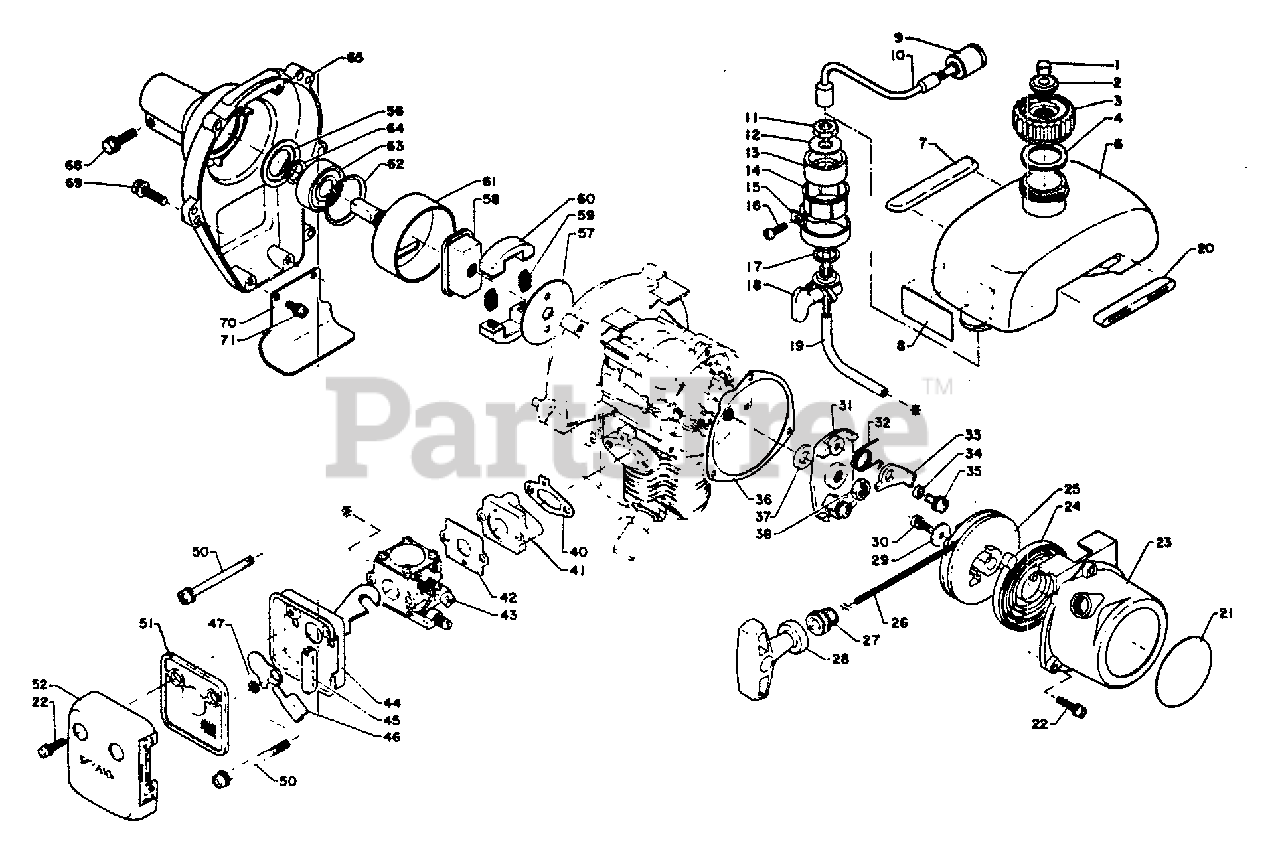

SRM-140 DA - Echo String Trimmer Clutch, Exhaust, Fan Case, Fuel System, Intake, Starter Parts Diagram

String Trimmer

Clutch, Exhaust, Fan Case, Fuel System, Intake, Starter Parts Diagram

  • Title

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 13131505020

FILTER

$0.99

$

In Stock, Qty 8

0

2

Echo 13131406320

VENT

$6.49

$

In Stock, Qty 11

0

3

Echo 1311707430

CAP, FUEL

$

$

Currently unavailable

4

Echo 13101604920

GASKET, CAP

$2.99

$

Usually ships in 2-4 days

0

6

Echo 13101007331

TANK, FUEL
(Superseded to 13100207330)

$

$

Not available

7

Echo 13192007330

CUSHION
(Superseded to Discontinued)

$

$

Not available

8

Echo 89015906530

LABEL - FUEL VALVE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13120506530

FILTER, FUEL
(Superseded to 13120507320)

$6.49

$

In Stock, Qty 20+

0

10

Echo 13201004630

PIPE - FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

11

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

12

Echo 13221706530

WASHER
(Superseded to Discontinued)

$

$

Not available

13

Echo 13222006530

SEAL
(Superseded to 13222005020)

$

$

Not available

14

Echo 13221907330

COLLAR
(Superseded to Discontinued)

$

$

Not available

15

Echo 13250506530

CLAMP

$3.99

$

Usually ships in 2-4 days

0

16

Echo 90022004014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

17

Echo 13221806530

GASKET
(Superseded to Discontinued)

$

$

Not available

18

Echo 13220006530

FUEL VALVE ASSY

$13.99

$

Usually ships in 2-4 days

0

19

Echo 13201006530

PIPE - 3X6X85 -- BLACK
(Superseded to 13201006531)

$2.99

$

In Stock, only 2 left!

0

20

Echo 13192407330

CUSHION
(Superseded to Discontinued)

$

$

Not available

22

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 16

0

21

Echo 90011206030

PLATE, MODEL
(Superseded to 89011206031)

$0.99

$

In Stock, Qty 6

0

Echo 17720006030

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

23

Echo 17720906030

CASE, STARTER

$

$

Not available

24

Echo 17722006530

SPRING, REWIND

$16.99

$

In Stock, only 2 left!

0

25

Echo 17721506530

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

26

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, Qty 8

0

27

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

28

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 8

0

29

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 10

0

30

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

31

Echo 17721006530

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

32

Echo 17723406530

SPRING, RETURN

$1.49

$

In Stock, Qty 6

0

33

Echo 17721806530

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

34

Echo 17724704630

SPACER

$2.49

$

In Stock, only 2 left!

0

35

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

36

Echo 10061506530

GASKET, STARTER

$1.49

$

Usually ships in 2-4 days

0

37

Echo 10014605930

SPACER

$0.99

$

Usually ships in 2-4 days

0

38

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

40

Echo 13001006530

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

41

Echo 13001707330

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

42

Echo 13001606531

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

43

Echo 12300006530

CARBURETOR
(Superseded to 12300006320)

$

$

Not available

44

Echo 13030105020

CASE, AIR FILTER
(Superseded to 13030105021)

Note: Includes ITEM 45

$9.49

$

Usually ships in 2-4 days

0

45

Echo 17881005020

GROMMET

$2.49

$

Usually ships in 2-4 days

0

46

Echo 17851506530

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

47

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

50

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, only 3 left!

0

51

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

52

Echo 13031305020

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

56

Echo 17505304920

RETAINER, PIPE

$0.99

$

Usually ships in 2-4 days

0

57

Echo 17501906530

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

58

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

59

Echo 17501806530

SPRING, CLUTCH

$4.99

$

In Stock, only 1 left!

0

60

Echo 17501704630

SHOE, CLUTCH
(Superseded to 17501704631)

$25.99

$

Usually ships in 2-4 days

0

61

Echo 17501007330

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

62

Echo 90070200032

RING, RETAINING - 32

$2.49

$

Usually ships in 2-4 days

0

63

Echo 90081906201

BEARING, BALL - 6201
(Superseded to 90081206201)

$14.99

$

In Stock, only 4 left!

0

64

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

65

Echo 10151107330

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

68

Echo 90014205020

BOLT - 5X20

$0.99

$

Usually ships in 2-4 days

0

69

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

70

Echo 30511007331

BRACKET
(Superseded to Discontinued)

$

$

Not available

71

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0
