SRM-140 DA - Echo String Trimmer Engine, Crankcase, Ignition Parts Diagram

String Trimmer

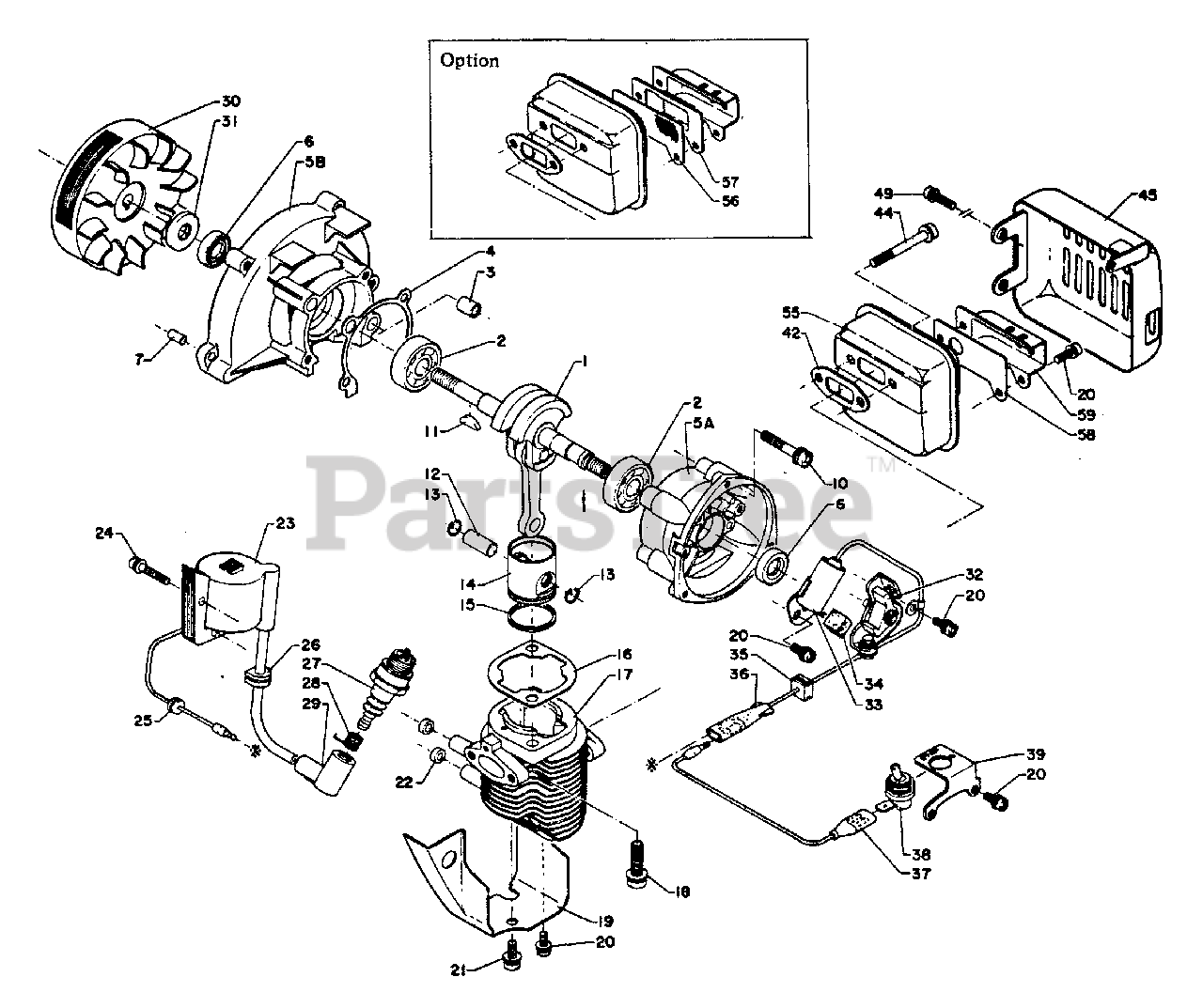

Engine, Crankcase, Ignition Parts Diagram

  • Title

1

Echo 10010007330

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 90081036200

BEARING, BALL - 6200
(Superseded to Discontinued)

$

$

Not available

4

Echo 10024205931

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10020005932

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

5A

Echo 10020005932

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 5, Crankcase Set, P/N 10020005932

$

$

Not available

5B

Echo 10020005932

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 5, Crankcase Set, P/N 10020005932

$

$

Not available

3

Echo 10021505730

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

7

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

6

Echo 10021305930

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

10

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

11

Echo 10014200330

KEY

$1.49

$

Usually ships in 2-4 days

0

12

Echo 10001304920

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

13

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

14

Echo 10001007330

PISTON
(Superseded to Discontinued)

$

$

Not available

15

Echo 10001105930

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

16

Echo 10101005930

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

17

Echo 10101107330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024206022

SCREW - 6X22
(Superseded to Discontinued)

$

$

Not available

19

Echo 10151407330

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

20

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

22

Echo 15211705930

SPACER
(Superseded to Discontinued)

$

$

Not available

23

Echo 15612606420

COIL, IGNITION
(Superseded to 15612606421)

$

$

Not available

24

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

25

Echo 15211505930

GROMMET
(Superseded to Discontinued)

$

$

Not available

26

Echo 15211207330

GROMMET
(Superseded to 15211207331)

$

$

Not available

27

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

28

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

29

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

30

Echo 15620006420

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

31

Echo 10013206530

WASHER

$2.49

$

Usually ships in 2-4 days

0

32

Echo 15210105930

CONTACT POINT SET

$23.99

$

Usually ships in 2-4 days

0

33

Echo 15212705530

CONDENSER
(Superseded to Discontinued)

$

$

Not available

34

Echo 15613404630

PAD, OIL

$2.49

$

Usually ships in 2-4 days

0

35

Echo 15211405530

GROMMET
(Superseded to Discontinued)

$

$

Not available

36

Echo 15213305530

CORD, PRIMARY
(Superseded to Discontinued)

$

$

Not available

37

Echo 15613106530

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

42

Echo 14551005930

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

44

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 7

0

45

Echo 14562106420

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

49

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

Echo 14590006420

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

55

Echo 14580606420

CASE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

58

Echo 14587506320

GUIDE, EXHAUST - INNER
(Superseded to Discontinued)

$

$

Not available

59

Echo 14587606320

GUIDE, EXHAUST
(Superseded to 14580921930)

$4.49

$

Usually ships in 2-4 days

0

38

Echo 16340007330

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

39

Echo 16381007330

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

56

Echo 14586206320

SCREEN, SPARK ARRESTOR
(Superseded to 14586206321)

Note: OPTIONAL

$1.99

$

Usually ships in 2-4 days

0

57

Echo 14586306320

RETAINER, SCREEN
(Superseded to 14580921930)

Note: OPTIONAL

$4.49

$

Usually ships in 2-4 days

0
