SRM-1500 A - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

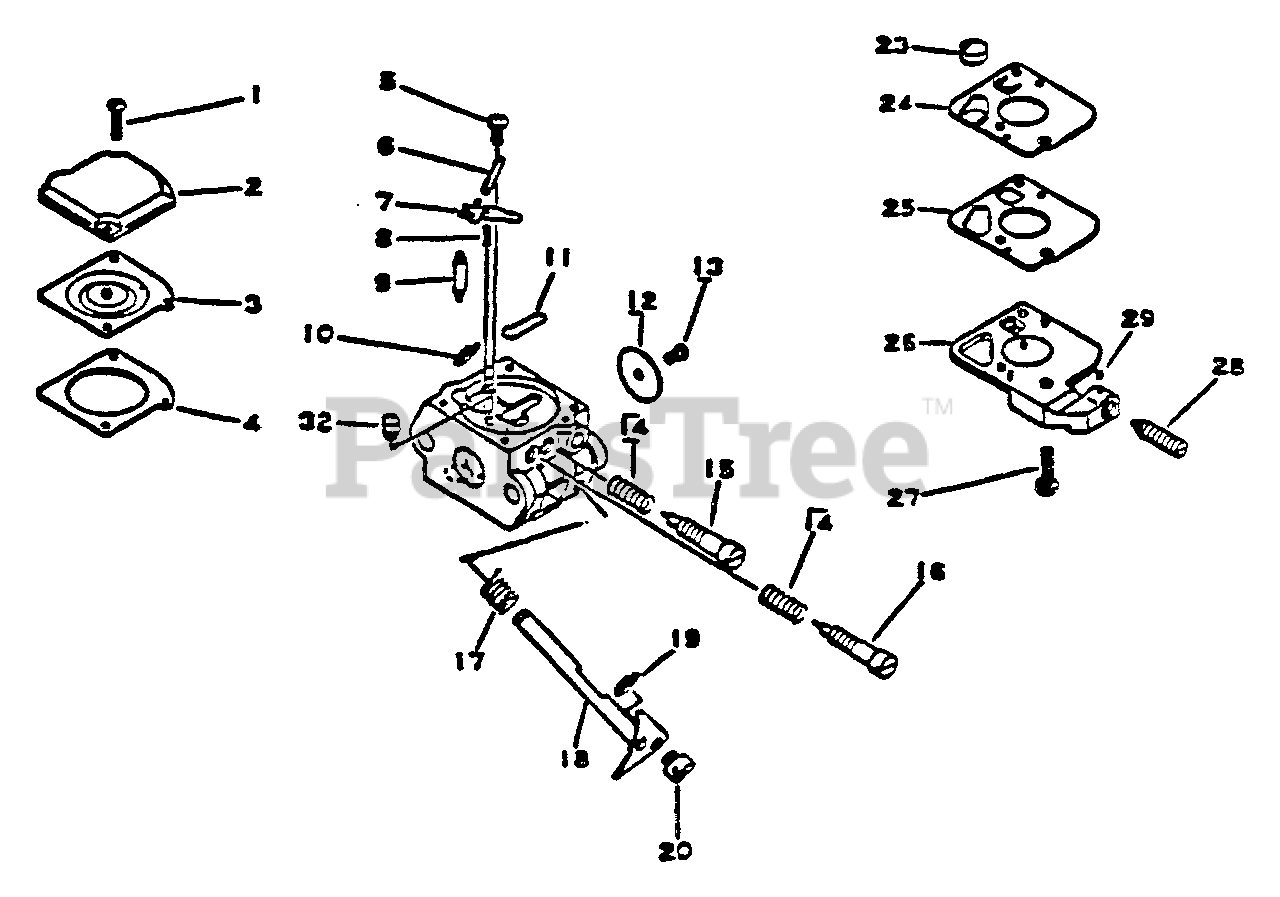

Carburetor Parts Diagram

  • Title

Echo 12520044730

CARBURETOR C1U-K9
(Superseded to 12520044731)

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 10

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Use Repair Kit P/N 12530242030 and Gasket/Diaph. Kit P/N 12530342030

$

$

Not available

4

------------------

GASKET, METERING

Note: Use Repair Kit P/N 12530242030 and Gasket/Diaph. Kit P/N 12530342030

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN, METERING LEVER

Note: Use Repair Kit P/N 12530242030

$

$

Not available

7

------------------

LEVER, METERING

Note: Use Repair Kit P/N 12530242030

$

$

Not available

8

------------------

SPRING

Note: Use Repair Kit P/N 12530242030

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: Use Repair Kit P/N 12530242030

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

11

------------------

PLUG, WELCH

Note: Use Repair Kit P/N 12530242030

$

$

Not available

12

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

13

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

15

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

16

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

17

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo 12532713930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

23

------------------

STRAINER

Note: Use Repair Kit P/N 12530242030

$

$

Not available

24

------------------

DIAPHRAGM, PUMP

Note: Use Repair Kit P/N 12530242030 and Gasket/Diaph. Kit P/N 12530342030

$

$

Not available

25

------------------

GASKET, PUMP

Note: Use Repair Kit P/N 12530242030 and Gasket/Diaph. Kit P/N 12530342030

$

$

Not available

26

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

27

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

28

Echo 12533813930

PIN, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

29

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

32

Echo 12537642030

NOZZLE, CHECK VALVE

$4.99

$

In Stock, only 1 left!

0
