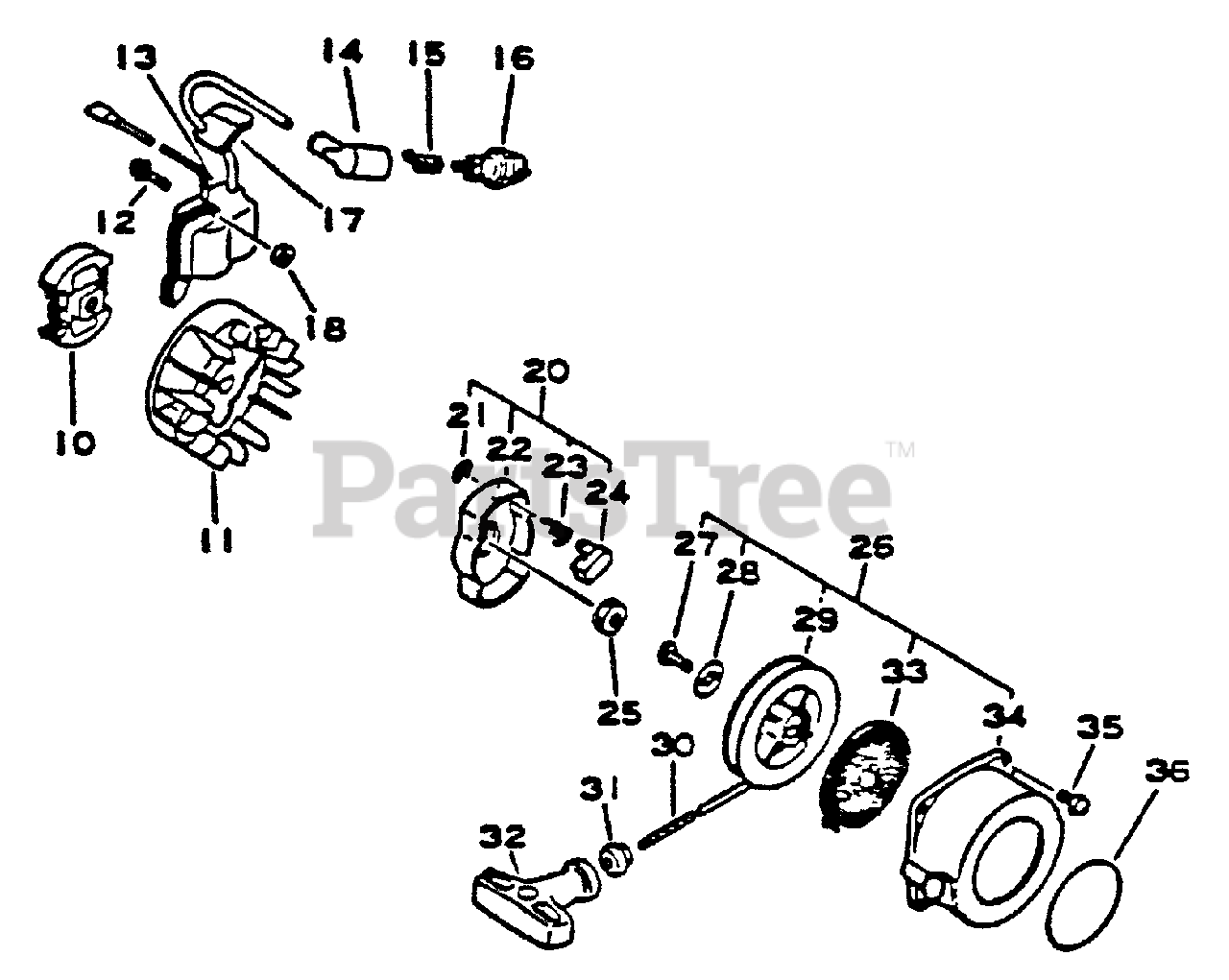

SRM-1500 A - Echo String Trimmer Clutch, Ignition, Starter Parts Diagram

String Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title

10

Echo 17500044330

CLUTCH ASSY
(Superseded to 17500042031)

$30.99

$

In Stock, only 2 left!

0

11

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$117.99

$

Usually ships in 2-4 days

0

12

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, only 4 left!

0

13

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

14

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

15

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

16

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

Note: CANADIAN MODELS USE SPARK PLUG (BPMR-7A) P/N 15901010230

$3.99

$

In Stock, Qty 20+

0

17

Echo 15011242030

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

18

Echo 15011709130

SPACER

$1.49

$

In Stock, only 1 left!

0

20

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

$18.99

$

In Stock, Qty 7

0

21

Echo 90070000006

RING, RETAINING - 6

$0.99

$

In Stock, Qty 5

0

22

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$18.99

$

In Stock, Qty 7

0

23

Echo 17723442030

SPRING, RETURN
(Superseded to 17723412220)

$4.49

$

In Stock, Qty 20+

0

24

Echo 17721842030

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

25

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

26

Echo 17720044332

STARTER ASSY
(Superseded to 17720044333)

$50.99

$

In Stock, Qty 14

0

27

Echo 17723640630

SCREW

$4.49

$

In Stock, Qty 14

0

28

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

29

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$9.99

$

In Stock, Qty 6

0

30

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 8

0

31

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

32

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 8

0

33

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

34

Echo 17723242032

CASE, STARTER

$23.99

$

In Stock, only 2 left!

0

35

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

36

Echo 89011844330

LABEL - ECHO
(Superseded to 89011848830)

$0.99

$

In Stock, Qty 6

0
