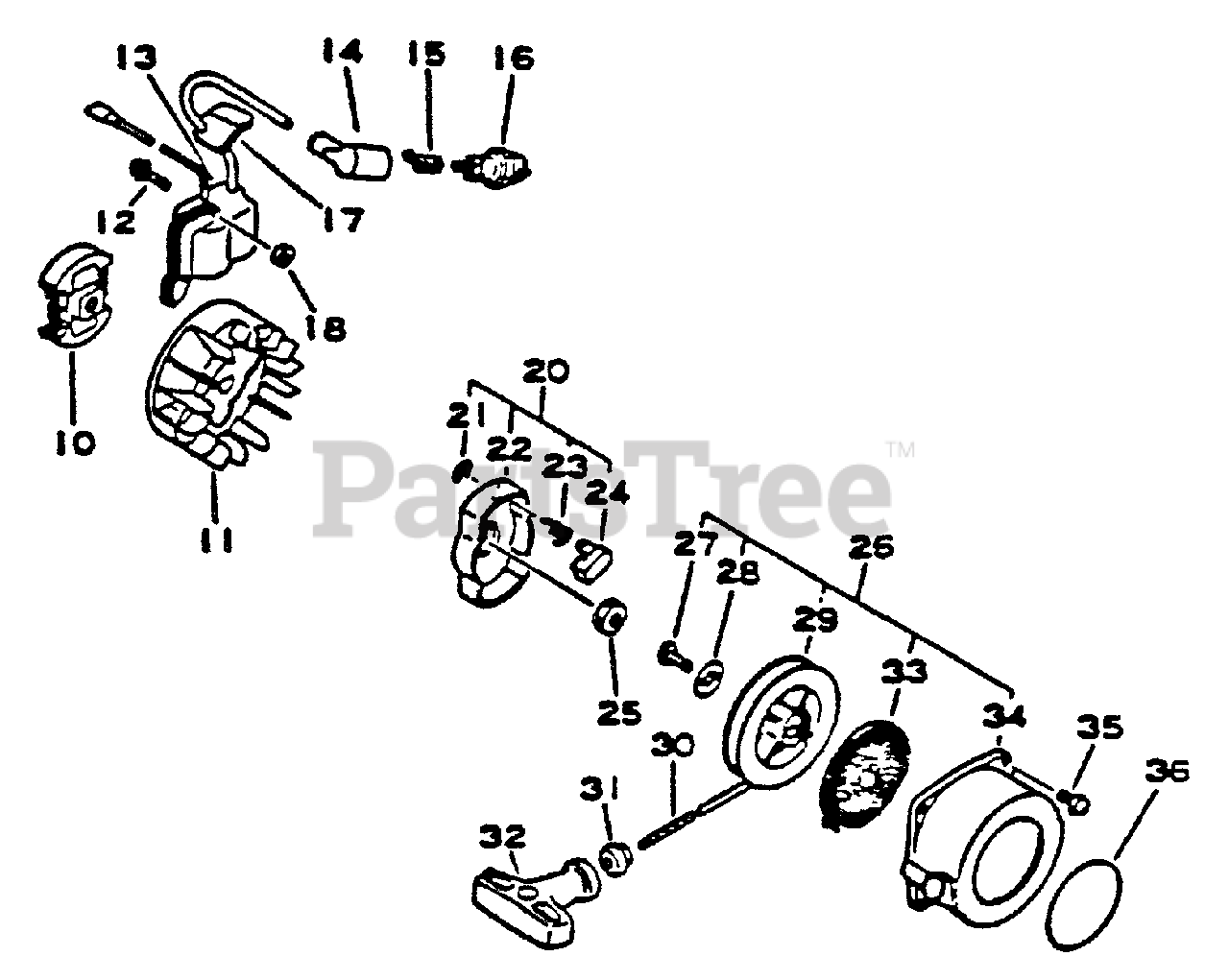

SRM-1500 A - Echo String Trimmer Clutch, Ignition, Starter Parts Diagram

String Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title

10

Echo 17500044330

CLUTCH ASSY
(Superseded to 17500042031)

$32.99

$

In Stock, only 2 left!

0

11

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

12

Echo 900238-04022

SCREW 4×22

$0.99

$

In Stock, only 2 left!

0

13

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

14

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

15

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

16

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

Note: CANADIAN MODELS USE SPARK PLUG (BPMR-7A) P/N 15901010230

$3.99

$

In Stock, Qty 20+

0

17

Echo 150112-42030

GROMMET

$3.49

$

Usually ships in 2-4 days

0

18

Echo 15011709130

WASHER

$1.99

$

Usually ships in 2-4 days

0

20

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

$19.99

$

In Stock, only 2 left!

0

21

Echo 90070000006

RING, RETAINING - 6

$0.99

$

In Stock, Qty 5

0

22

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$19.99

$

In Stock, only 2 left!

0

23

Echo 177234-42030

SPRING, RETURN
(Superseded to 17723412220)

$4.99

$

In Stock, Qty 13

0

24

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

25

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

26

Echo 17720044332

STARTER ASSY
(Superseded to 17720044333)

$53.99

$

In Stock, only 3 left!

0

27

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

28

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

29

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 7

0

30

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

31

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

32

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

33

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

34

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

35

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

36

Echo 89011844330

LABEL - ECHO
(Superseded to 89011848830)

$0.99

$

In Stock, Qty 5

0
