SRM-1500 A - Echo String Trimmer Gear Case Parts Diagram

String Trimmer

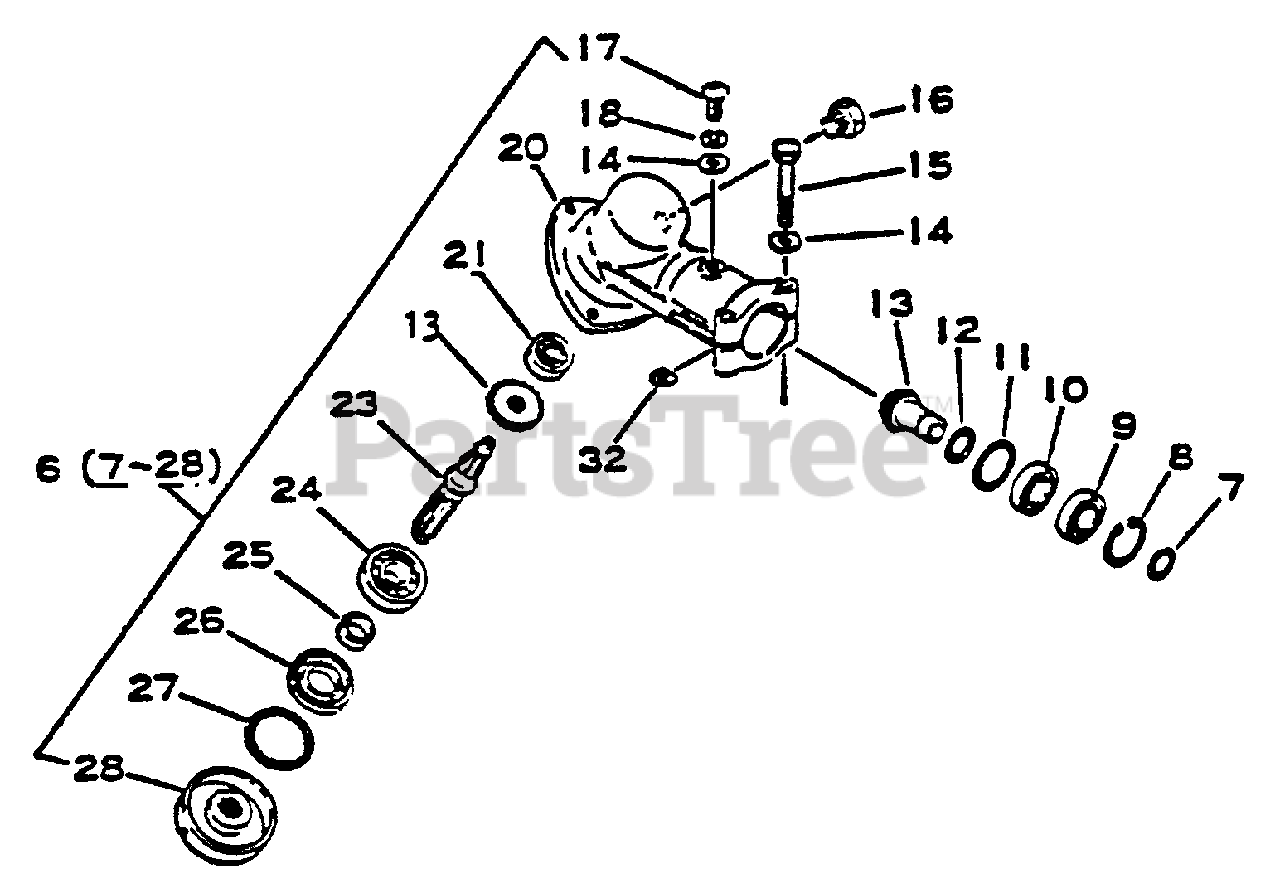

Gear Case Parts Diagram

  • Title

6

Echo 61040044630

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

8

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, only 2 left!

0

9

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 8

0

10

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 7

0

11

Echo 61031722830

WASHER

$0.99

$

In Stock, Qty 7

0

12

Echo 61031622830

WASHER

$0.99

$

Usually ships in 2-4 days

0

13

Echo 61030042330

GEAR SET

$100.99

$

Usually ships in 2-4 days

0

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 12

0

17

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 10

0

18

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

20

Echo 61041040830

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

21

Echo 90081000626

BEARING, BALL - 626

$11.99

$

Usually ships in 2-4 days

0

23

Echo 61031040830

GEAR - SHAFT
(Superseded to Discontinued)

$

$

Not available

24

Echo 90080006000

BEARING, BALL - 6000

$10.99

$

In Stock, only 1 left!

0

25

Echo 61031522830

SPACER

$6.49

$

Usually ships in 2-4 days

0

26

Echo 61041322830

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0

27

Echo 90070200026

RING, RETAINING - 26

$1.99

$

In Stock, Qty 13

0

28

Echo 61031344630

ADAPTOR, BLADE - UPPER

$19.99

$

Usually ships in 2-4 days

0

32

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 7

0
