SRM-1500 A - Echo String Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

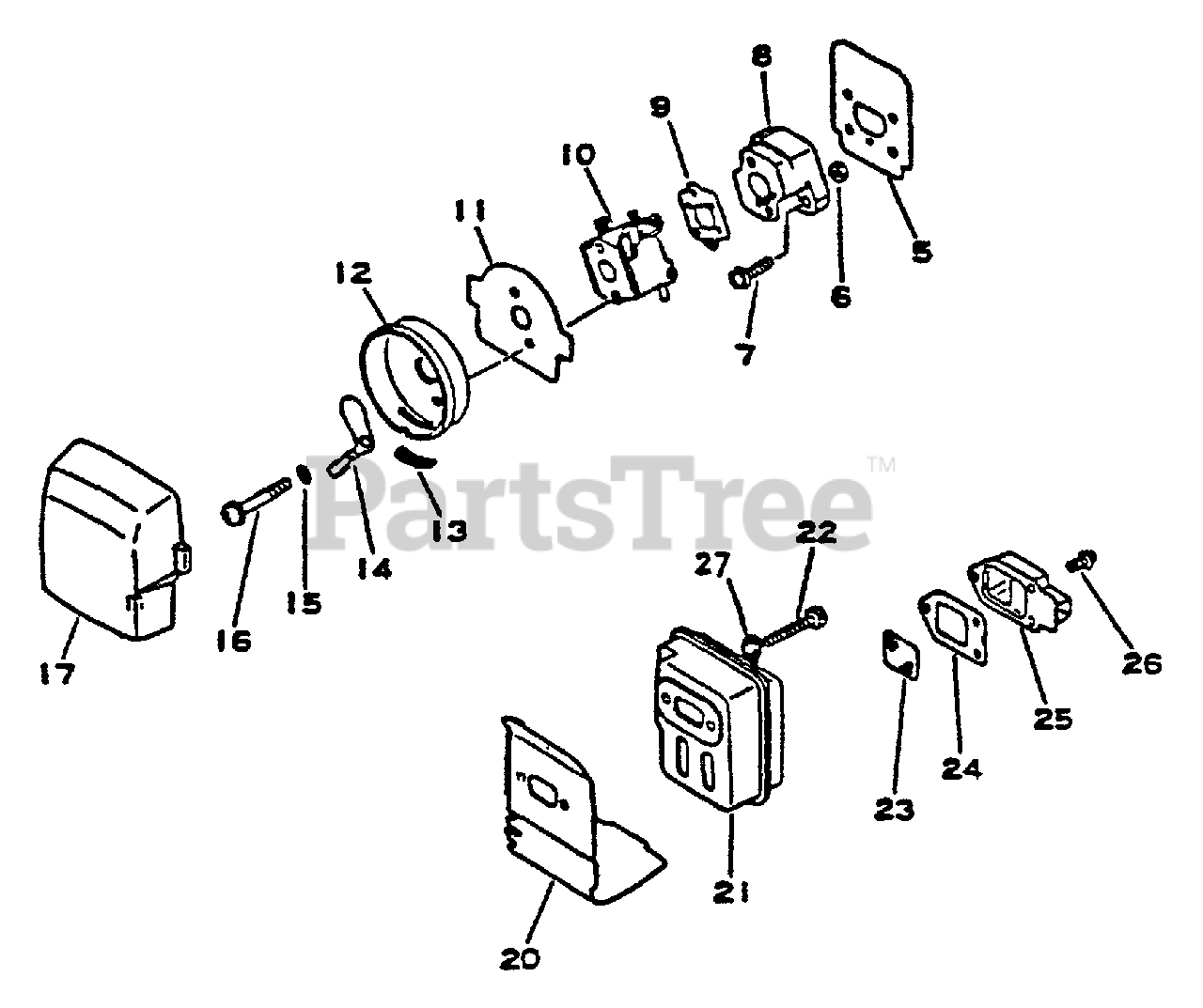

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

6

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

7

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

8

Echo 13001742030

INSULATOR, INTAKE
(Superseded to 13001742031)

$11.99

$

In Stock, Qty 8

0

9

Echo 13001642030

GASKET, INTAKE
(Superseded to 13001642031)

$1.49

$

In Stock, Qty 20+

0

10

Echo 12520044730

CARBURETOR - C1U-K9
(Superseded to 12520044731)

$

$

Not available

11

Echo 130319-42030

PLATE, AIR FILTER

$2.99

$

Usually ships in 2-4 days

0

12

Echo 130301-42030

CASE, AIR FILTER

$8.49

$

In Stock, only 2 left!

0

13

Echo 178810-42030

BUSHING

$

$

Not available

14

Echo 17851542030

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

15

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

16

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

17

Echo 13031042030

FILTER, AIR

$

$

Not available

20

Echo 14551044330

GASKET, EXHAUST
(Superseded to 14551044331)

Note: INCLUDED IN MUFFLER ASS'Y P/N 14580044330

$11.99

$

Usually ships in 2-4 days

0

21

Echo 14581044330

MUFFLER

Note: INCLUDED IN MUFFLER ASS'Y P/N 14580044330

$43.99

$

Usually ships in 2-4 days

0

22

Echo 900105-05055

BOLT 5×55

Note: INCLUDED IN MUFFLER ASS'Y P/N 14580044330

$1.99

$

In Stock, Qty 20+

0

23

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: INCLUDED IN MUFFLER ASS'Y P/N 14580044330

$2.49

$

In Stock, Qty 20+

0

24

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: INCLUDED IN MUFFLER ASS'Y P/N 14580044330

$2.99

$

In Stock, only 2 left!

0

25

Echo 145809-42030

GUIDE, EXHAUST - INNER

Note: INCLUDED IN MUFFLER ASS'Y P/N 14580044330

$8.99

$

Usually ships in 2-4 days

0

26

Echo 900242-04010

SCREW 4×10

Note: INCLUDED IN MUFFLER ASS'Y P/N 14580044330

$0.99

$

In Stock, Qty 20+

0

27

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0
