SRM-1501 - Echo String Trimmer (SN: 0017001 - 0039000) Engine, Engine Cover, Fan Case Parts Diagram

String Trimmer

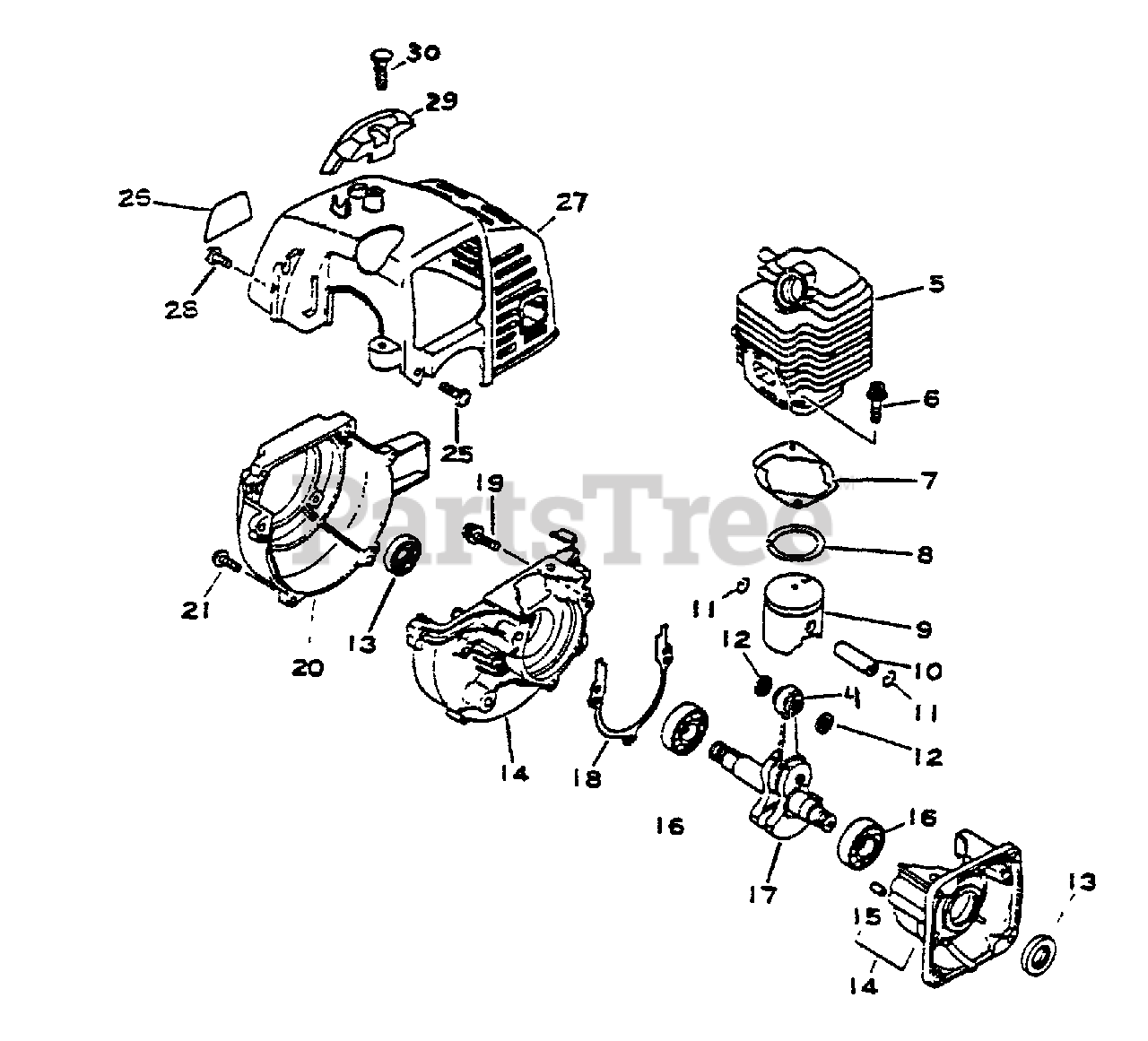

Engine, Engine Cover, Fan Case Parts Diagram

  • Title

4

Echo 10001211520

Bearing, Needle
(Superseded to 10001251230)

Note: Included in Item 17

$11.99

$

In Stock, only 2 left!

0

5

Echo 10101145230

Cylinder

$153.99

$

Usually ships in 2-4 days

0

6

Echo 90016205022

Bolt, H. S. 5=22

$0.99

$

In Stock, Qty 5

0

7

Gasket, Cyl, Base

$

$

Not available

8

Echo 10001105330

Ring, Piston

$10.99

$

In Stock, Qty 15

0

9

Echo 10001044330

Piston
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

10

Echo 10001311520

Pin, Piston

$8.49

$

In Stock, only 2 left!

0

11

Echo 10001504630

Circlip, Piston Pin

$0.99

$

In Stock, Qty 20+

0

12

Echo 10001411520

Spacer, Piston Pin

$3.99

$

Usually ships in 2-4 days

0

13

Echo 10021242030

Oilseal
(Superseded to 10021242031)

$7.99

$

In Stock, Qty 5

0

14

Echo 10020042030

Crankcase Set
(Superseded to 10020451030)

Note: Includes Item 15

$157.99

$

Usually ships in 2-4 days

0

15

Echo 10021503930

Pin, Dowel
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 13

0

16

Echo 90081036201

Bearing, Ball 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

17

Echo 10010044730

Crankshaft Assembly
(Superseded to 10010044731)

Note: Includes Item 4

$186.99

$

Usually ships in 2-4 days

0

18

Gasket, Crankcase

$

$

Not available

19

Echo 90023805028

Screw 5=28

$0.99

$

Usually ships in 2-4 days

0

20

Echo 10151144730

Cover, Fan

$57.99

$

Usually ships in 2-4 days

0

21

Echo 90023804016

Screw 4=16
(Superseded to Discontinued)

$

$

Not available

25

Echo 90023804016

Screw 4=16
(Superseded to Discontinued)

$

$

Not available

26

Echo 89011444630

Label, Model
(Superseded to 89011248930)

$5.99

$

Usually ships in 2-4 days

0

27

Echo 10151444430

Cover, Cylinder
(Superseded to 10151444530)

$24.99

$

In Stock, only 2 left!

0

28

Echo 90023804012

Screw 4=12

$0.99

$

In Stock, Qty 20+

0

29

Echo 15991244530

Guard, Top

$7.99

$

In Stock, only 1 left!

0

30

Echo 90025305016

Screw 5 * 16

$0.99

$

In Stock, Qty 20+

0

Echo 88900042030

Gasket Kit
(Superseded to 88900042031)

$19.99

$

In Stock, only 2 left!

0
