SRM-1501 - Echo String Trimmer (SN: 0017001 - 0039000) Engine, Engine Cover, Fan Case Parts Diagram

String Trimmer

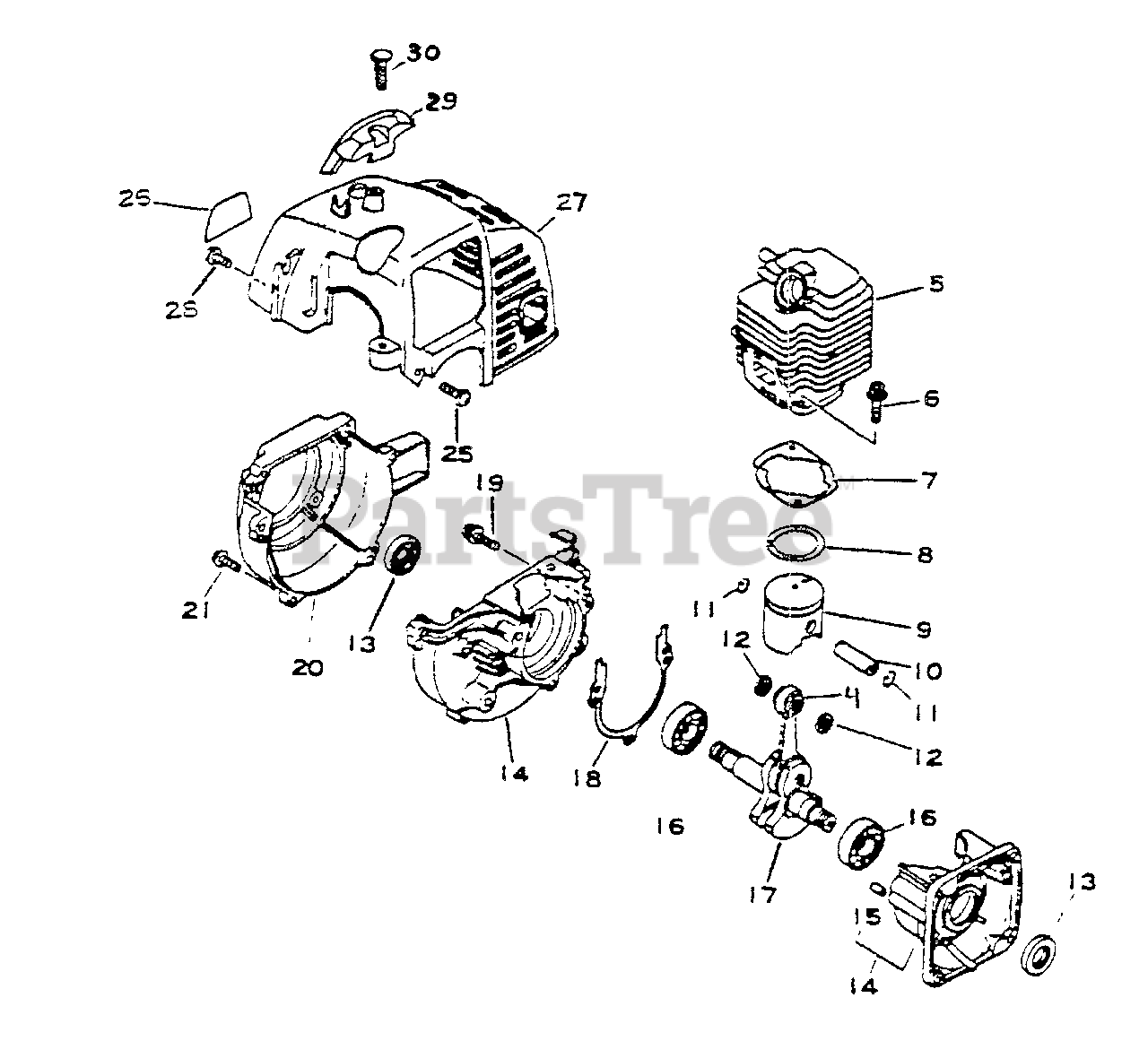

Engine, Engine Cover, Fan Case Parts Diagram

  • Title

4

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

Note: Included in Item 17

$11.99

$

In Stock, only 2 left!

0

5

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

6

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

GASKET, CYLINDER

Note: Use Kit 88900042030

$

$

Not available

8

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

9

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

10

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

11

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

13

Echo 10021242030

SEAL, OIL 12
(Superseded to 10021242031)

$7.99

$

In Stock, Qty 20+

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes Item 15

$157.99

$

Usually ships in 2-4 days

0

15

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

16

Echo 90081036201

BEARING, BALL 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

17

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

Note: Includes Item 4

$186.99

$

Usually ships in 2-4 days

0

18

GASKET, CRANKCASE

Note: Use Kit 88900042030

$

$

Not available

19

Echo 90023805028

SCREW 5×28

$0.99

$

Usually ships in 2-4 days

0

20

Echo 10151144730

COVER, FAN - ORANGE

$57.99

$

Usually ships in 2-4 days

0

21

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

25

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

26

Echo 89011444630

LABEL - MODEL
(Superseded to 89011248930)

$5.99

$

Usually ships in 2-4 days

0

27

Echo 10151444430

COVER, ENGINE
(Superseded to 10151444530)

$24.99

$

In Stock, only 2 left!

0

28

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

29

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0

30

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

Echo 88900042030

GASKET KIT
(Superseded to 88900042031)

Note: See Maintenance Kits

$19.99

$

In Stock, only 2 left!

0
