SRM-1501 - Echo String Trimmer (SN: 0017001 - 0039000) Main Pipe, Support Handle, Throttle Control, Clutch Case Parts Diagram

String Trimmer

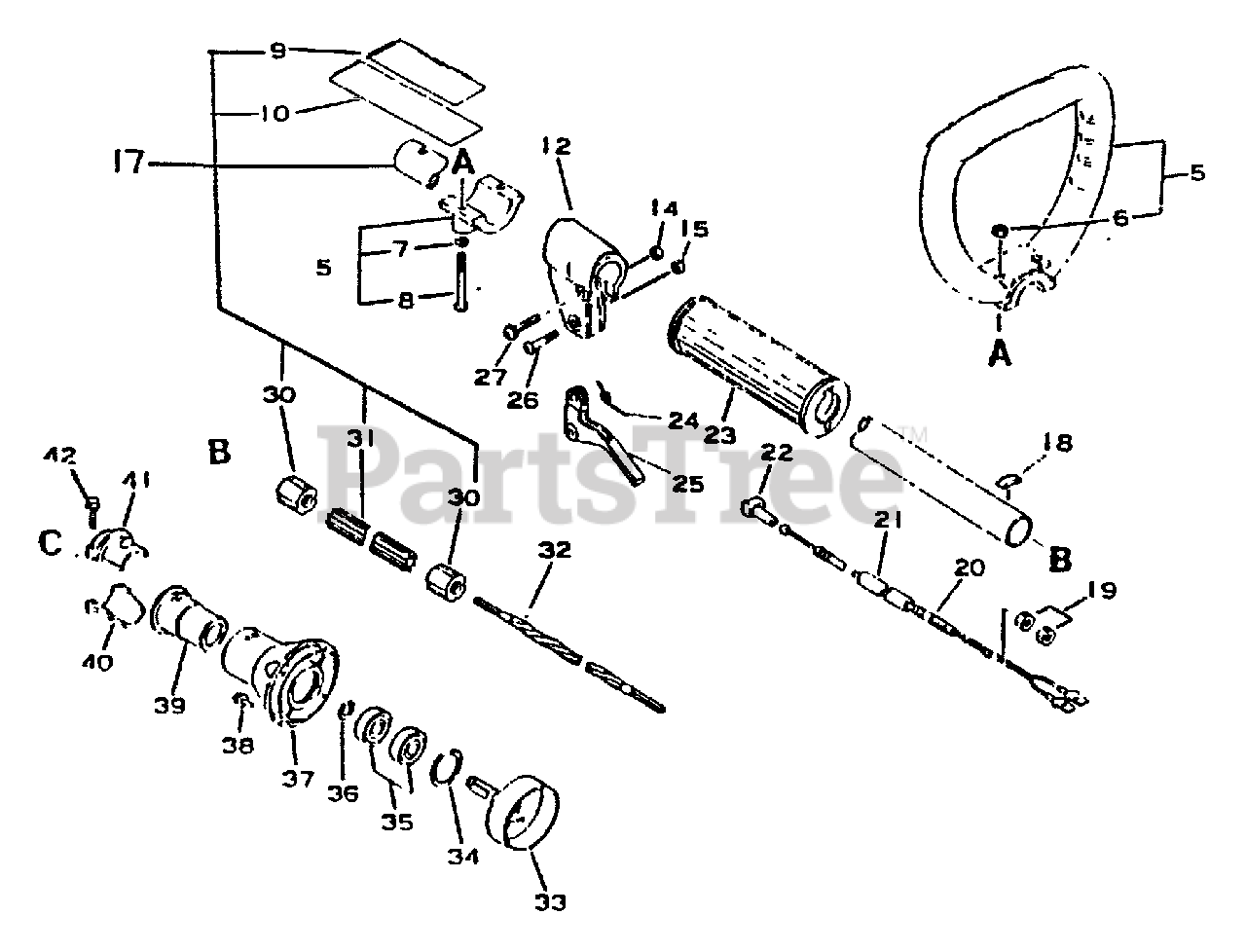

Main Pipe, Support Handle, Throttle Control, Clutch Case Parts Diagram

  • Title

5

Echo 351201-08930

LOOP HANDLE ASSY

Note: Includes Items 6-8

$45.99

$

Usually ships in 2-4 days

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

9

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

Note: Included in Item 17

$7.49

$

Usually ships in 2-4 days

0

10

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

Note: Included in Item 17

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17802408930

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

14

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

15

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

17

Echo 61060944630

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes Items 9, 10, 30, 31

$

$

Not available

18

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

19

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

20

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

21

Echo 178127-24030

PIPE

$0.99

$

In Stock, Qty 9

0

22

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

23

Echo 35101240930

GRIP, HANDLE
(Superseded to 35101244730)

$

$

Not available

24

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

25

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.99

$

In Stock, Qty 5

0

26

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

27

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

30

Echo 61024644730

STOPPER

Note: Included in Item 17

$1.49

$

In Stock, Qty 20+

0

31

Echo 61021744630

LINER - FLEXIBLE
(Superseded to Discontinued)

Note: Included in Item 17

$

$

Not available

32

Echo 61001342330

DRIVESHAFT - FLEXIBLE
(Superseded to 61001351030)

$72.99

$

Usually ships in 2-4 days

0

33

Echo 17500544730

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

34

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

35

Echo 90080806001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

36

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

37

Echo 61022344730

CASE, CLUTCH

$67.99

$

Usually ships in 2-4 days

0

38

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

39

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

40

Echo 61092327432

HOLDER

$7.49

$

Usually ships in 2-4 days

0

41

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

42

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0
