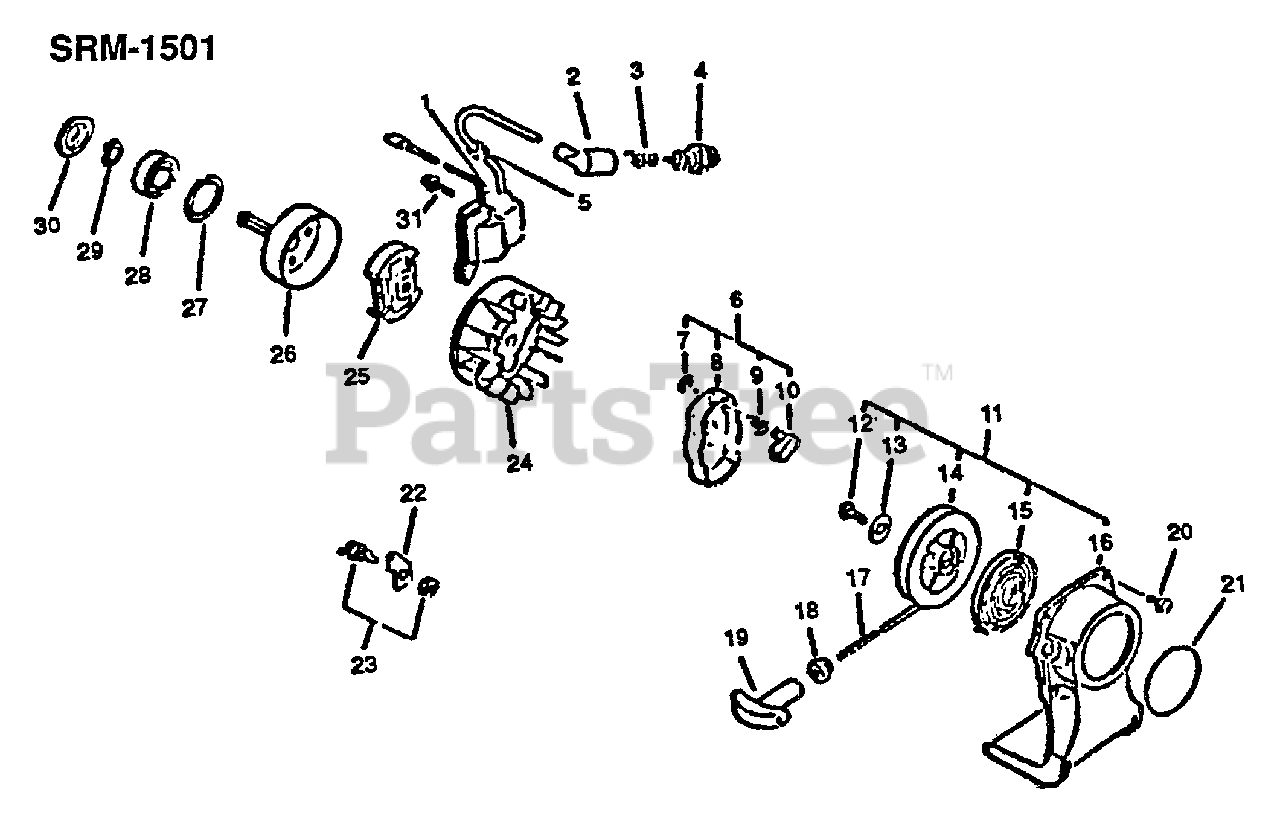

SRM-1501 - Echo String Trimmer (SN: 0039001 - 0083386) Clutch, Ignition, Starter Parts Diagram

String Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 15660144730

Coil, Ignition
(Superseded to 15660144731)

$

$

Not available

2

Echo 15901201620

Cap, Spark Plug

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901103432

Coil, Spark Plug Cap

$1.49

$

In Stock, Qty 20+

0

4

Echo 15901010630

Plug, Spark (BPM-7A)
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

5

Echo 15011244330

Bushing
(Superseded to Discontinued)

$

$

Not available

6

Echo 17720242030

Pawl Asy, Starter
(Superseded to 17720244330)

Note: Includes Items 7-10

$16.99

$

In Stock, Qty 20+

0

7

Echo 90070000004

E-Ring 4

$0.99

$

In Stock, Qty 20+

0

8

Echo 17721042030

Catcher, Pawl
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 20+

0

9

Echo 17723442030

Spring, Return
(Superseded to 17723412220)

$3.99

$

In Stock, Qty 20+

0

10

Echo 17721842030

Pawl, Starter

$3.49

$

Usually ships in 2-4 days

0

11

Echo 17720044332

Starter Asy
(Superseded to 17720044333)

Note: Includes Items 12-19

$45.99

$

In Stock, Qty 20+

0

12

Echo 17723640630

Screw

$3.99

$

In Stock, Qty 14

0

13

Echo 17721442030

Washer
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

14

Echo 17721542030

Drum, Starter
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 20+

0

15

Echo 17722042030

Spring, Rewind
(Superseded to P022019680)

$9.99

$

In Stock, Qty 20+

0

16

Echo 17723244331

Case, Stater (BL)
(Superseded to 17723244332)

$40.99

$

In Stock, only 1 left!

0

17

Echo 17722605530

Rope, Starter

$4.99

$

In Stock, Qty 8

0

18

Echo 17722742030

Guide, Rope

$2.49

$

In Stock, Qty 19

0

19

Echo 17722806530

Grip, Starter

$4.99

$

In Stock, Qty 20+

0

20

Echo 90023804016

Screw 4X16
(Superseded to Discontinued)

$

$

Not available

21

Echo 89011849130

Label, Echo
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

22

Echo 16381044330

Bracket, Switch

$2.99

$

In Stock, only 1 left!

0

23

Echo 16340003460

Switch, Ignition

$8.49

$

In Stock, Qty 20+

0

24

Echo 15680144730

Flywheel
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

25

Echo 17500044330

Clutch Asy
(Superseded to 17500042031)

$27.99

$

In Stock, Qty 20+

0

2

Echo 17500542030

Drum, Clutch

$

$

Not available

27

Echo 90070200032

Circlip 32

$1.99

$

In Stock, Qty 20+

0

28

Echo 90080806001

Bearing, Ball 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

29

Echo 90070100012

Circlip 12

$0.99

$

In Stock, Qty 15

0

30

Echo 17505304920

Stopper

$

$

Not available

31

Echo 90023804022

Screw 4X22

$0.99

$

In Stock, Qty 6

0
