SRM-1501 - Echo String Trimmer (SN: 0039001 - 0083386) Engine, Engine Cover, Fan Case Parts Diagram

String Trimmer

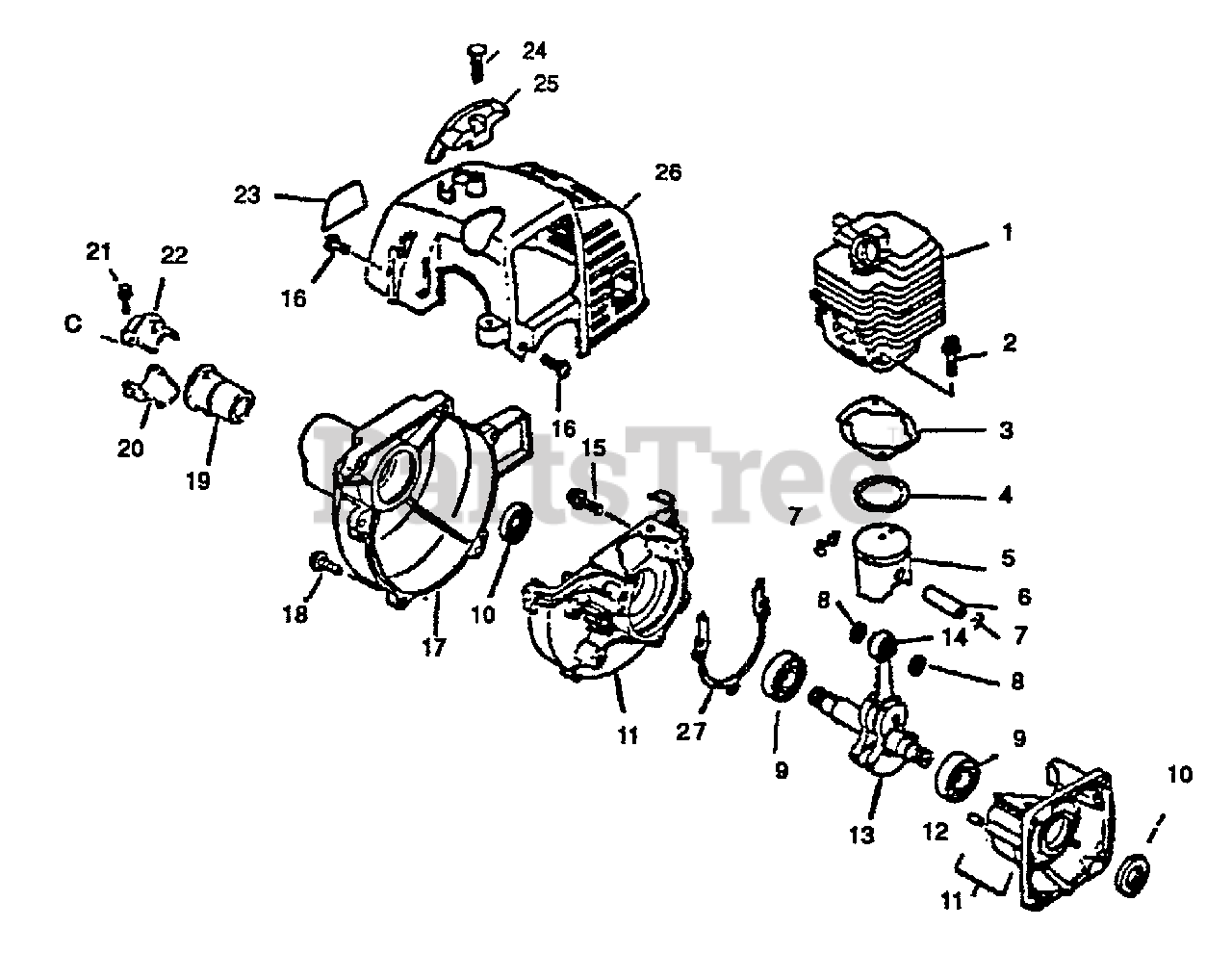

Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

GASKET, CYLINDER

Note: Use Kit 88900042031

$

$

Not available

4

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

5

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes Item 6

$78.99

$

Usually ships in 2-4 days

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411530

SPACER, PISTON

$

$

Currently unavailable

9

Echo 90081036201

BEARING, BALL 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

10

Echo 10021242030

SEAL, OIL 12
(Superseded to 10021242031)

$7.99

$

In Stock, Qty 20+

0

11

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes Item 12

$157.99

$

Usually ships in 2-4 days

0

12

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

13

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

Note: Includes Item 14

$186.99

$

Usually ships in 2-4 days

0

14

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

15

Echo 90023805028

SCREW 5×28

$0.99

$

Usually ships in 2-4 days

0

16

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

17

Echo 10153548930

COVER, FAN

$

$

Not available

18

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

19

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

20

Echo 61092327432

HOLDER

$7.49

$

Usually ships in 2-4 days

0

21

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

22

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

23

Echo 89011248930

LABEL, MODEL

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

25

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0

26

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$23.99

$

In Stock, only 1 left!

0

27

GASKET, CRANKCASE

Note: Use Kit 88900042031

$

$

Not available

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: See Maintenance Kits

$19.99

$

In Stock, only 2 left!

0
