SRM-1501 - Echo String Trimmer (SN: 0039001 - 0083386) Gear Case Parts Diagram

String Trimmer

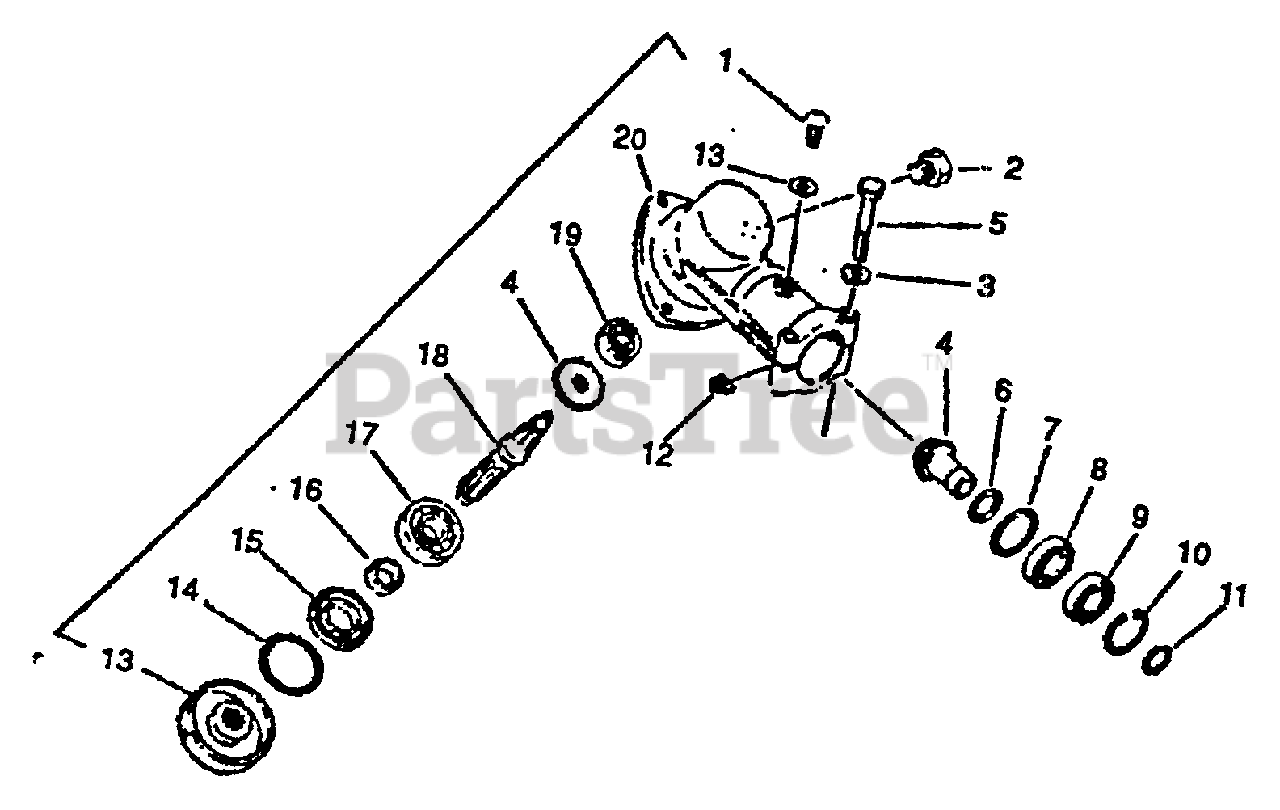

Gear Case Parts Diagram

  • Title

Echo 61040044630

Housing Asy, Gear
(Superseded to Discontinued)

Note: Includes Items 1-20

$

$

Not available

1

Echo 90024205010

Screw 5X10

$0.99

$

In Stock, Qty 20+

0

2

Echo 90010008008

Bolt

$0.99

$

In Stock, Qty 12

0

3

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030042330

Gear Set

$100.99

$

Usually ships in 2-4 days

0

5

Echo 90010005035

Bolt 5X35

$0.99

$

In Stock, Qty 20+

0

6

Echo 61031622830

Washer, Adjustment

$0.99

$

Usually ships in 2-4 days

0

7

Echo 61031722830

Washer, Adjustment

$0.99

$

In Stock, Qty 7

0

8

Echo 90085506900

Bearing, Ball 6900

$18.99

$

In Stock, Qty 7

0

9

Echo 90085806900

Bearing, Ball 6900

$22.99

$

In Stock, Qty 8

0

10

Echo 90070200022

Circlip 22

$1.99

$

In Stock, only 2 left!

0

11

Echo 90070600010

Circlip 10

$1.49

$

In Stock, Qty 20+

0

12

Echo 61023904130

Washer, Shim

$0.99

$

In Stock, Qty 7

0

13

Echo 61031344630

Plate, Adapter

$19.99

$

Usually ships in 2-4 days

0

14

Echo 90070200026

Circlip 26

$1.99

$

In Stock, Qty 13

0

15

Echo 61041322830

Oilseal

$5.99

$

Usually ships in 2-4 days

0

16

Echo 61031522830

Spacer

$6.49

$

Usually ships in 2-4 days

0

17

Echo 90080006000

Bearing, Ball 6900

$10.99

$

Usually ships in 2-4 days

0

18

Echo 61031040830

Shaft, P.T.O
(Superseded to Discontinued)

$

$

Not available

19

Echo 90081000626

Bearing, Ball 626

$11.99

$

Usually ships in 2-4 days

0

20

Echo 61041040830

Housing, Gear
(Superseded to Discontinued)

$

$

Not available
