SRM-1501 - Echo String Trimmer (SN: 0039001 - 0083386) Gear Case Parts Diagram

String Trimmer

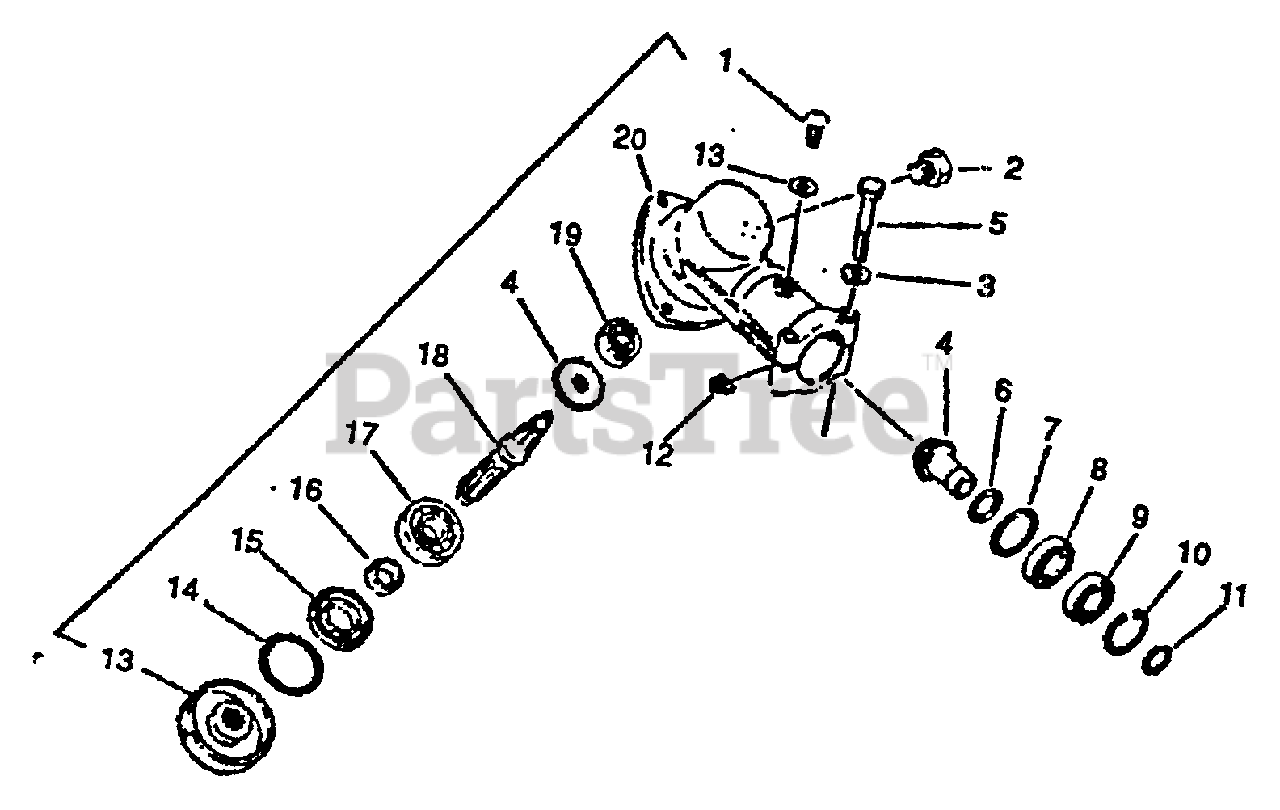

Gear Case Parts Diagram

  • Title

Echo 61040044630

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Includes Items 1-20

$

$

Not available

1

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

2

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

3

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030042330

GEAR SET

$

$

Not available

5

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

6

Echo 61031622830

WASHER

$0.99

$

In Stock, only 1 left!

0

7

Echo 61031722830

WASHER

$0.99

$

In Stock, Qty 5

0

8

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

9

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

10

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

11

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

12

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

13

Echo 61031344630

PLATE, ADAPTER - UPPER

$23.99

$

Usually ships in 2-4 days

0

14

Echo 90070200026

RING, SNAP 26

$2.49

$

In Stock, Qty 6

0

15

Echo 610413-22830

SEAL, OIL

$6.99

$

In Stock, only 1 left!

0

16

Echo 610315-22830

SPACER

$7.49

$

In Stock, only 2 left!

0

17

Echo 90080006000

BEARING, BALL 6000

$13.99

$

In Stock, only 2 left!

0

18

Echo 610310-40830

SHAFT, GEAR
(Superseded to Discontinued)

$

$

Not available

19

Echo 90081000626

BEARING, BALL 626

$13.99

$

In Stock, only 1 left!

0

20

Echo 61041040830

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available
