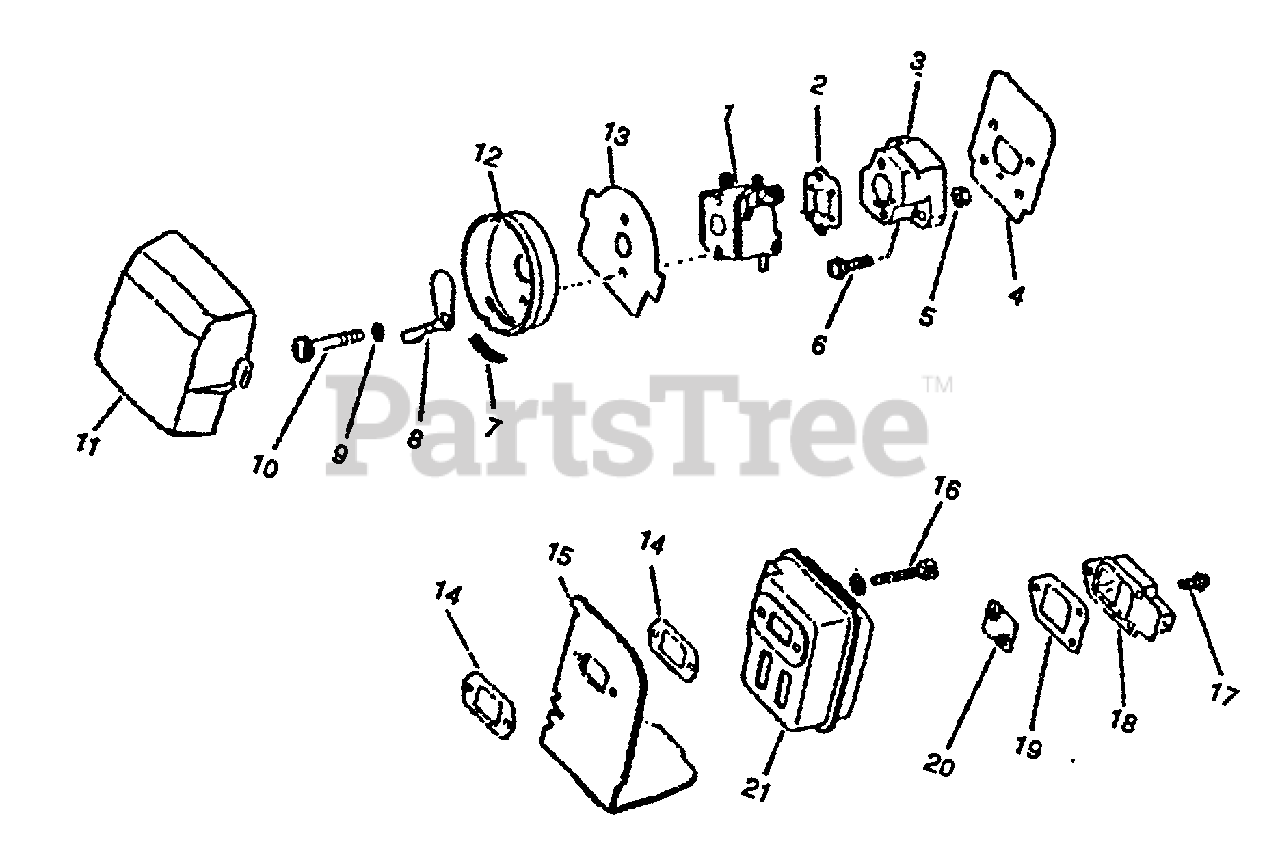

SRM-1501 - Echo String Trimmer (SN: 0039001 - 0083386) Intake, Exhaust Parts Diagram

String Trimmer

Intake, Exhaust Parts Diagram

  • Title

1

Echo 12520044730

CARBURETOR - C1U-K9
(Superseded to 12520044731)

$

$

Not available

2

Echo 130016-42031

GASKET, INTAKE

Note: Use Kit 88900042031

$1.49

$

In Stock, Qty 20+

0

3

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

4

Echo 13001042031

GASKET, INTAKE
(Superseded to 13001042032)

Note: Use Kit 88900042031

$2.99

$

In Stock, Qty 12

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

7

Echo 178810-42030

BUSHING

Note: Included in Item 12

$

$

Not available

8

Echo 17851542030

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

9

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

10

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

11

Echo 13031742030

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

12

Echo 130301-42030

CASE, AIR FILTER

Note: Includes Item 7

$8.49

$

In Stock, only 2 left!

0

13

Echo 130319-42030

PLATE, AIR FILTER

$2.99

$

Usually ships in 2-4 days

0

14

Echo 14551042031

GASKET, EXHAUST
(Superseded to V104000160)

Note: Use Kit 88900042031

$2.49

$

In Stock, Qty 20+

0

15

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$5.99

$

In Stock, only 2 left!

0

16

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

17

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

18

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

19

Echo 145866-42031

GASKET, EXHAUST

Note: Use Kit 88900042031

$2.99

$

In Stock, only 2 left!

0

20

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

21

Echo 14581044330

MUFFLER

$43.99

$

Usually ships in 2-4 days

0

22

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

Echo 14580047631

MUFFLER ASSY
(Superseded to 14580042031)

Note: Includes Items 14, 15, 17, 18, 19, 21

$55.99

$

In Stock, only 1 left!

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: See Maintenance Kits

$19.99

$

In Stock, only 2 left!

0
