SRM-1501 - Echo String Trimmer (SN: 0039001 - 0083386) Main Pipe, Support Handle, Throttle Control Parts Diagram

String Trimmer

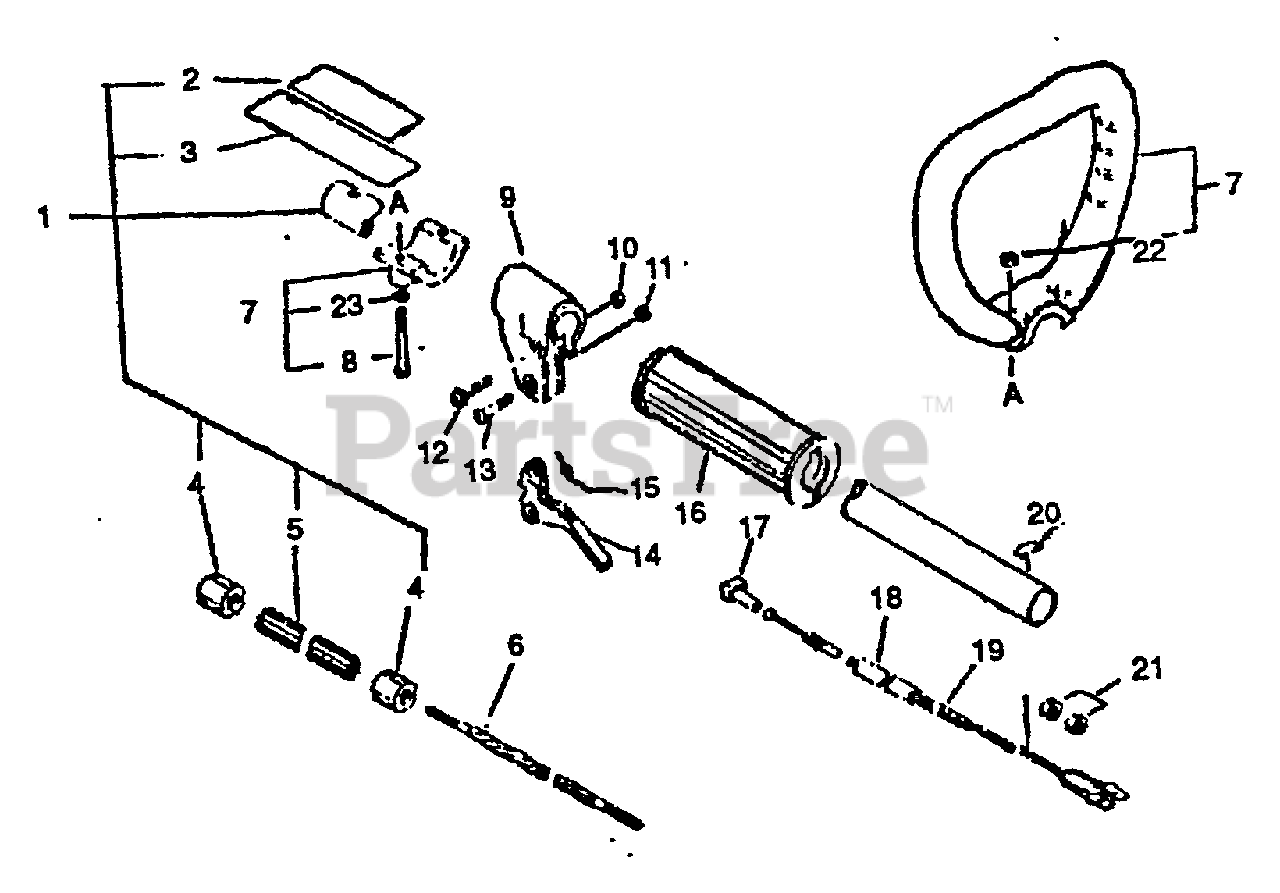

Main Pipe, Support Handle, Throttle Control Parts Diagram

  • Title

1

Echo 61060944630

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes Items 2-5

$

$

Not available

2

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$7.49

$

Usually ships in 2-4 days

0

3

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

5

Echo 61021744630

LINER - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

6

Echo 61001342330

DRIVESHAFT - FLEXIBLE
(Superseded to 61001351030)

$72.99

$

Usually ships in 2-4 days

0

7

Echo 351201-08930

LOOP HANDLE ASSY

Note: Includes Items 8, 22-23

$45.99

$

Usually ships in 2-4 days

0

8

Echo 900220-05040

SCREW 5×40

Note: Included in Item 7

$0.99

$

In Stock, Qty 8

0

9

Echo 17802448930

BRACKET, TRIGGER
(Superseded to 17802444630)

$

$

Not available

10

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

12

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

13

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

14

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.99

$

In Stock, Qty 20+

0

15

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

16

Echo 35101244730

GRIP
(Superseded to Discontinued)

$

$

Not available

17

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

18

Echo 178127-24030

PIPE

$0.99

$

In Stock, Qty 9

0

19

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

20

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

21

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

22

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

Note: Included in Item 7

$0.99

$

In Stock, Qty 20+

0

23

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: Included in Item 7

$0.99

$

In Stock, Qty 20+

0
