SRM-1501 - Echo String Trimmer (SN: 0083387 - 0135000) Carburetor Parts Diagram

String Trimmer

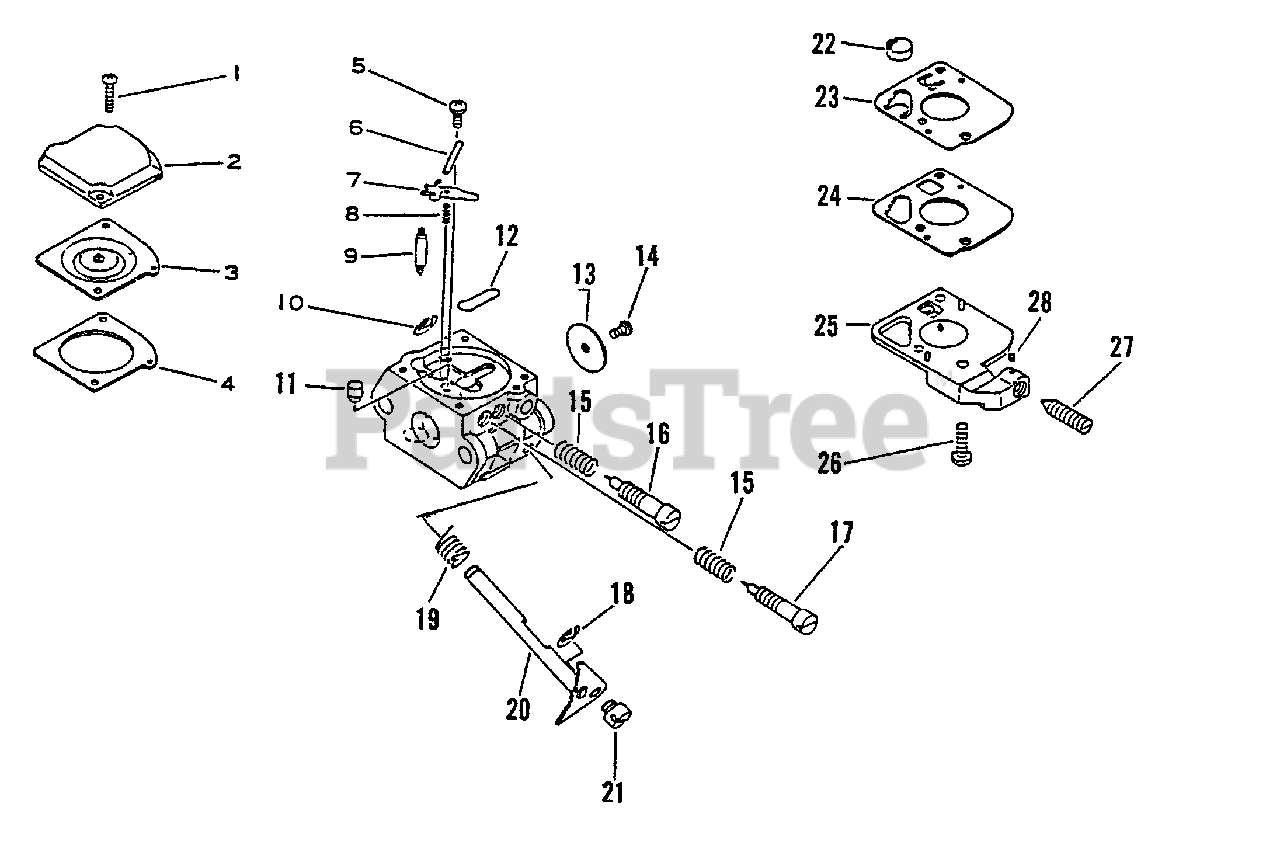

Carburetor Parts Diagram

  • Title

Echo 12520044730

CARBURETOR - C1U-K9
(Superseded to 12520044731)

$

$

Not available

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Use Kit 12530042030 or 12530342030

$

$

Not available

4

GASKET, METERING DIAPHRAGM

Note: Use Kit 12530042030 or 12530342030

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN

Note: Use Kit 12530042030

$

$

Not available

LEVER, METERING

Note: Use Kit 12530042030

$

$

Not available

8

SPRING, COIL

Note: Use Kit 12530042030

$

$

Not available

9

VALVE, NEEDLE

Note: Use Kit 12530042030

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

Echo 12537642030

NOZZLE, CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

12

PLUG, WELCH

Note: Use Kit 12530042030

$

$

Not available

13

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

14

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

15

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

16

Echo 125320-42030

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

17

Echo 125318-42030

NEEDLE, LOW SPEED
(Superseded to 12531851330)

$

$

Not available

18

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

19

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

20

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

21

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

22

STRAINER

Note: Use Kit 12530042030

$

$

Not available

23

DIAPHRAGM, FUEL PUMP

Note: Use Kit 12530042030 or 12530342030

$

$

Not available

GASKET, PUMP

Note: Use Kit 12530042030 or 12530342030

$

$

Not available

25

Echo 12532442030

COVER, PUMP

$9.49

$

Usually ships in 2-4 days

0

26

Echo 125310-42030

SCREW

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

28

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

Echo 12530042030

REBUILD KIT

$20.99

$

In Stock, only 2 left!

0

Echo 12530342030

GASKET / DIAPHRAGM KIT

$16.99

$

In Stock, only 2 left!

0
