SRM-1501 - Echo String Trimmer (SN: 0083387 - 0135000) Engine, Engine Cover, Fan Case Parts Diagram

String Trimmer

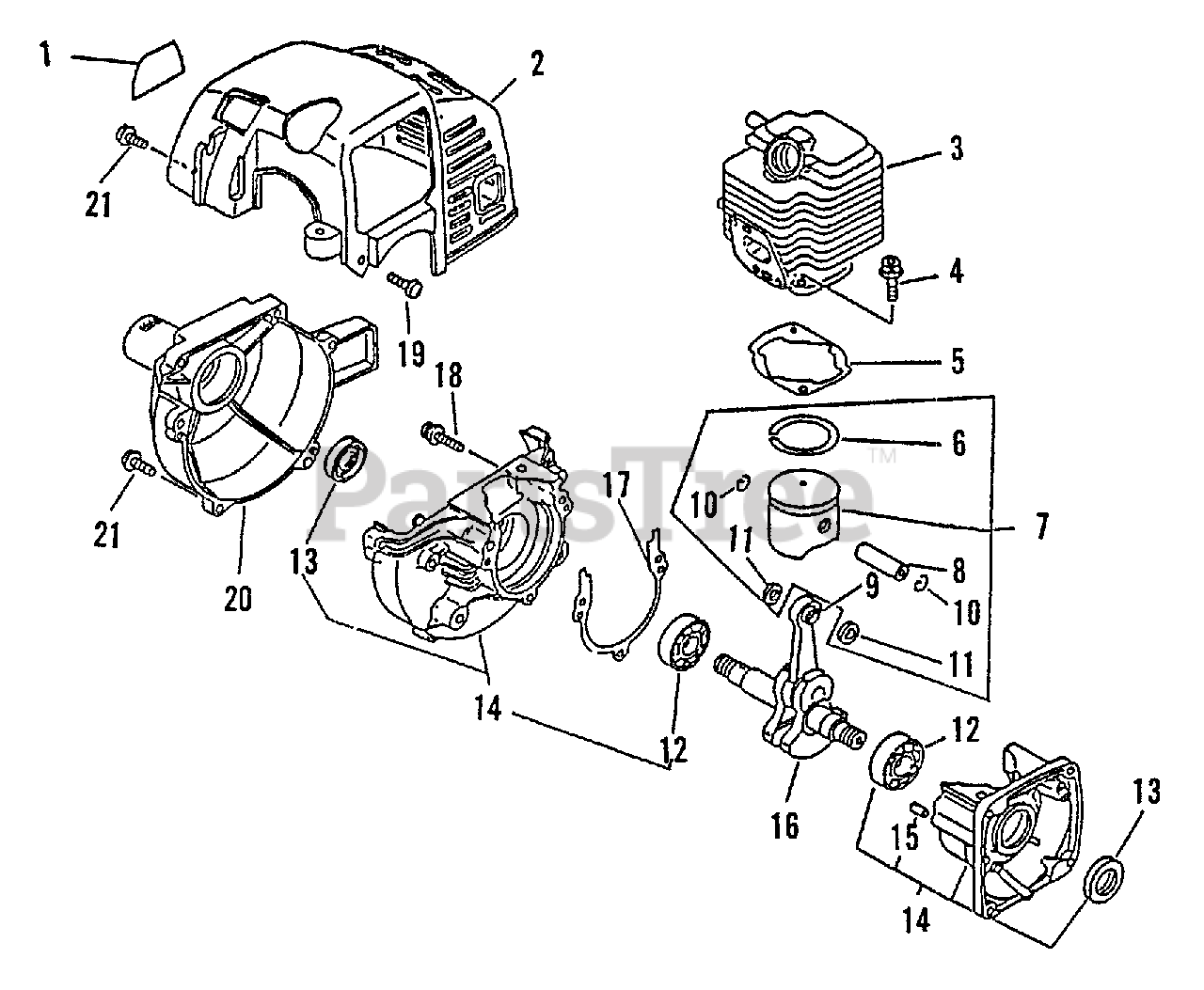

Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 89011248930

LABEL, MODEL

$5.99

$

Usually ships in 2-4 days

0

2

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$23.99

$

In Stock, only 1 left!

0

3

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

4

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

5

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: Use Kit 88900042031

$4.99

$

In Stock, Qty 7

0

6

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

7

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes Items 6, 8, 10, 11

$78.99

$

Usually ships in 2-4 days

0

8

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

9

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

10

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

11

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

12

Echo 90081036201

BEARING, BALL 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

13

Echo 10021242030

SEAL, OIL 12
(Superseded to 10021242031)

$7.99

$

In Stock, Qty 20+

0

14

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes Items 12, 13, 15

$157.99

$

Usually ships in 2-4 days

0

15

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

16

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

Note: Includes Item 9

$186.99

$

Usually ships in 2-4 days

0

17

GASKET, CRANKCASE

Note: Use Kit 88900042031

$

$

Not available

18

Echo 90023805028

SCREW 5×28

$0.99

$

Usually ships in 2-4 days

0

19

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

20

Echo 10153548930

COVER, FAN

$

$

Not available

21

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: See Maintenance Kits

$19.99

$

In Stock, only 2 left!

0
