SRM-1501 - Echo String Trimmer (SN: 0083387 - 0135000) Gear Case Parts Diagram

String Trimmer

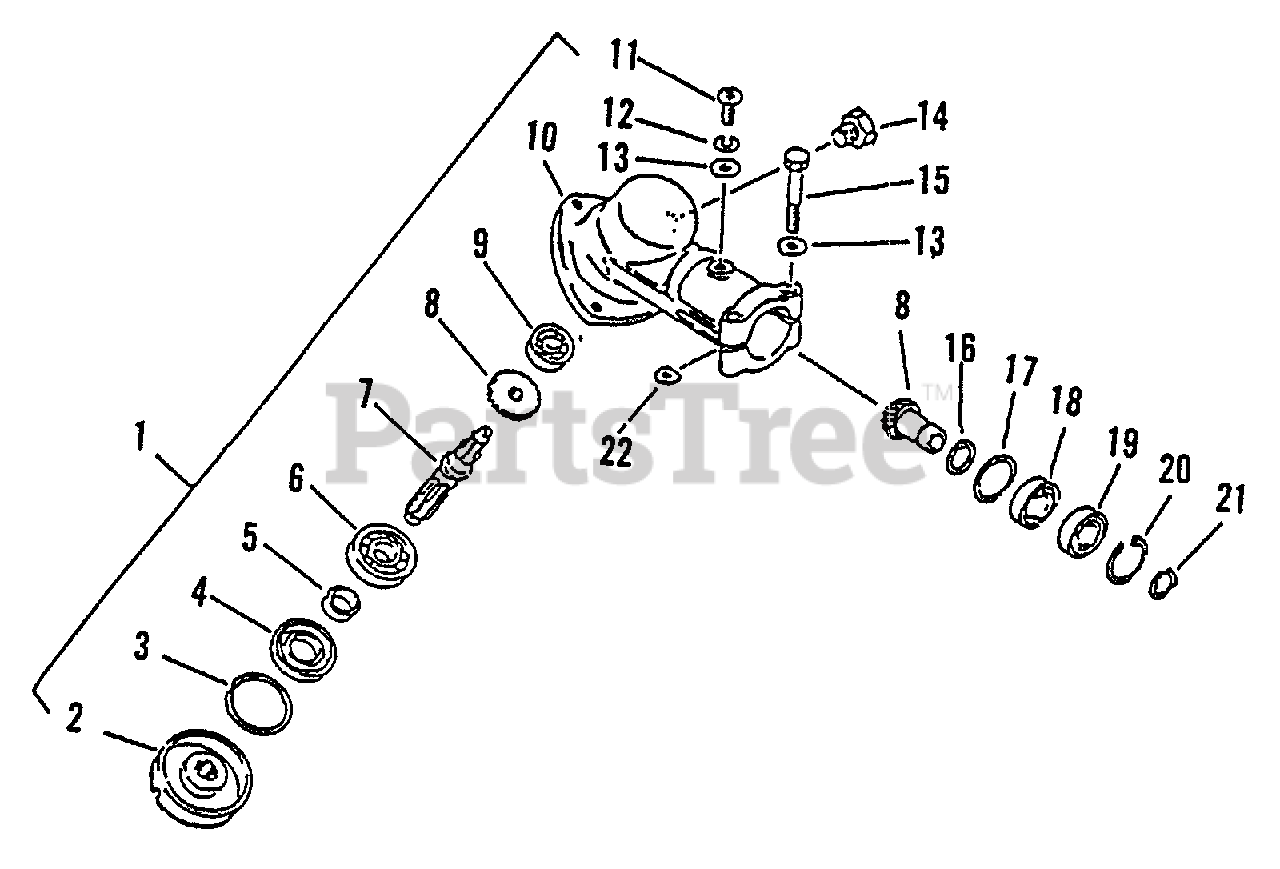

Gear Case Parts Diagram

  • Title

1

Echo 61040247731

Housing Ast, Gear
(Superseded to 61040247732)

Note: Includes Items 2-22

$98.99

$

Usually ships in 2-4 days

0

2

Echo 61031347731

Plate, Adapter (U)

$14.99

$

In Stock, only 1 left!

0

3

Echo 90070200032

Circlip 32

$2.49

$

In Stock, only 2 left!

0

4

Echo 61041322830

Oilseal

$6.99

$

In Stock, only 2 left!

0

5

Echo 61031522830

Spacer

$7.49

$

Usually ships in 2-4 days

0

6

Echo 90081006201

Bearing, Ball 6201

$8.49

$

In Stock, only 2 left!

0

7

Echo 61036008931

Shaft, P.T.O
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

8

Echo 61030044830

Gear set, Bevel

$106.99

$

Usually ships in 2-4 days

0

9

Echo 90080000609

Bearing, Ball 609

$11.99

$

In Stock, Qty 5

0

10

Echo 61041040830

Housing, Gear
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024205010

Screw 5x10

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060500005

Washer, Spring 5

$0.99

$

In Stock, Qty 7

0

13

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 90010008008

Bolt 8x8

$0.99

$

In Stock, Qty 10

0

15

Echo 90010005035

Bolt 5x35

$0.99

$

In Stock, Qty 9

0

16

Echo 61031622830

Washer, Adjustment

$0.99

$

In Stock, only 1 left!

0

17

Echo 61031722830

Washer, Adjustment

$0.99

$

In Stock, Qty 5

0

18

Echo 90085506900

Bearing, Ball 6900

$21.99

$

In Stock, only 2 left!

0

19

Echo 90085806900

Bearing, Ball 6900

$27.99

$

In Stock, only 2 left!

0

20

Echo 90070200022

Circlip 22

$2.49

$

In Stock, Qty 14

0

21

Echo 90070600012

Circlip 12

$1.49

$

In Stock, Qty 20+

0

22

Echo 61023904130

Washer, Shim

$0.99

$

In Stock, Qty 20+

0
