SRM-1501 - Echo String Trimmer (SN: 0083387 - 0135000) Gear Case Parts Diagram

String Trimmer

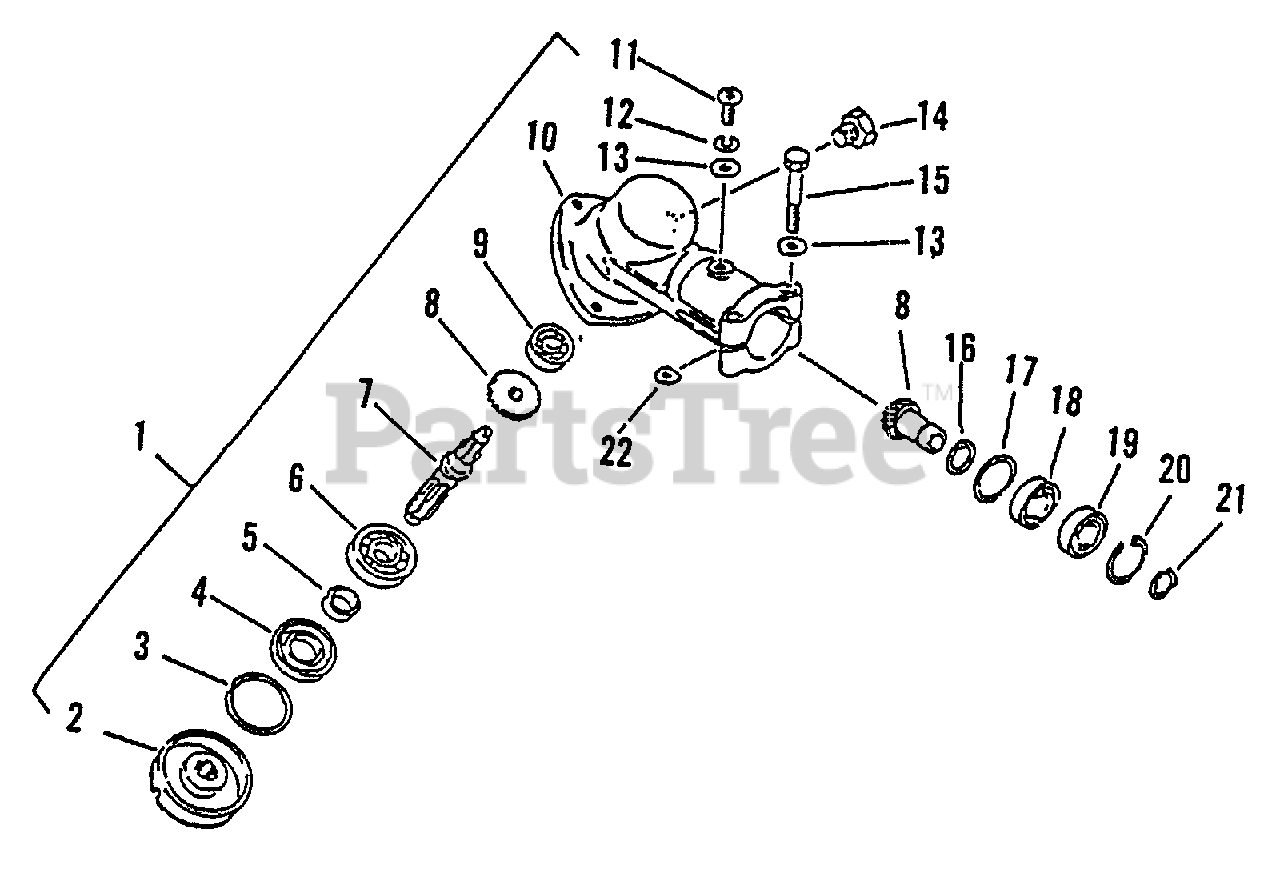

Gear Case Parts Diagram

  • Title

1

Echo 61040247731

GEAR CASE ASSY
(Superseded to 61040247732)

Note: Includes Items 2-22

$98.99

$

Usually ships in 2-4 days

0

2

Echo 61031347731

PLATE, ADAPTOR - UPPER

$14.99

$

In Stock, only 2 left!

0

3

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

4

Echo 610413-22830

SEAL, OIL

$6.99

$

In Stock, only 1 left!

0

5

Echo 610315-22830

SPACER

$7.49

$

In Stock, only 2 left!

0

6

Echo 90081006201

BEARING, BALL 6201

$8.49

$

In Stock, only 2 left!

0

7

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

8

Echo 61030044830

GEAR SET

$106.99

$

Usually ships in 2-4 days

0

9

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

10

Echo 61041040830

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

11

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

12

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

13

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

15

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

16

Echo 61031622830

WASHER

$0.99

$

In Stock, only 1 left!

0

17

Echo 61031722830

WASHER

$0.99

$

In Stock, Qty 5

0

18

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

19

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

20

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

21

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

22

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0
